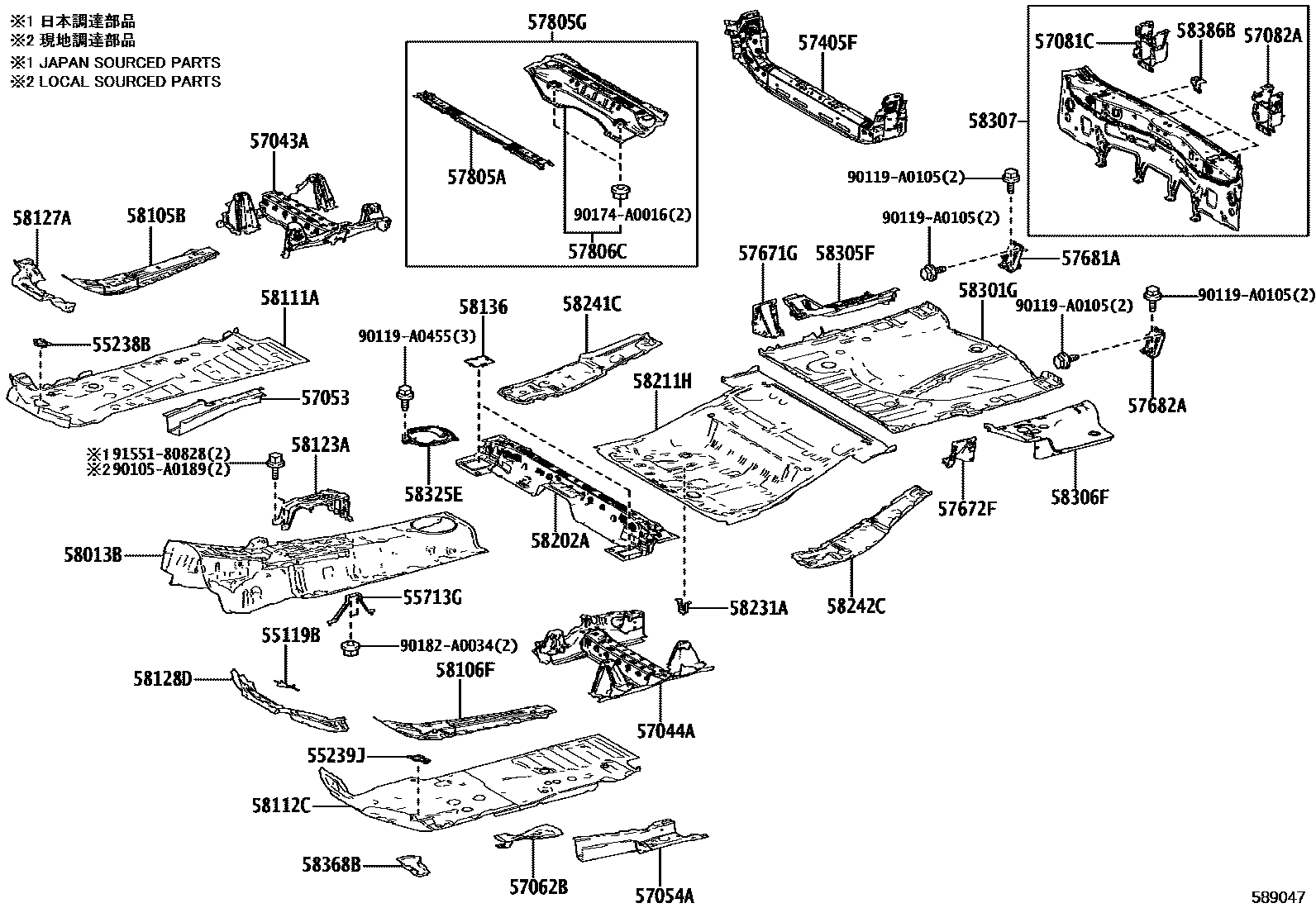

Toyota GRAND HIGHLANDER — FLOOR PAN & LOWER BACK PANEL
55119BEXTENSION, DASH PANEL, LH
55238BPLATE, DASH PANEL INSULATOR, LOWER RH
55239JPLATE, DASH PANEL INSULATOR, LOWER LH
55713GBRACKET, FRONT LOWER PANEL
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57062BBRACKET SUB-ASSY, FUEL TANK SUPPORT, LH
57081CBRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, RH
57082ABRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
57405FMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR
57671GMEMBER, REAR FLOOR CROSS, NO.1 RH
57672FMEMBER, REAR FLOOR CROSS, NO.1 LH
57681ABRACE, REAR FLOOR NO.2 CROSSMEMBER, OUTER
57682ABRACE, REAR FLOOR NO.2 CROSSMEMBER, OUTER LH
57805AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.1
57805GREINFORCE SUB-ASSY, NO.1 SEAT LEG, SET
57806CREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2
58013BPANEL SUB-ASSY, FRONT FLOOR, CENTER
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58106FBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58123ASUPPORT, SHIFT & SELECT LEVER
58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH
58136COVER, FRONT FLOOR HOLE
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58211HPAN, CENTER FLOOR
58231ABRACKET, CENTER FLOOR HEAT INSULATOR, NO.1
58241CPANEL, FLOOR SIDE, RH
58242CPANEL, FLOOR SIDE, LH
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58368BBRACKET, FUEL TUBE, NO.2
58386BBRACKET, REAR BUMPER COVER, NO.2
90105A0189
main90105-A0189
90119A0105
main90119-A0105
90119A0455
main90119-A0455
90174A0016
main90174-A0016
90182A0034
main90182-A0034
9155180828
46 parts on this diagram · 4 diagrams in section
