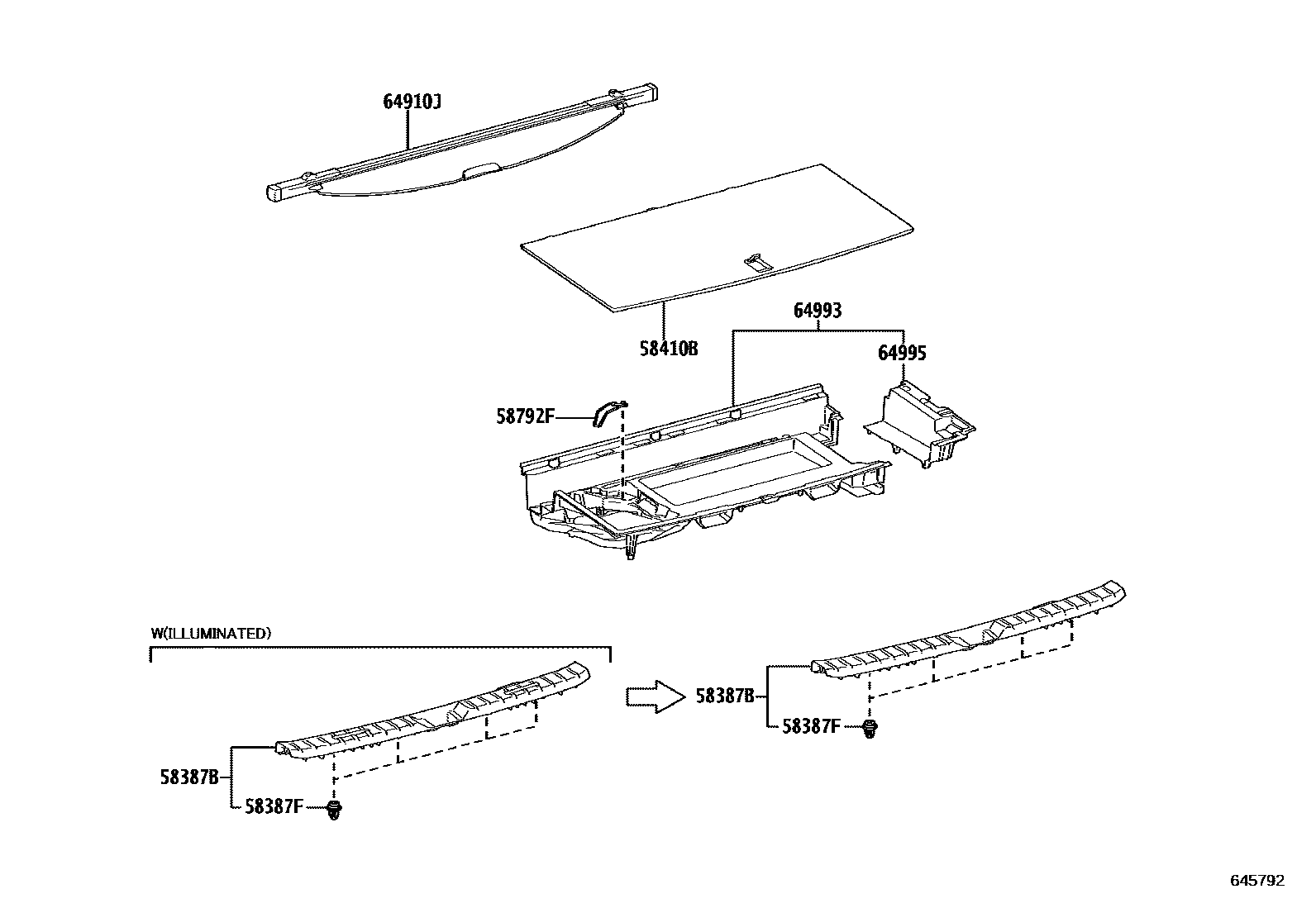

Toyota GRAND HIGHLANDER — DECK BOARD & DECK TRIM COVER

0001 1DECK BOARD, TONNEAU COVER 0002 1DECK TRIM COVER 0003 1DECK TRIM COVER

58387BPLATE, REAR FLOOR FINISH

main58387-0E170-C0iAASH1#,TASA1#..G,M,N202306

BLACK,TRIM1#,2#

main58387-0E170-C0iAASH1#,TASA1#..G,M,N202306

BLACK,TRIM1#,2#,4#

main58387-0E170-C0iAASH1#,TASA1#..G,M,N202306

DOOR INNER GARNISH-REAR FLOOR FINISH PLATE:W(ILLUMINATED),BLACK,TRIM1#,2#

main58387-0E170-C0iAASH1#,TASA1#..G,M,N202306

DOOR INNER GARNISH-REAR FLOOR FINISH PLATE:W(ILLUMINATED),BLACK,TRIM1#,2#,4#

58387FCLIP, REAR FLOOR FINISH PLATE

main62489-06010iAASH1#,TASA1#,TASH15202306

DOOR INNER GARNISH-REAR FLOOR FINISH PLATE:W(ILLUMINATED)

58410BBOARD ASSY, DECK

main58410-0E200-C0iAASH1#,TASA1#..G,M,N202306

BLACK,TRIM1#,2#

main58410-0E200-C0iAASH1#,TASA1#..G,M,N202306

BLACK,TRIM1#,2#,4#

58792FSUPPORT, JACK CARRIER

main58792-0E040iAASH1#,TASA1#,TASH15202306

64910JCOVER ASSY, TONNEAU

main64910-0E160iAASH1#,TASA1#,TASH15..G,V,Z202306

TONNEAU COVER-WITH

64993BOX, DECK FLOOR, REAR

main64993-0E260iAASH1#,TASA1#,TASH15202306

64995BOX, DECK FLOOR, RH

main64995-0E050iAASH1#,TASA1#,TASH15202306

7 parts on this diagram · 3 diagrams in section
