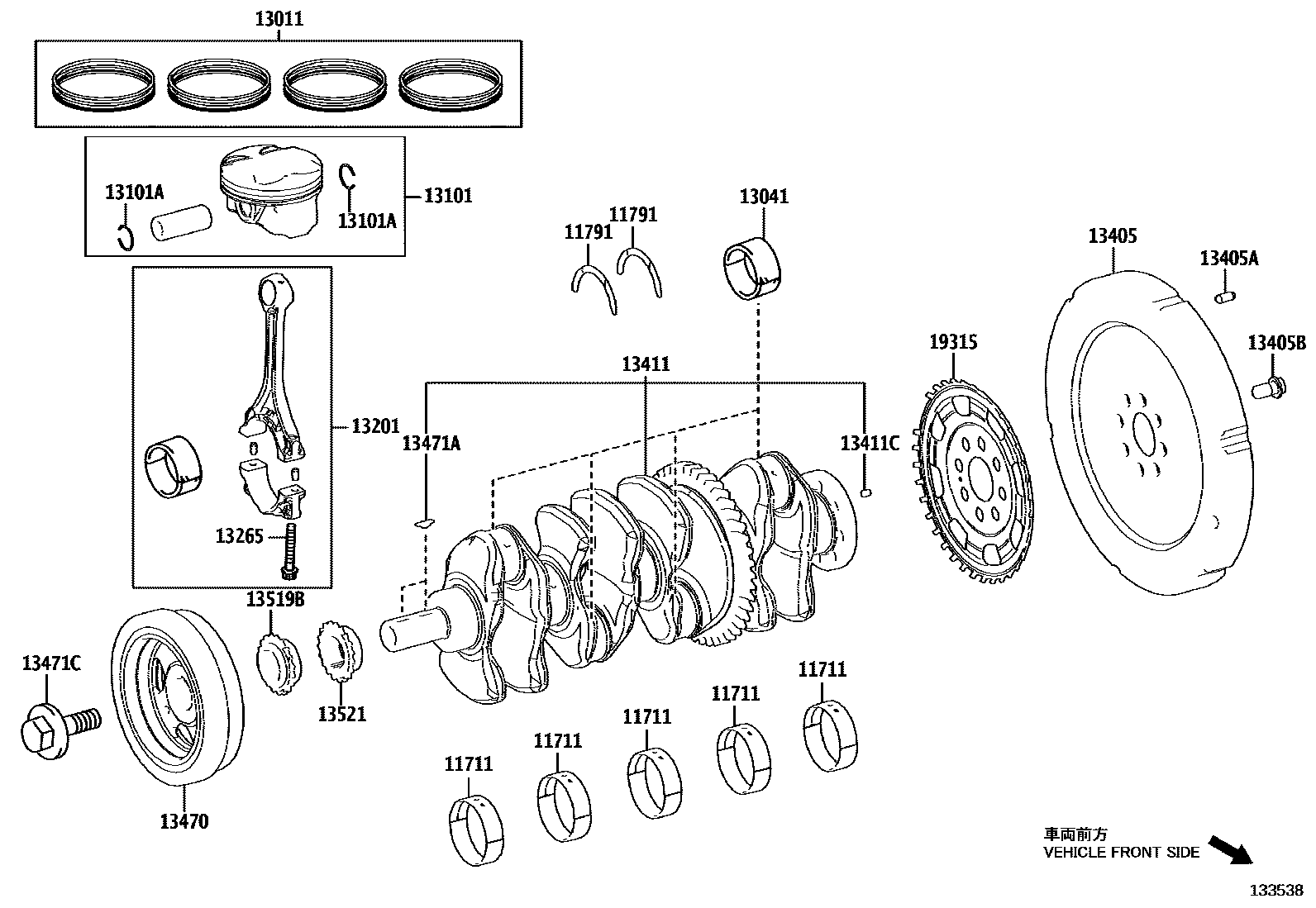

Toyota GRAND HIGHLANDER — CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK 1,(J),NO.1 REFER R/M
MARK 2,(J),NO.1 REFER R/M
MARK 3,(J),NO.1 REFER R/M
MARK 4,(J),NO.1 REFER R/M
MARK 1,(J),NO.2 REFER R/M
MARK 2,(J),NO.2 REFER R/M
MARK 3,(J),NO.2 REFER R/M
MARK 4,(J),NO.2 REFER R/M
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 1,(L),NO.1 REFER R/M
MARK 2,(L),NO.1 REFER R/M
MARK 3,(L),NO.1 REFER R/M
MARK 4,(L),NO.1 REFER R/M
MARK 1,(L),NO.2 REFER R/M
MARK 2,(L),NO.2 REFER R/M
MARK 3,(L),NO.2 REFER R/M
MARK 4,(L),NO.2 REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,(J)
STD,(L)
STD
13011RING SET, PISTON
STD,(J)
STD
STD,(L)
13041BEARING, CONNECTING ROD
MARK 1,(J),REFER R/M
MARK 2,(J),REFER R/M
MARK 3,(J),REFER R/M
MARK 1
MARK 2
MARK 3
MARK 1,(L),REFER R/M
MARK 2,(L),REFER R/M
MARK 3,(L),REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD,(J)
STD,(J)
STD,(L)
STD,(L)
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
MARK A
MARK B
MARK C
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13265BOLT, CONNECTING ROD
(J)
(L)
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
(J)
(L)
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
13470PULLEY ASSY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
(J)
(L)
13519BSPROCKET, OIL PUMP DRIVE
(J)
(L)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(J)
(L)
19315PLATE, CRANK ANGLE SENSOR, NO.1
(J)
(L)
19 parts on this diagram · 3 diagrams in section
