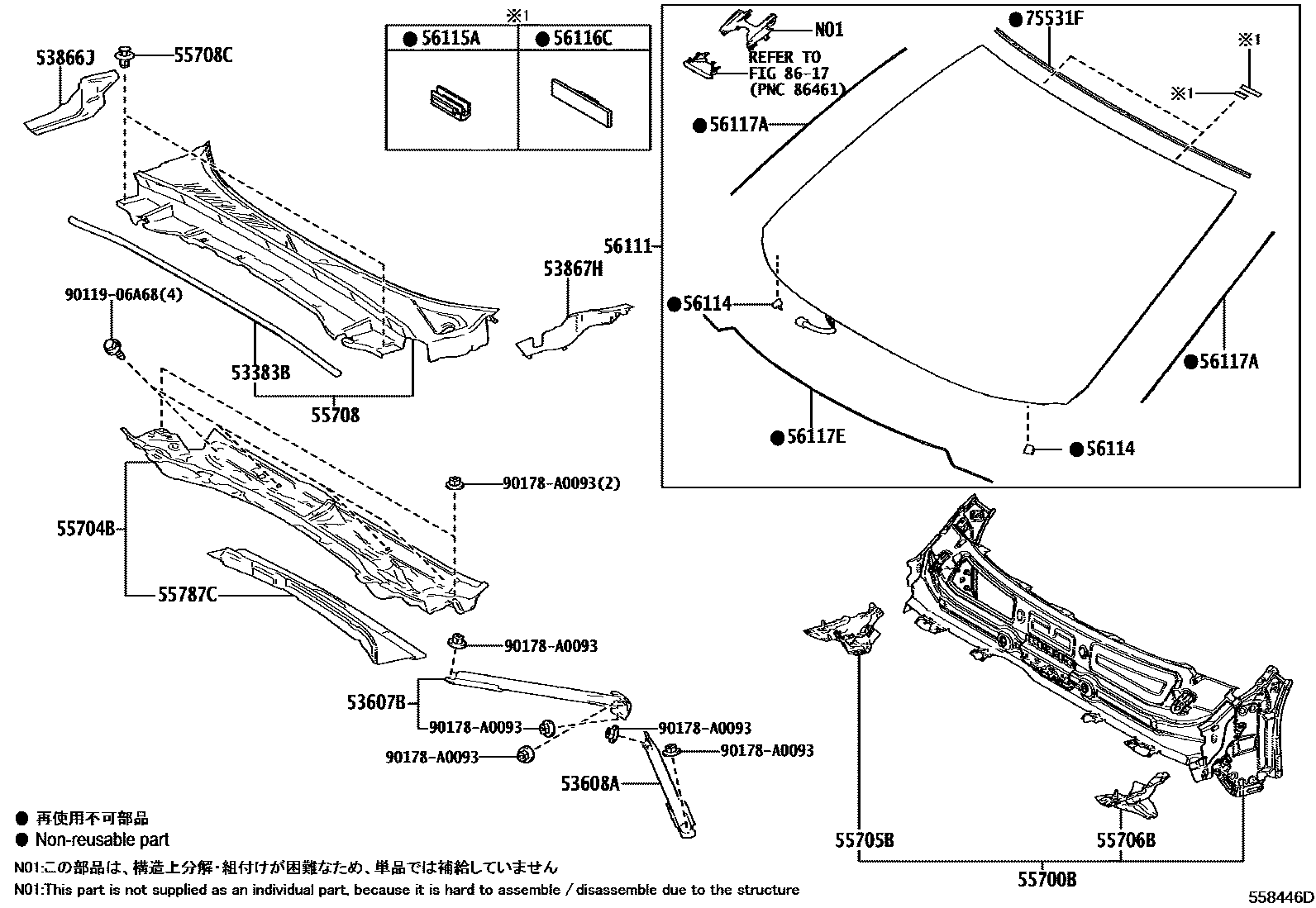

Toyota GRAND HIGHLANDER — COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-0E140iAASH1#,TASA1#,TASH15202306

53607BBRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, RH

main53607-0E010iAASH1#,TASA1#,TASH15¥9,300202306

53608ABRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, LH

main53608-0E010iAASH1#,TASA1#,TASH15¥8,000202306

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0E140iAASH1#,TASA1#,TASH15202306

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0E140iAASH1#,TASA1#,TASH15202306

55700BCOWL ASSY

main55700-0E160iAASH1#,TASA1#,TASH15202306

55704BPANEL SUB-ASSY, COWL VENTILATOR

main55704-0E060iAASH1#202306

main55704-0E080iTASA1#,TASH15202306

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0E120iAASH1#,TASA1#,TASH15¥1,750202306

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0E120iAASH1#,TASA1#,TASH15¥1,750202306

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0E270iAASH1#,TASA1#,TASH15202306

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-A0035iAASH1#,TASA1#,TASH15202306

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-0E160iAASH1#202306

56111GLASS, WINDSHIELD

main56101-0EC70iAASH1#,TASA1#..M,N202306

main56101-0EC90iAASH1#,TASA1#,TASH15..G,V202306

main56101-0ED10iTASA15,TASH15..Z202306

56114RETAINER, WINDSHIELD GLASS

main56114-48010iAASH1#,TASA1#,TASH15¥200202306-202409

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iAASH1#,TASA1#,TASH15¥130202306

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAASH1#,TASA1#,TASH15¥120202306

56117ADAM, WINDOW GLASS ADHESIVE

main90998-91004iAASH1#,TASA1#,TASH15¥930202306

*D,L=668

56117EDAM, WINDOW GLASS ADHESIVE

main90998-91004iAASH1#,TASA1#,TASH15¥930202306

*D,L=1537

75531FMOULDING, WINDSHIELD, OUTSIDE UPPER

main75531-0E140iAASH1#,TASA1#,TASH15202306

8617

9011906A68

main90119-06A68¥80

90178A0093

main90178-A0093

22 parts on this diagram · 2 diagrams in section
