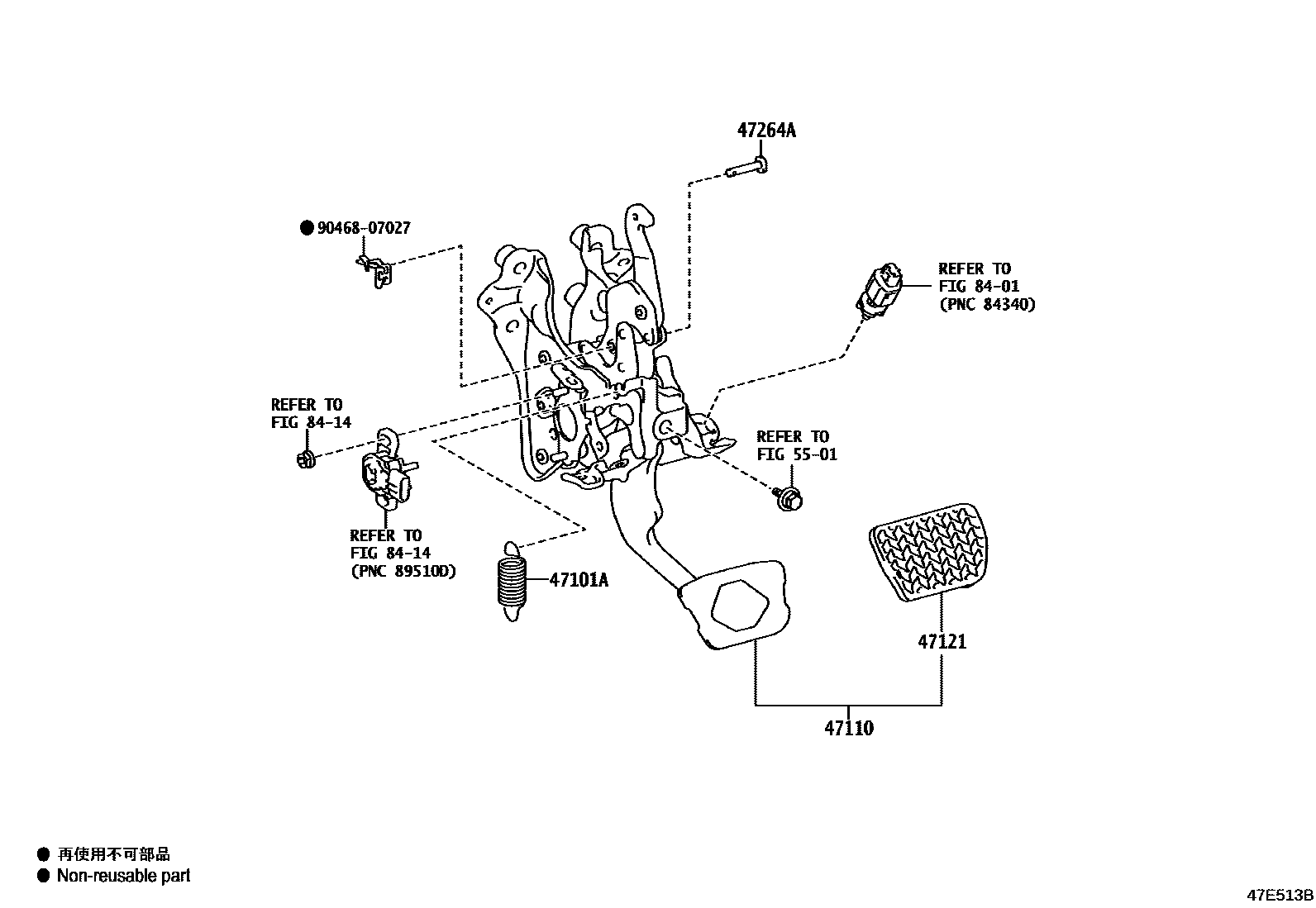

Toyota GRAND HIGHLANDER — BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iTASA1#¥120202306

main90507-19008iAASH1#,TASH15202306

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0E240iTASA1#202306

main47110-0E250iAASH1#,TASH15202306

47121PAD, BRAKE PEDAL

main47121-62010iAASH1#,TASA1#,TASH15¥520202306

47264APIN(FOR PUSH ROD)

main90240-06028iTASA1#¥90202306

main90240-08078iAASH1#,TASH15¥120202306

5501

8401

8414

9046807027

main90468-07027¥60

8 parts on this diagram · 2 diagrams in section
