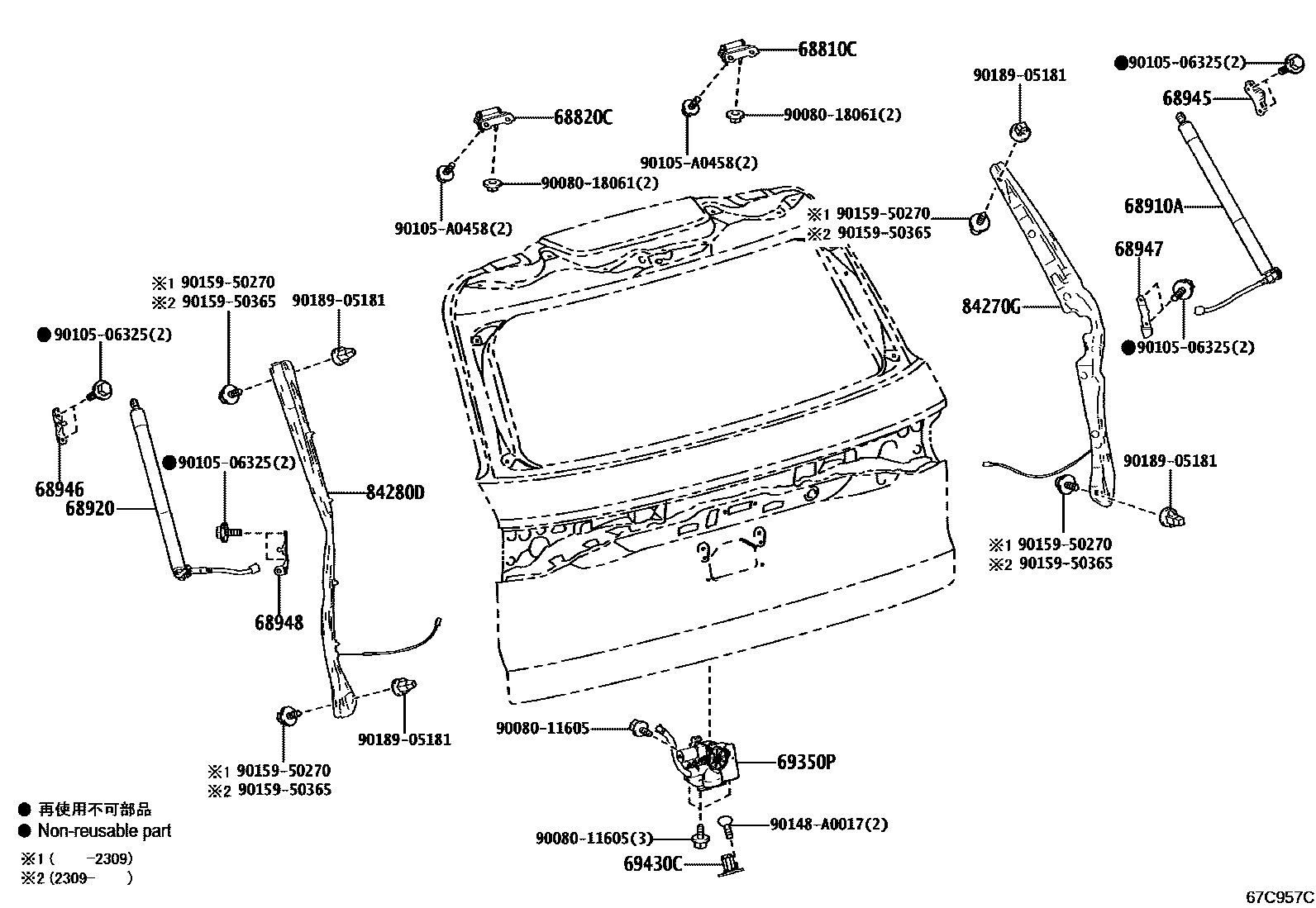

Toyota GRAND HIGHLANDER — BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-F6010iAASH1#,TASA1#,TASH15202306

68820CHINGE ASSY, BACK DOOR, LH

main68810-F6010iAASH1#,TASA1#,TASH15202306

68910AUNIT ASSY SET, POWER BACK DOOR, RH

main68910-0E170iAASH1#,TASA1#,TASH15202306

68920UNIT ASSY SET, POWER BACK DOOR, LH

main68920-0E110iAASH1#,TASA1#,TASH15202306

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-0E200iAASH1#,TASA1#,TASH15202306

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-0E180iAASH1#,TASA1#,TASH15202306

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-0E120iAASH1#,TASA1#,TASH15202306

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-0E120iAASH1#,TASA1#,TASH15202306

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0R020iAASH1#,TASA1#,TASH15202306

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0E070iAASH1#,TASA1#,TASH15202306

84270GSENSOR ASSY, POWER BACK DOOR, RH

main84270-0E130iAASH1#,TASA1#,TASH15202306

84280DSENSOR ASSY, POWER BACK DOOR, LH

main84280-0E120iAASH1#,TASA1#,TASH15202306

9008011605

main90080-11605¥60

9008018061

main90080-18061

9010506325

main90105-06325¥80

90105A0458

main90105-A0458

90148A0017

main90148-A0017

9015950270

main90159-50270¥70

9015950365

main90159-50365¥60

9018905181

main90189-05181¥70

20 parts on this diagram · 1 diagram in section
