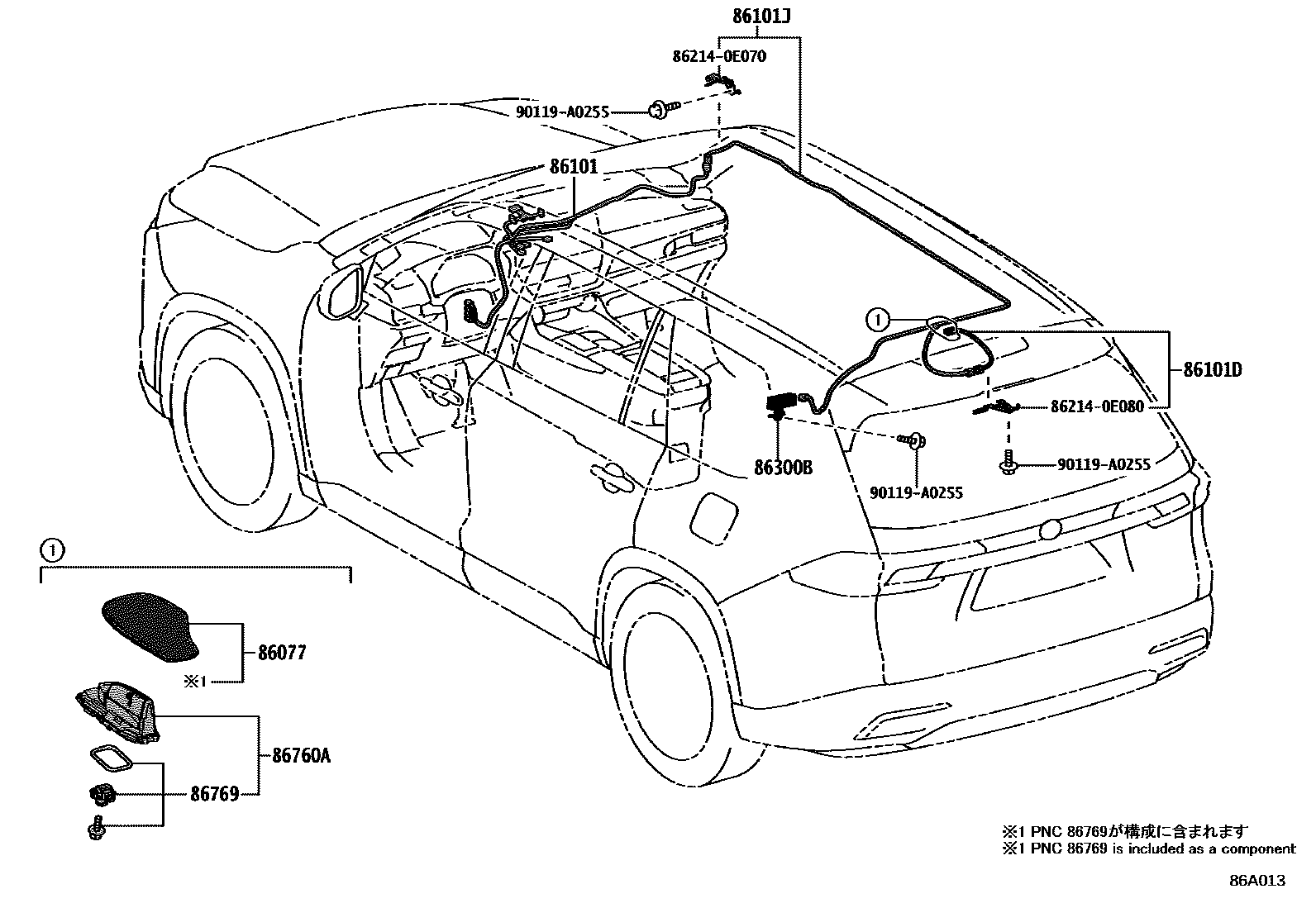

Toyota GRAND HIGHLANDER — ANTENNA

86077COVER KIT, ANTENNA

main86077-12060-A2iAASH1#,TASA1#,TASH15202306

PLATINUM WHITE PEARL MC.,089

main86077-12060-B6iTASH15202306

CEMENT GRAY ME.,1H5

main86077-12060-C2iAASH15..G202306

ATTITUDE BLACK MC.,218

main86077-12060-C2iAASH15..M,N;AASH10,TASA1#,TASH15202306

ATTITUDE BLACK MC.,089 ,1H5 ,218

main86077-12060-D2iAASH1#,TASA1#,TASH15202306

RED MC.,3T3

main86077-12060-J2iAASH1#,TASA1#,TASH15202306

DK. BLUE MC.,8X8

main86077-12060-P0iAASH1#,TASA1#,TASH15202306

1J9

main86077-48030-A2iAASH1#,TASA1#,TASH15202306-202409

CREAM MC.,092

sub86077-12060¥1,960

main86077-48030-B5iAASH1#,TASA1#,TASH15202306

MASSIVE GRAY,1L6

sub86077-12060¥1,960

main86077-48030-B7iAASH1#,TASA1#,TASH15..G,V,Z202312

PRECIOUS METAL,1L5

sub86077-12060¥1,960

86101CORD SUB-ASSY, ANTENNA

main86101-0EB10iAASH1#,TASA1#,TASH15202306

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-0EV30iAASH1#,TASA1#,TASH15202306

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0EF30iAASH1#,TASA1#,TASH15202306

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-0E090iAASH1#,TASA1#,TASH15202306

86760AANTENNA ASSY, TELEPHONE

main86760-0A020iAASH1#,TASA1#,TASH15202306

86769HOUSING, ROOF ANTENNA

main86769-04010iAASH1#,TASA1#,TASH15202306

862140E070BRACKET, RADIO, NO.4

main86214-0E070¥300

862140E080BRACKET, RADIO, NO.4

main86214-0E080

90119A0255

main90119-A0255

10 parts on this diagram · 1 diagram in section
