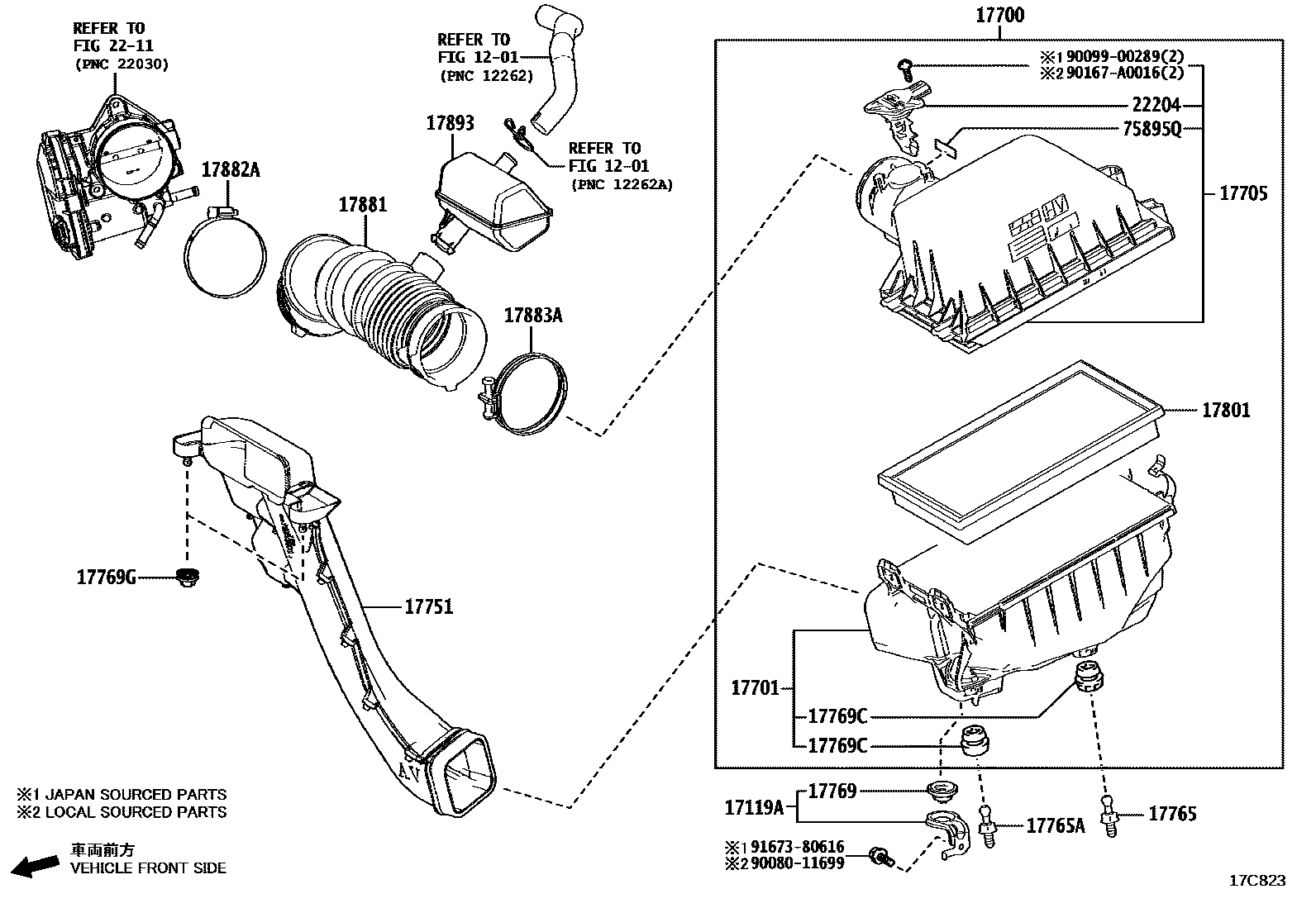

Toyota GRAND HIGHLANDER — AIR CLEANER
1201
17119ABRACKET, AIR CLEANER
17700CLEANER ASSY, AIR
17701CASE SUB-ASSY, AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17751INLET, AIR CLEANER, NO.1
17765STAY, AIR CLEANER, NO.1
17765ASTAY, AIR CLEANER, NO.1
17769SUPPORT, AIR CLEANER
17769CSUPPORT, AIR CLEANER, NO.1
17769GSUPPORT, AIR CLEANER, NO.3
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
(J)
(J)
(J)
(L)
(L)
(L)
17881HOSE, AIR CLEANER, NO.1
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)
17893RESONATOR, INTAKE AIR
2211
22204METER SUB-ASSY, INTAKE AIR FLOW
75895QTAPE, MOULDING, NO.1
9008011699
9009900289
90167A0016
main90167-A0016
9167380616
23 parts on this diagram · 5 diagrams in section
