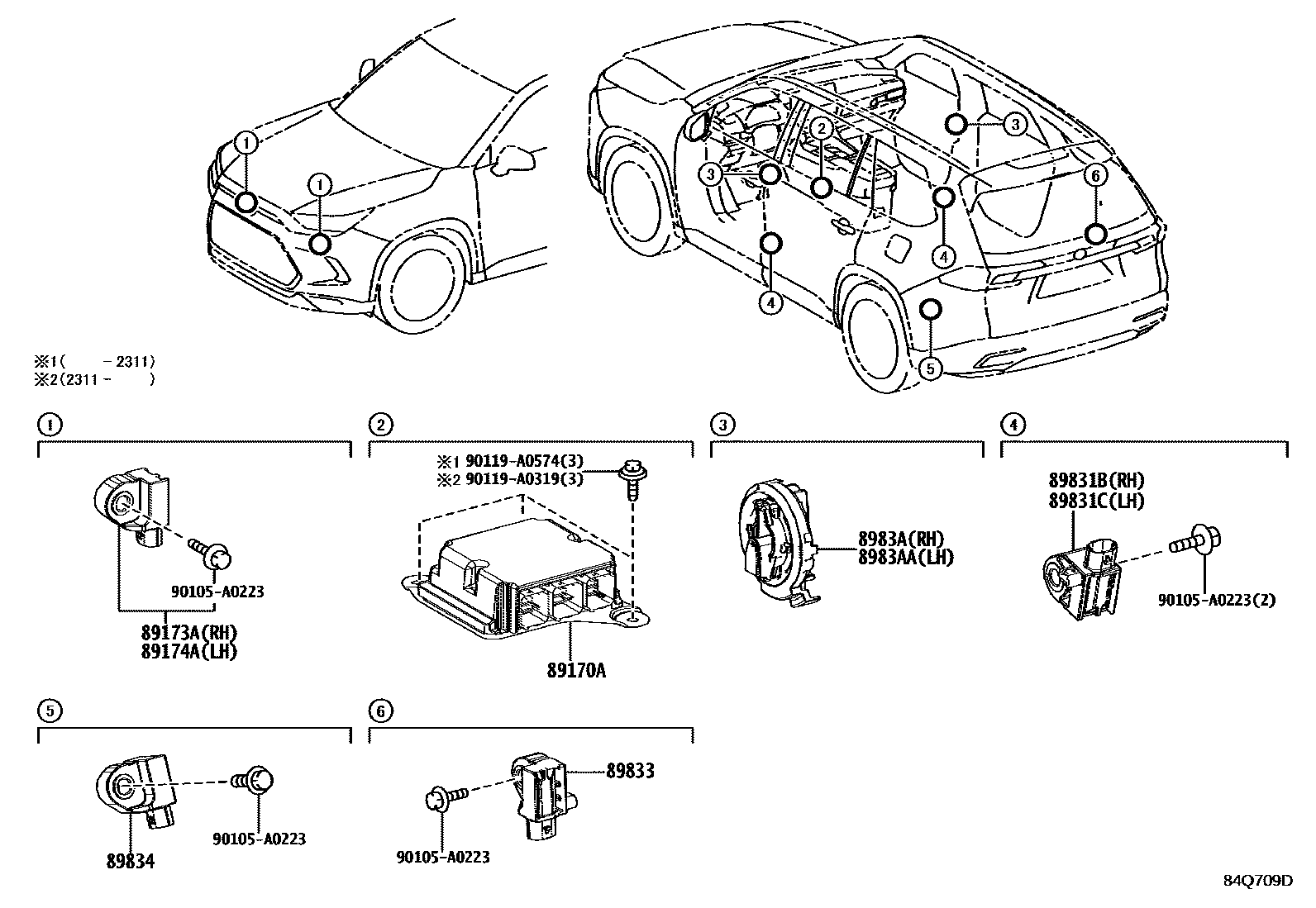

Toyota GRAND HIGHLANDER — AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-0E480iAASH1#,TASA1#..N202306-202311

*614

main89170-0E720iAASH1#,TASA1#,TASH15..G,M,V,Z202306-202311

*614

main89170-0E730iTASA1#..N202311

*614

main89170-0E740iTASA1#..G,M,Z202311

*614

main89170-0E750iAASH1#..N202311

*614

main89170-0E760iAASH1#,TASH15..G,M,V,Z202311

*614

89173ASENSOR, AIRBAG, FRONT RH

main89173-04040iAASH1#,TASA1#,TASH15202311

main89173-F9020iAASH1#,TASA1#,TASH15202306-202311

89174ASENSOR, AIRBAG, FRONT LH

main89173-04040iAASH1#,TASA1#,TASH15202311

main89173-F9020iAASH1#,TASA1#,TASH15202306-202311

89831BSENSOR, SIDE AIRBAG, RH, NO.2

main89831-0E230iAASH1#,TASA1#,TASH15202311

main89831-F6010iAASH1#,TASA1#,TASH15202306-202311

89831CSENSOR, SIDE AIRBAG, LH, NO.2

main89831-0E230iAASH1#,TASA1#,TASH15202311

main89831-F6010iAASH1#,TASA1#,TASH15202306-202311

89833SENSOR, AIRBAG, REAR RH

main89831-04050iAASH1#,TASA1#,TASH15202311

main89831-F6010iAASH1#,TASA1#,TASH15202306-202311

89834SENSOR, AIRBAG, REAR LH

main89831-0E180iAASH1#,TASA1#,TASH15202311

main89831-F6010iAASH1#,TASA1#,TASH15202306-202311

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-04010iAASH1#,TASA1#,TASH15202311

main8983A-0E050iAASH1#,TASA1#,TASH15202306-202311

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-04010iAASH1#,TASA1#,TASH15202311

main8983A-0E050iAASH1#,TASA1#,TASH15202306-202311

90105A0223

main90105-A0223

90119A0319

main90119-A0319

90119A0574

main90119-A0574

12 parts on this diagram · 1 diagram in section
