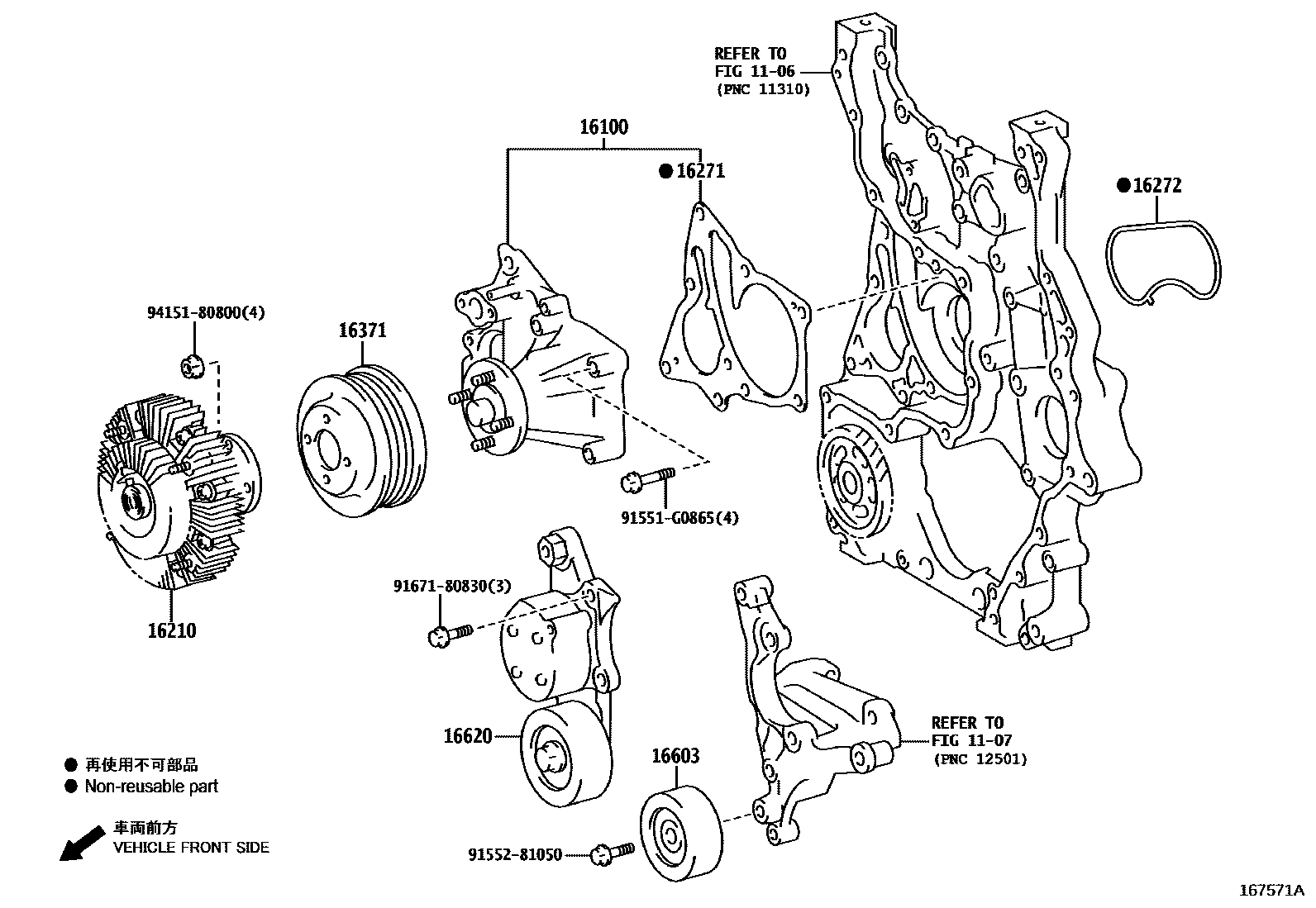

Toyota GRANACE — WATER PUMP

1106

1107

16100PUMP ASSY, ENGINE WATER

main16100-19375i1GDFTV..GDH303¥13,000201912

16210COUPLING ASSY, FLUID

main16210-0E020i1GDFTV..GDH303¥23,700201912

16271GASKET, WATER PUMP

main16271-11010i1GDFTV..GDH303¥640201912

�i�i�j

16272GASKET, WATER PUMP, NO.2

main16272-11010i1GDFTV..GDH303¥340201912

�i�i�j

16371PULLEY, FAN

main16371-11020i1GDFTV..GDH303¥1,850201912

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-31040i1GDFTV..GDH303¥4,760201912

�i�i�j

16620TENSIONER ASSY, V-RIBBED BELT

main16620-11010i1GDFTV..GDH303¥15,200201912

�i�i�j

91551G0865

main91551-G0865¥100

9155281050

main91552-81050¥120

9167180830

main91671-80830¥80

9415180800

main94151-80800¥80

13 parts on this diagram · 1 diagram in section
