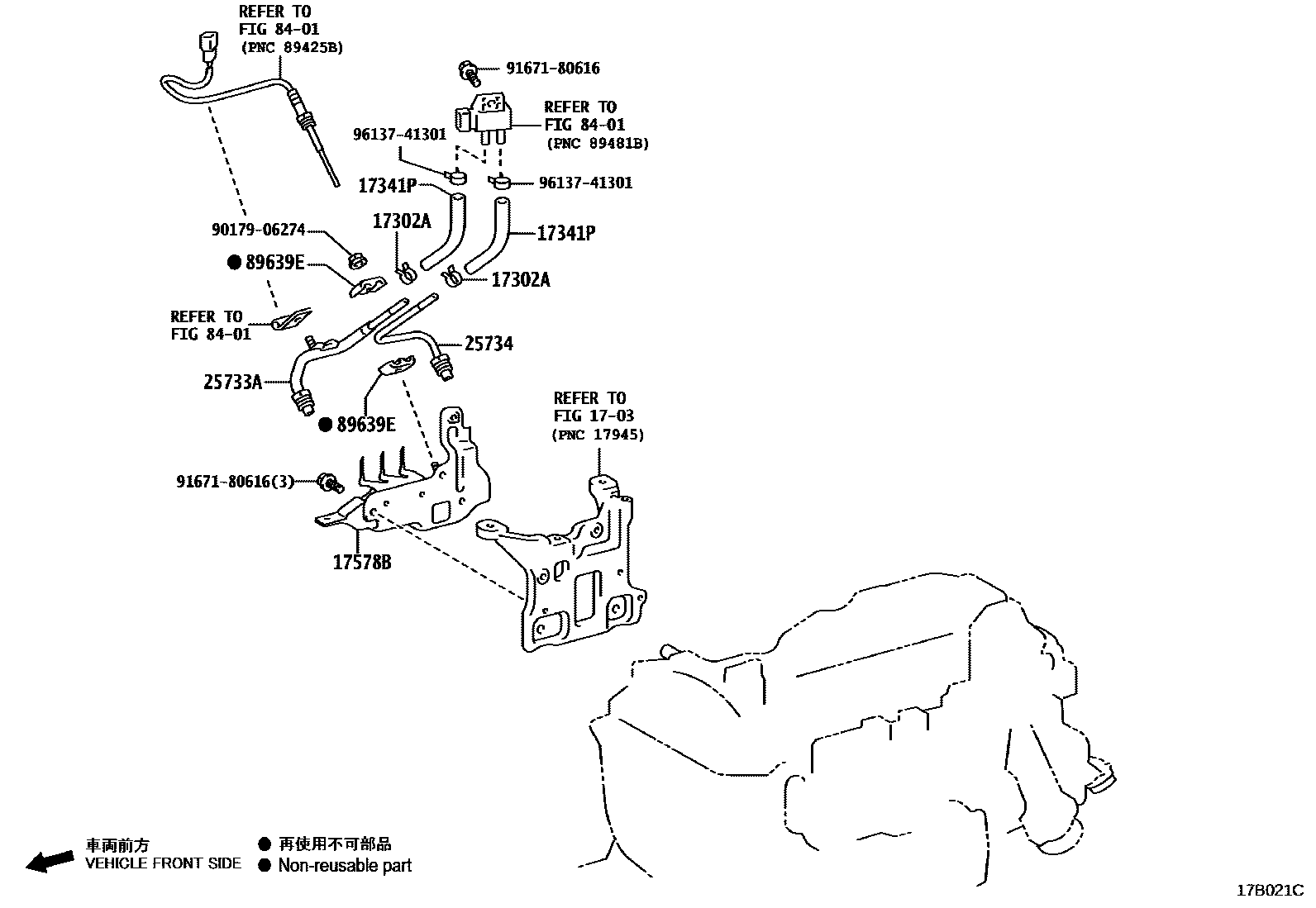

Toyota GRANACE — VACUUM PIPING

0001 1 0002 1

1703

17302ACLIP, HOSE

main96132-41000i1GDFTV..GDH303¥80201912-202306

main96133-41001i1GDFTV..GDH303¥110202307

17341PHOSE, AIR

main17341-11460i1GDFTV..GDH303¥410201912

17578BCLAMP, PIPE

main17578-11060i1GDFTV..GDH303¥2,940201912

25733APIPE, VACUUM, NO.1

main25733-0E010i1GDFTV..GDH303¥2,140201912

main25733-11010i1GDFTV..GDH303¥3,070201912-202206

sub25733-0E010¥2,140

25734PIPE, VACUUM, NO.2

main25734-0E010i1GDFTV..GDH303¥1,610201912

main25734-11010i1GDFTV..GDH303¥2,320201912-202206

sub25734-0E010¥1,610

8401

89639ECLAMP

main89639-26040iGDH303¥200201912

9017906274

main90179-06274¥70

9167180616

main91671-80616¥60

9613741301

main96137-41301¥120

11 parts on this diagram · 2 diagrams in section
