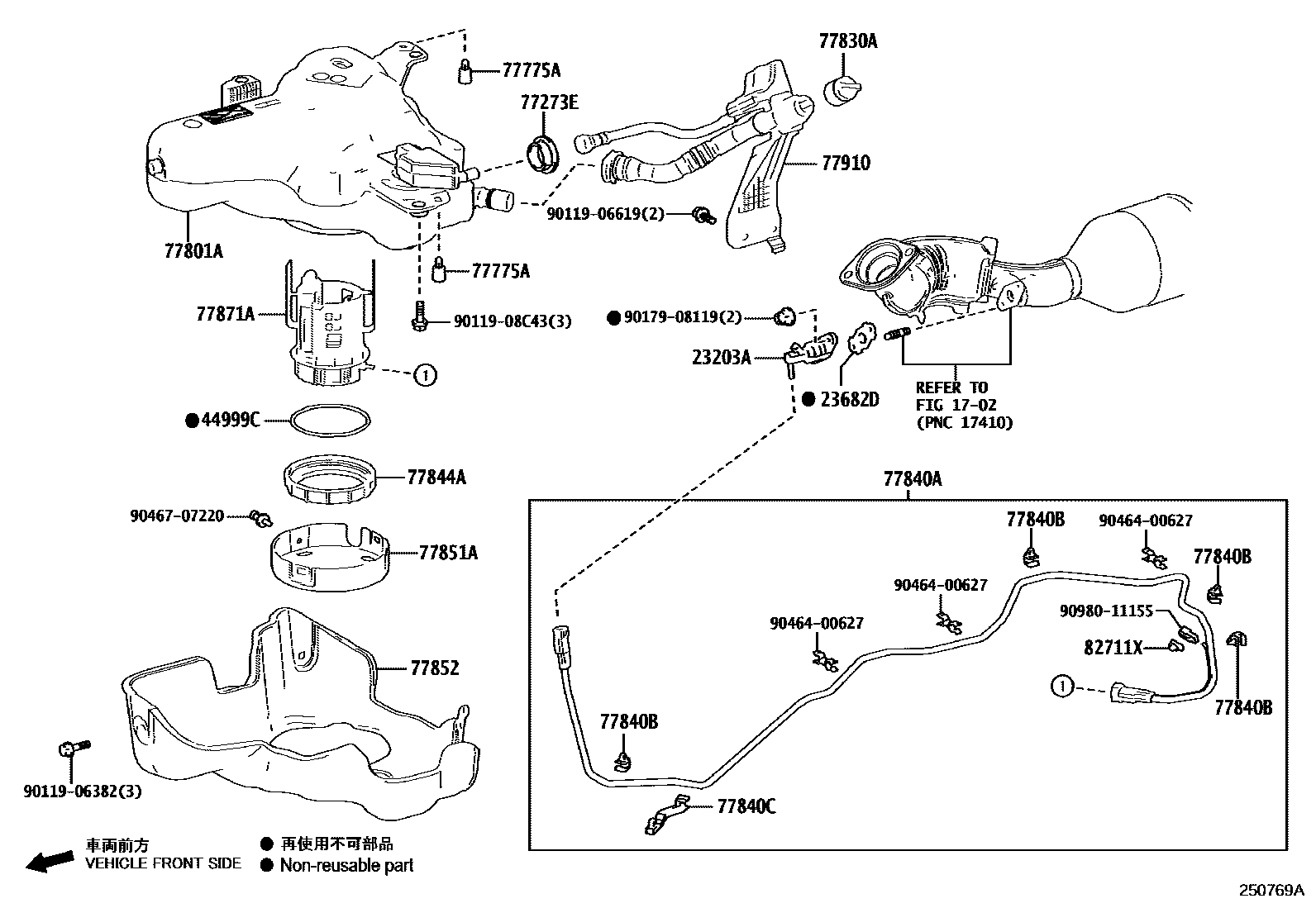

Toyota GRANACE — UREA TANK & TUBE

1702

23203AINJECTOR SET, UREA

main23203-11030i1GDFTV..GDH303¥24,400201912

23682DGASKET, NOZZLE HOLDER

main23682-11010i1GDFTV..GDH303¥510201912

44999CRING, O(FOR UREA PUMP)

main90301-W0004iGDH303¥330201912-202506

77273ESUPPORT, BREATHER TUBE, NO.2

main77273-26050iGDH303¥300201912

77775AGUIDE, UREA TANK OUTLET

main77775-47010iGDH303¥200201912

77801ATANK SUB-ASSY, UREA

main77801-26010iGDH303¥28,100201912-202506

77830ACAP ASSY, UREA TANK

main77830-60010iGDH303¥980201912-202208

main77830-60020iGDH303¥1,540202208

77840ATUBE ASSY, UREA W/HEATER

main77840-26010iGDH303¥24,600201912-202506

77840BCLAMP, UREA TUBE, NO.1

main77289-26040iGDH303¥200201912

77840CCLAMP, UREA TUBE, NO.2

main77298-26010iGDH303¥460201912

77844ARETAINER, UREA PUMP GAGE

main77844-60010iGDH303¥2,230201912-202506

77851APROTECTOR, UREA TANK

main77851-26010iGDH303¥2,100201912-202506

77852PROTECTOR, UREA TANK, NO.2

main77852-26010iGDH303¥10,400201912-202506

77871APUMP, UREA

main77871-0K010iGDH303¥68,600201912

77910PIPE ASSY, UREA TANK FILLER

main77910-26010iGDH303¥18,500201912-202208

sub77910-V3020¥33,800

main77910-V3020iGDH303¥33,800202208

82711XCLAMP, WIRING HARNESS

main82711-1E360iGDH303¥60201912

9011906382

main90119-06382¥70

9011906619

main90119-06619¥90

9011908C43

main90119-08C43¥100

9017908119

main90179-08119¥90

9046400627

main90464-00627¥130

9046707220

main90467-07220¥80

9098011155

main90980-11155¥240

24 parts on this diagram · 1 diagram in section
