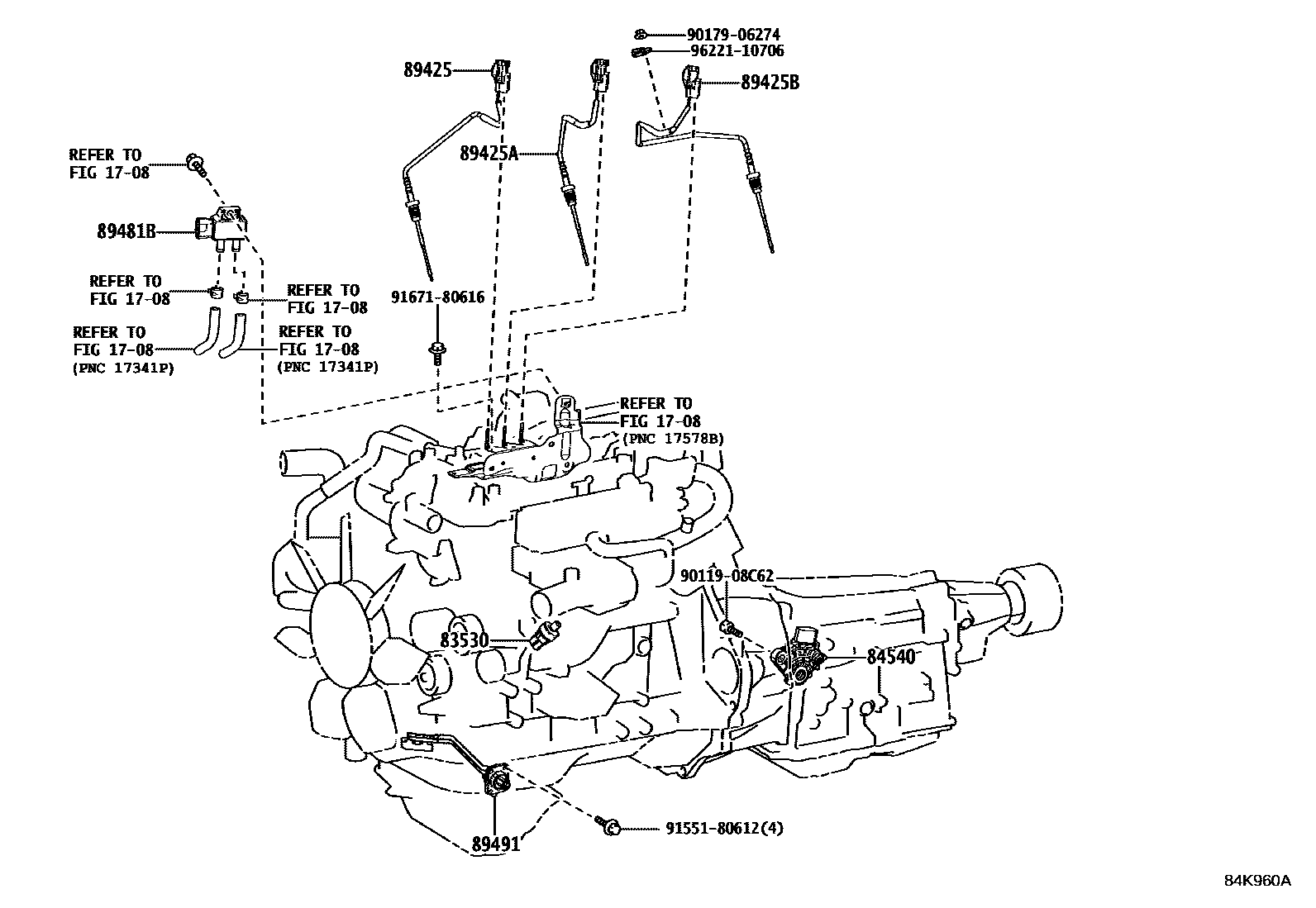

Toyota GRANACE — SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 1/2 0002 1����� & ��������� 2/2 0003 1�������� 0004 1�������� �������� 0005 1��� 0006 1������������ 1/2 0007 1������������ 2/2 0008 1������� 0009 1��� 1/2 0010 1��� 2/2 0011 1��� & ��� 1/2 0012 1��� & ��� 2/2 0013 1��� & �������

1708

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iGDH303¥1,970201912-202506

�c�d�m�r�n

main83530-60010iGDH303¥1,970201912-202506

�x�`�y�`�j�h

84540SWITCH ASSY, NEUTRAL START

main84540-60050iGDH303¥7,600201912-202506

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-71070iGDH303¥5,500201912-202506

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-71080iGDH303¥5,500201912-202506

89425BSENSOR, EXHAUST GAS TEMPERATURE, NO.3

main89425-71090iGDH303¥5,500201912-202506

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-71010iGDH303¥10,200201912-202505

89491SENSOR, ENGINE OIL LEVEL

main89491-26190iGDH303¥4,790201912-202506

9011908C62

main90119-08C62¥80

9017906274

main90179-06274¥70

9155180612

main91551-80612¥60

9167180616

main91671-80616¥60

9622110706

main96221-10706¥330

13 parts on this diagram · 13 diagrams in section
