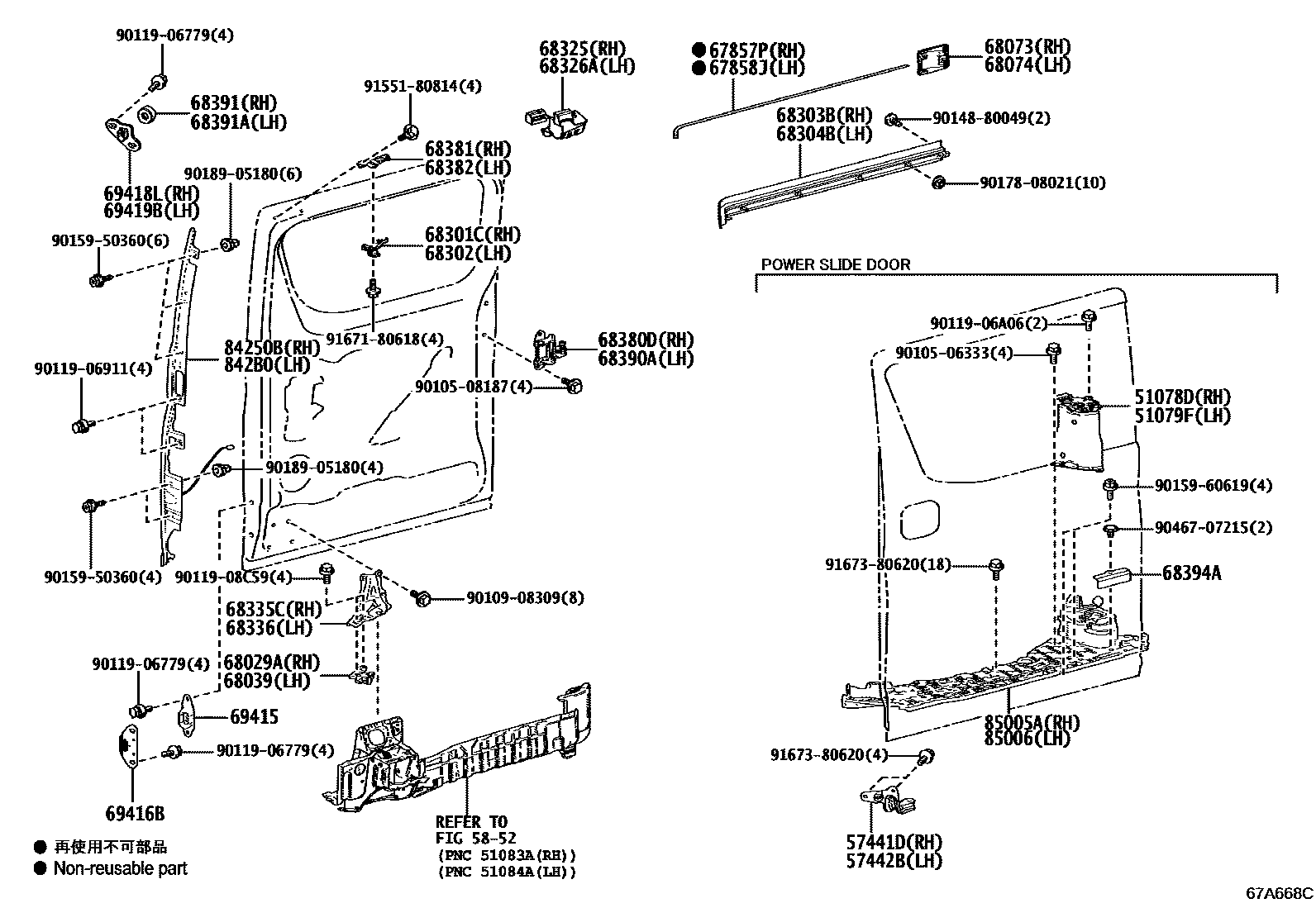

Toyota GRANACE — SLIDE ROLLER & RAIL
51078DBRACKET SUB-ASSY, SIDE STEP, RH
51079FBRACKET SUB-ASSY, SIDE STEP, LH
57441DSUPPORT, SIDE STEP, FRONT RH
57442BSUPPORT, SIDE STEP, FRONT LH
5852
67857PPROTECTOR, REAR DOOR PANEL, RH
67858JPROTECTOR, SLIDE DOOR RAIL, LH
68029ABASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, RH
68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH
68073MOULDING SUB-ASSY, SLIDE RAIL END, RH
WHITE PEARL CS.,070 ,2QD
SILVER M.M.,1E7
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
68074MOULDING SUB-ASSY, SLIDE RAIL END, LH
WHITE PEARL CS.,070 ,2QD
SILVER M.M.,1E7
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
68301CROLLER SUB-ASSY, SLIDE DOOR, UPPER RH
68302ROLLER SUB-ASSY, SLIDE DOOR, UPPER LH
68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH
68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68325CUSHION, SLIDE DOOR UPPER RAIL, RH
68326ACUSHION, SLIDE DOOR UPPER RAIL, LH
68335CARM, SLIDE DOOR LOWER ROLLER, RH
68336ARM, SLIDE DOOR LOWER ROLLER, LH
68380DHINGE ASSY, SLIDE DOOR, CENTER RH
68381ARM, SLIDE DOOR UPPER ROLLER, RH
68382ARM, SLIDE DOOR UPPER ROLLER, LH
68390AHINGE ASSY, SLIDE DOOR, CENTER LH
68391CUSHION, SLIDE DOOR UPPER ROLLER, RH
68391ACUSHION, SLIDE DOOR UPPER ROLLER, LH
68394APLATE, SLIDE DOOR LOWER RAIL, RH
69415STOPPER, SLIDE DOOR DOWN FEMALE
69416BSTOPPER, SLIDE DOOR DOWN MALE
69418LSTOP, SLIDE DOOR OPEN, RH
69419BSTOP, SLIDE DOOR OPEN, LH
84250BSENSOR ASSY, POWER SLIDE DOOR, RH
842B0SENSOR ASSY, POWER SLIDE DOOR, LH
85005AMOTOR UNIT, SLIDE DOOR, RH
85006MOTOR UNIT, SLIDE DOOR, LH
9010506333
9010508187
9010908309
9011906779
9011906911
9011906A06
9011908C59
9014880049
9015950360
9015960619
9017808021
9018905180
9046707215
9155180814
9167180618
9167380620
50 parts on this diagram · 1 diagram in section
