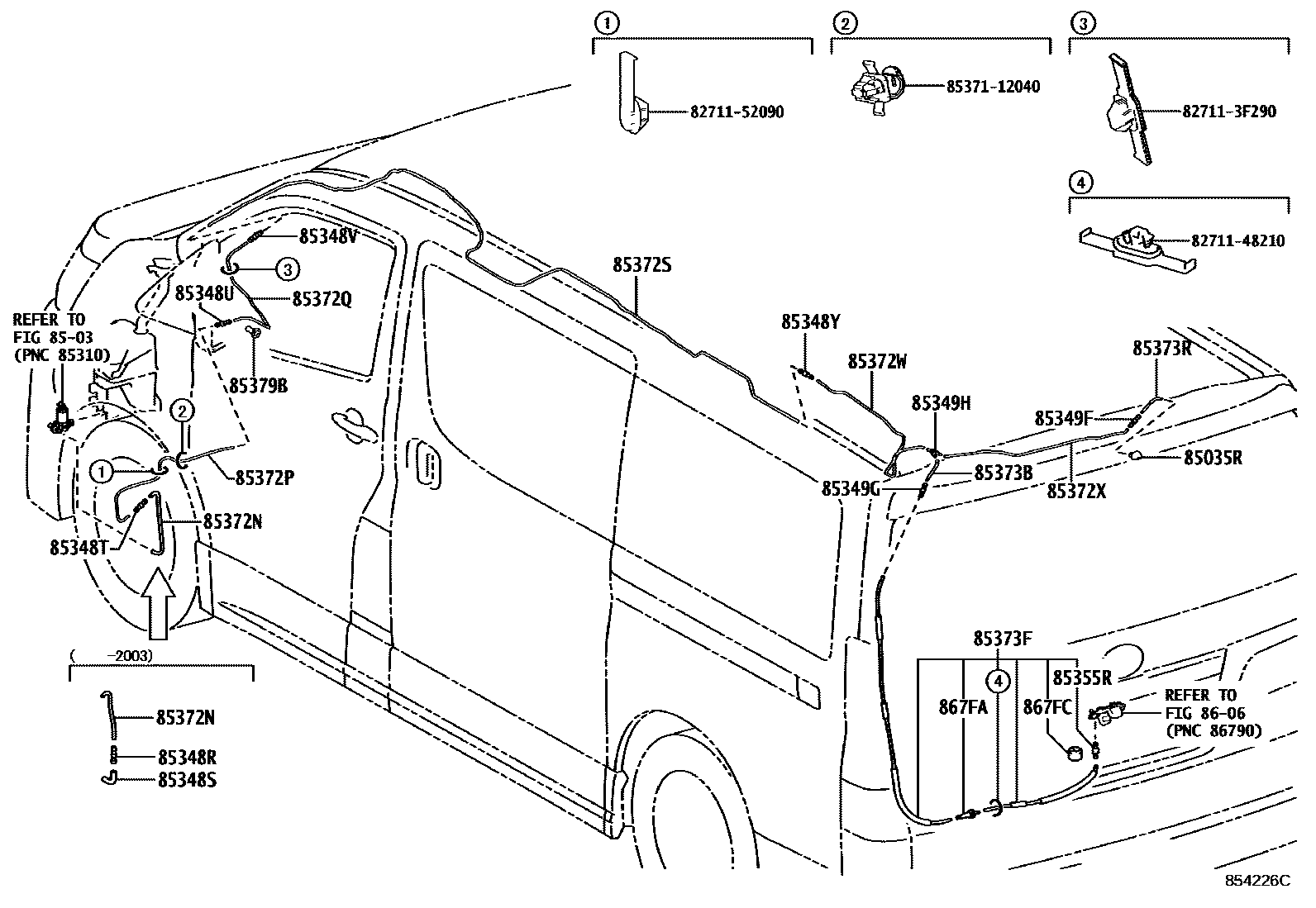

Toyota GRANACE — REAR WASHER
8503
85035RNOZZLE SUB-ASSY, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
85349GJOINT, REAR WASHER HOSE, NO.2
85349HJOINT, REAR WASHER HOSE, NO.3
85355RVALVE, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
85373FHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
85379BGROMMET, WASHER, A
8606
867FAFILTER, CLEANER HOSE
827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8271148210WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
29 parts on this diagram · 1 diagram in section
