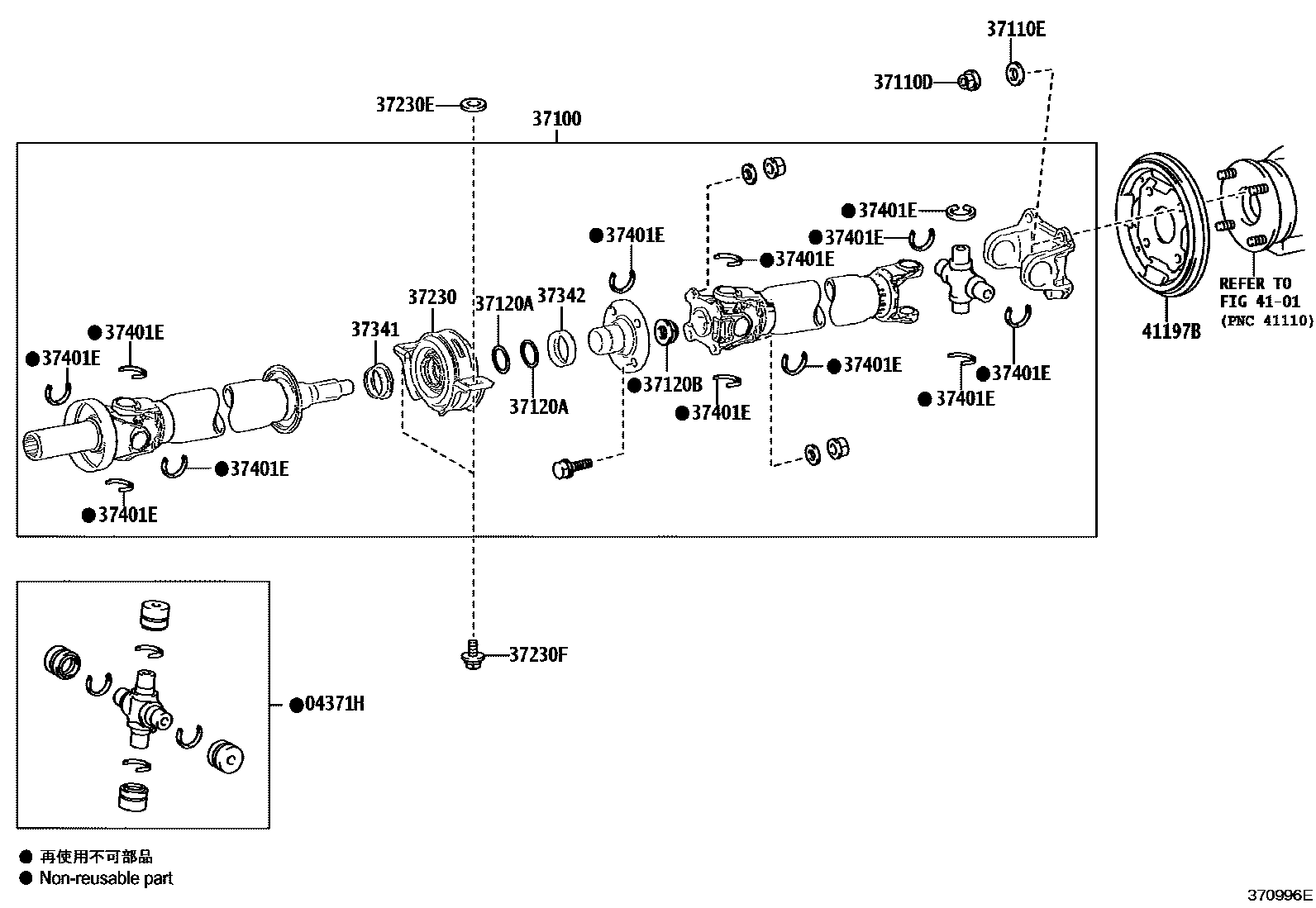

Toyota GRANACE — PROPELLER SHAFT & UNIVERSAL JOINT
04371HSPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37110DNUT (FOR PROPELLER SHAFT)
37110EWASHER (FOR PROPELLER SHAFT)
37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37230BEARING ASSY, CENTER SUPPORT, NO.1
37230EWASHER, NO.1 (FOR CENTER SUPPORT BEARING)
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
37341DEFLECTOR, PROPELLER SHAFT DUST, NO.1
37342DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37401ERING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)
4101
41197BDAMPER, DIFFERENTIAL TORSIONAL
14 parts on this diagram · 1 diagram in section
