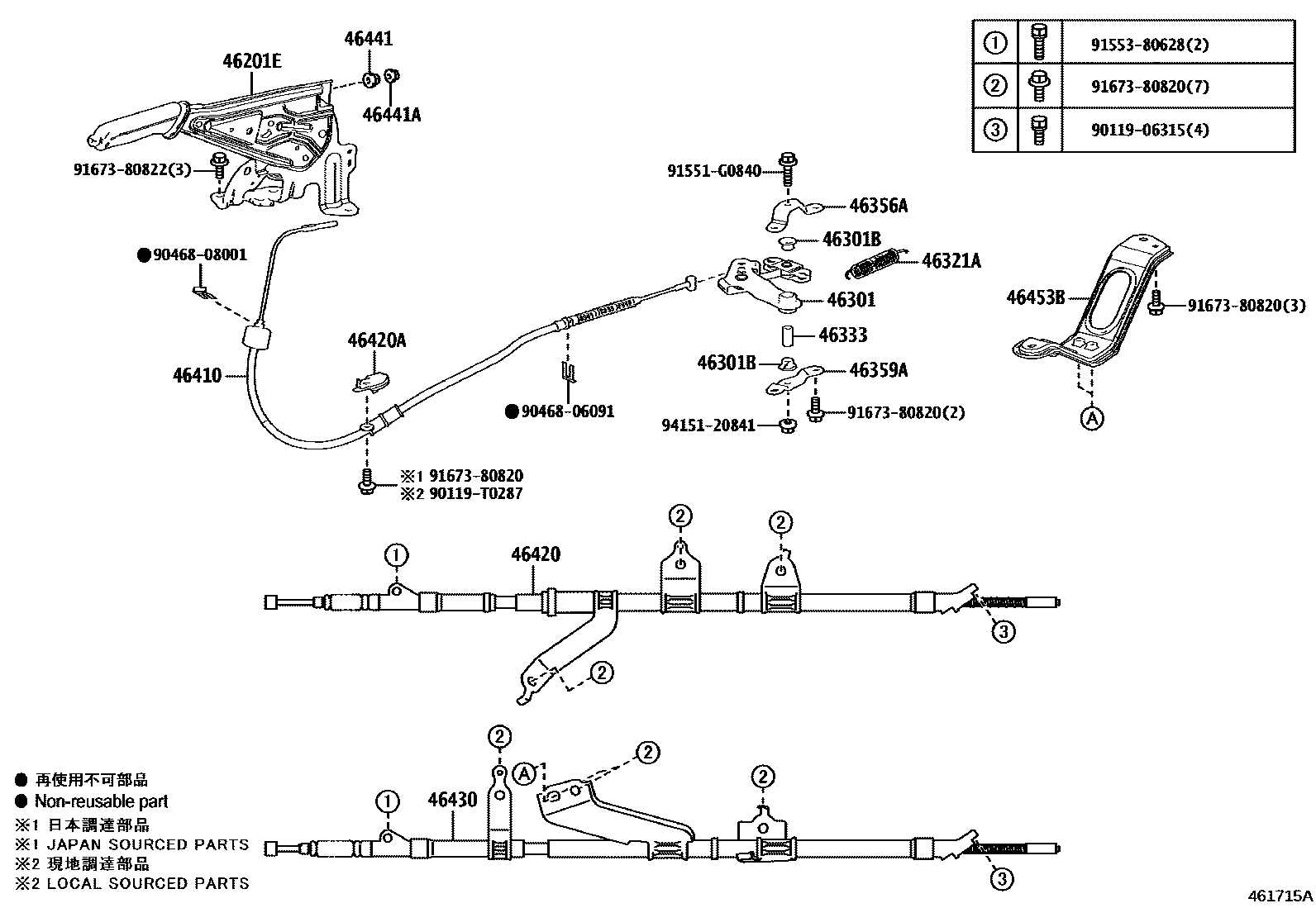

Toyota GRANACE — PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-26150-C0iGDH303201912-202506

BLACK,TRIM2#

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-26070iGDH303¥1,750201912-202506

46301BBUSH(FOR INTERMEDIATE LEVER)

main90386-14015iGDH303¥100201912-202506

46321ASPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90506-20060iGDH303¥370201912-202506

46333PIPE, INTERMEDIATE LEVER

main46333-26020iGDH303¥240201912-202506

46356ABRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE)

main46356-26180iGDH303¥320201912-202506

46359ABRACKET, PARKING BRAKE INTERMEDIATE LEVER SUPPORT

main46359-26080iGDH303¥320201912-202506

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-26510iGDH303¥2,210201912-202506

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-26690iGDH303¥3,350201912-202506

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46411-26040iGDH303¥360201912-202506

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-26490iGDH303¥3,350201912-202506

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iGDH303¥160201912-202506

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06299iGDH303¥70201912-202506

46453BBRACKET, CABLE SUPPORT, NO.3

main46453-26090iGDH303¥1,180201912-202506

9011906315

main90119-06315¥70

90119T0287

main90119-T0287

9046806091

main90468-06091¥50

9046808001

main90468-08001¥210

91551G0840

main91551-G0840¥80

9155380628

main91553-80628¥60

9167380820

main91673-80820¥80

9167380822

main91673-80822¥80

9415120841

main94151-20841¥80

23 parts on this diagram · 2 diagrams in section
