Toyota GRANACE — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-26F00iGDH303¥9,700201912-202506

69503BKEY, CUT

main69515-33110iGDH303¥7,100201912-202506

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-26070iGDH303¥10,400201912-202506

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-50040iGDH303¥10,000201912-202506

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-26520iGDH303¥5,400201912-202506

89745CBATTERY, TRANSMITTER

main89745-50020iGDH303¥440201912-202506

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-26070iGDH303¥17,200201912-202506

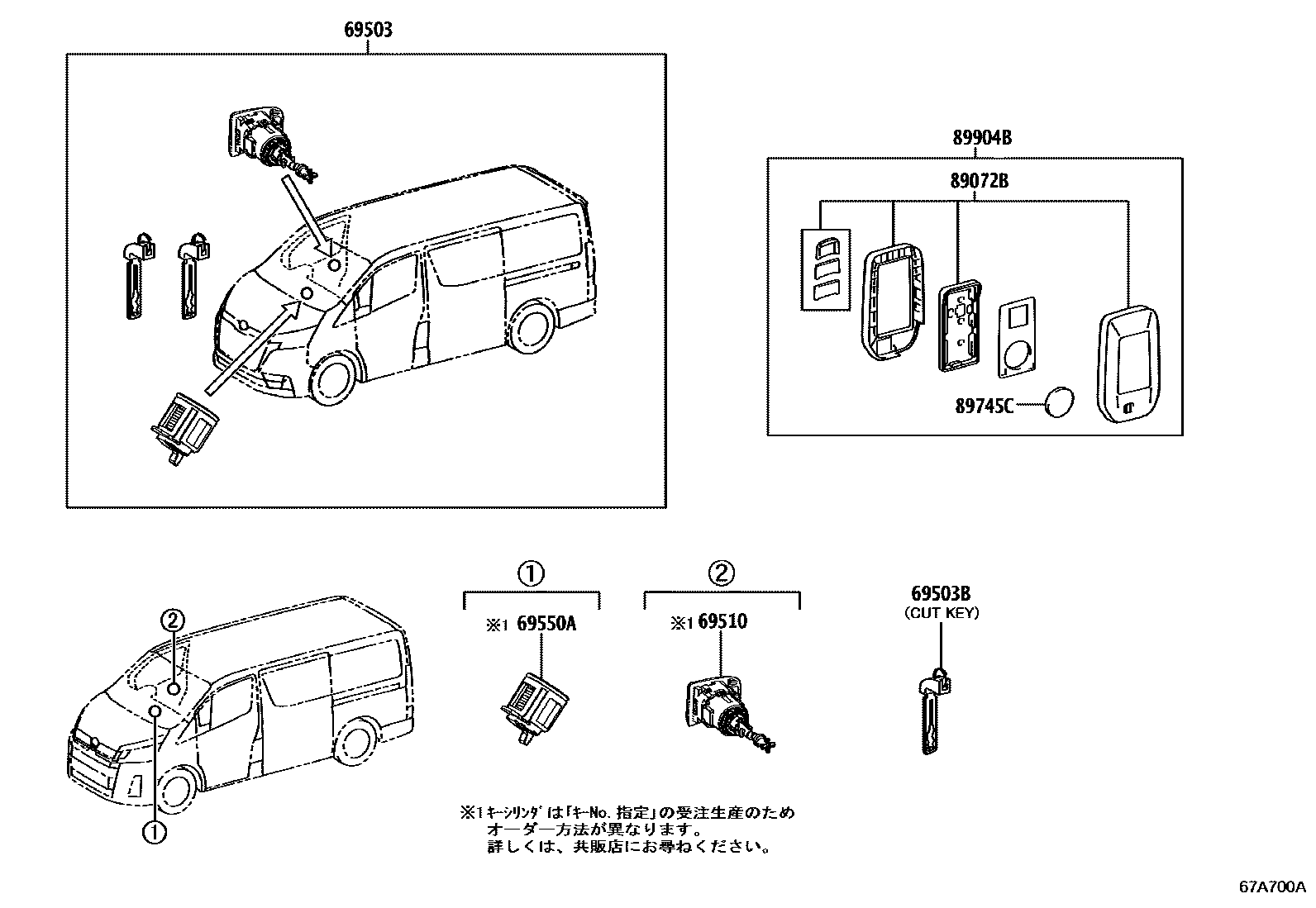

7 parts on this diagram · 1 diagram in section
