Toyota GRANACE — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-26060iGDH303¥1,570201912-202506

53420HINGE ASSY, HOOD, LH

main53420-26060iGDH303¥1,570201912-202506

53450ASUPPORT ASSY, HOOD, LH

main53450-26030iGDH303¥960201912-202506

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15034iGDH303¥110201912-202506

53452HOLDER, HOOD STAY

main53452-26020iGDH303¥340201912-202506

53510LOCK ASSY, HOOD

main53510-26100iGDH303¥2,930201912-202506

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iGDH303¥90201912-202506

���a���O�D�X�C�R�C���������Q�P

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iGDH303¥90201912-202506

���a���P�D�Q�C�R�C���������W�D�T

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iGDH303¥90201912-202506

���a���P�D�W�C�R�C���������P�R

53577BOLT, HOOD LOCK

main53577-33010iGDH303¥230201912-202506

53579CAP, HOOD LOCK NUT

main53579-50010iGDH303¥100201912-202506

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0iGDH303201912-202506

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-26090iGDH303¥990201912-202506

6151

90105T0280

main90105-T0280

9010906372

main90109-06372¥60

9155380814

main91553-80814¥80

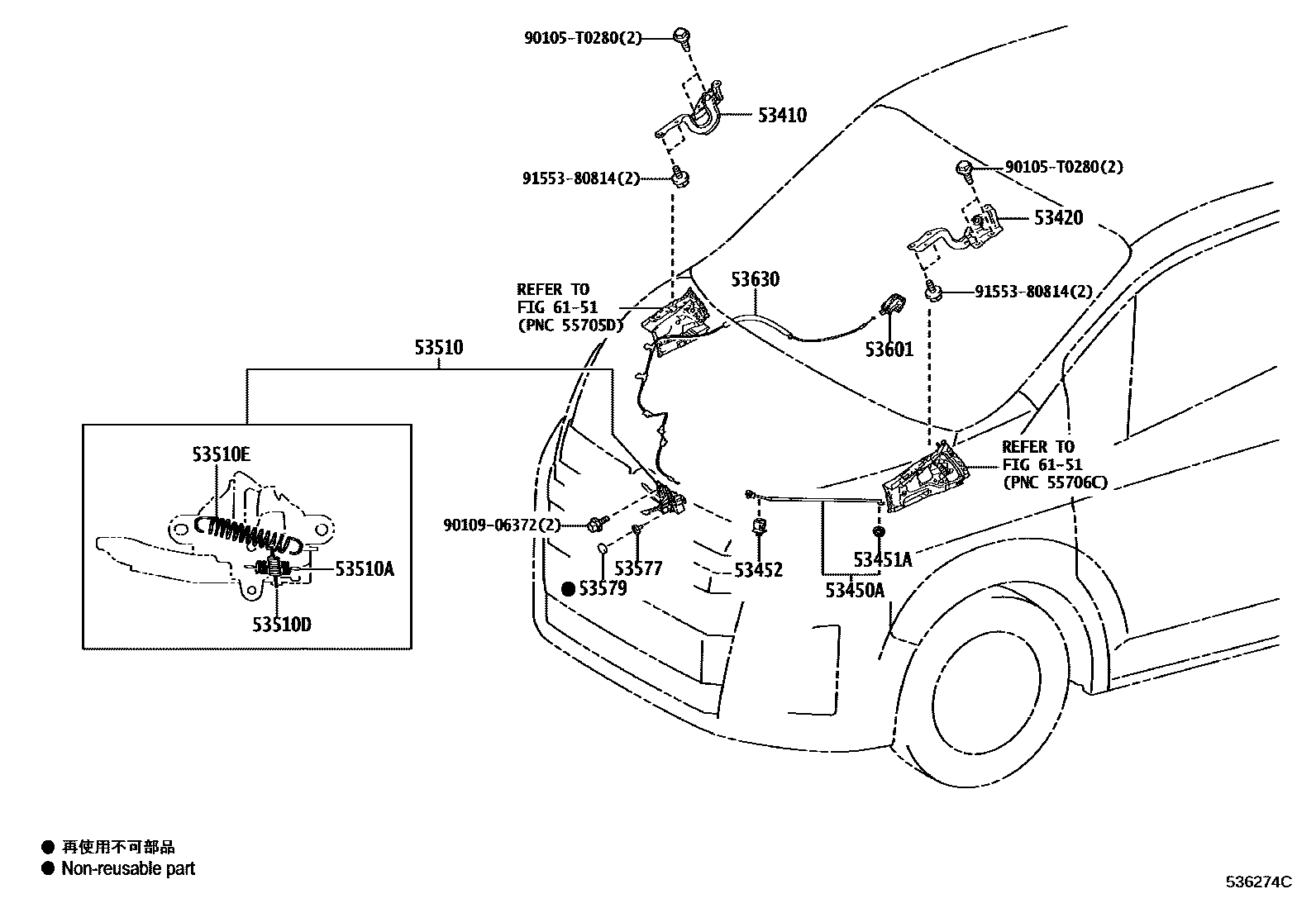

17 parts on this diagram · 1 diagram in section
