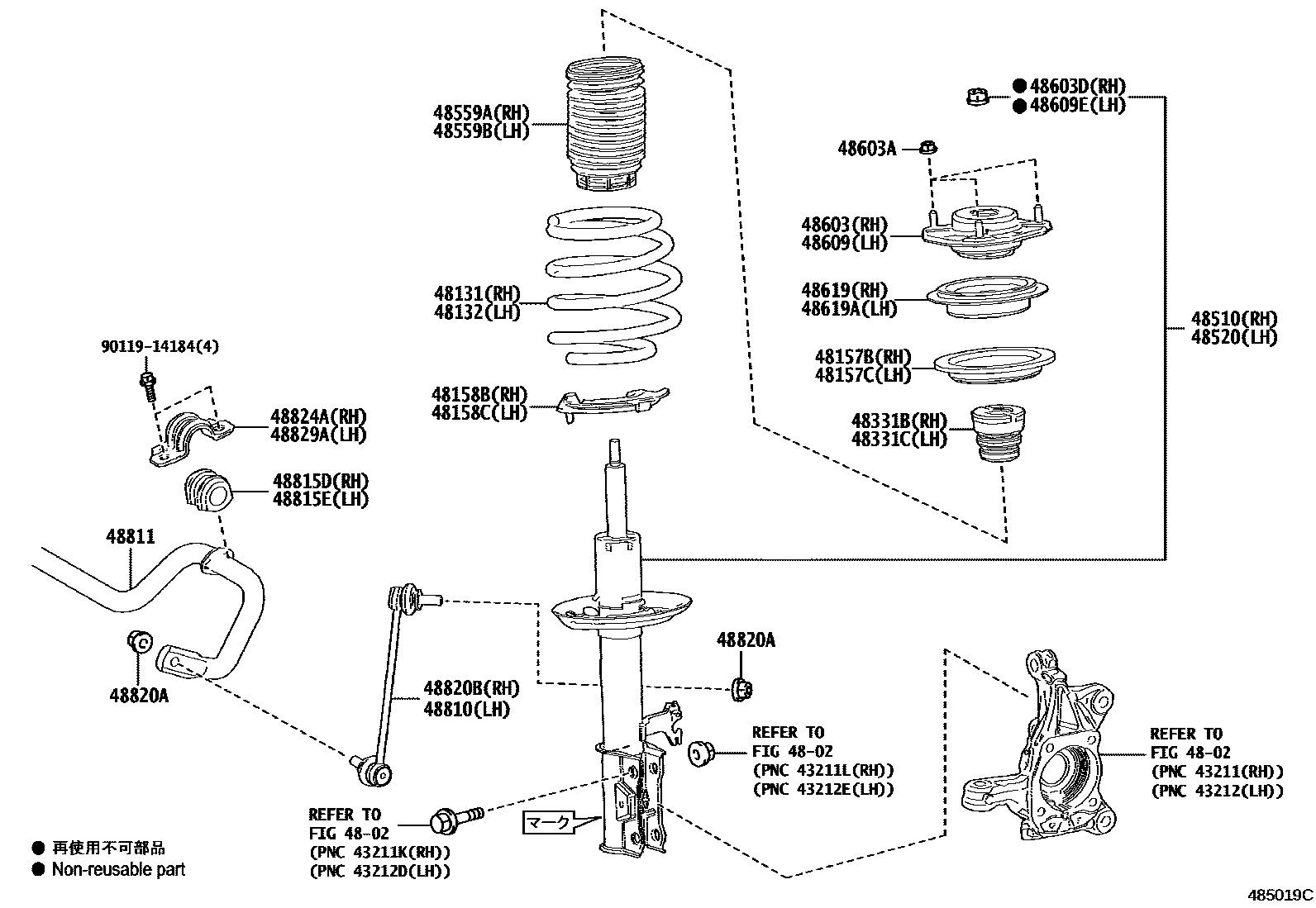

Toyota GRANACE — FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
�}�[�N�@�S�W�T�P�O�|�Q�U�O�V�O
48520ABSORBER ASSY, SHOCK, FRONT LH
�}�[�N�@�S�W�T�Q�O�|�Q�U�O�V�O
48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1
48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48619BEARING, STRUT MOUNTING, RH
48619ABEARING, STRUT MOUNTING, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815DBUSH, FRONT STABILIZER BAR, RH
48815EBUSH, FRONT STABILIZER BAR, LH
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011914184
29 parts on this diagram · 1 diagram in section
