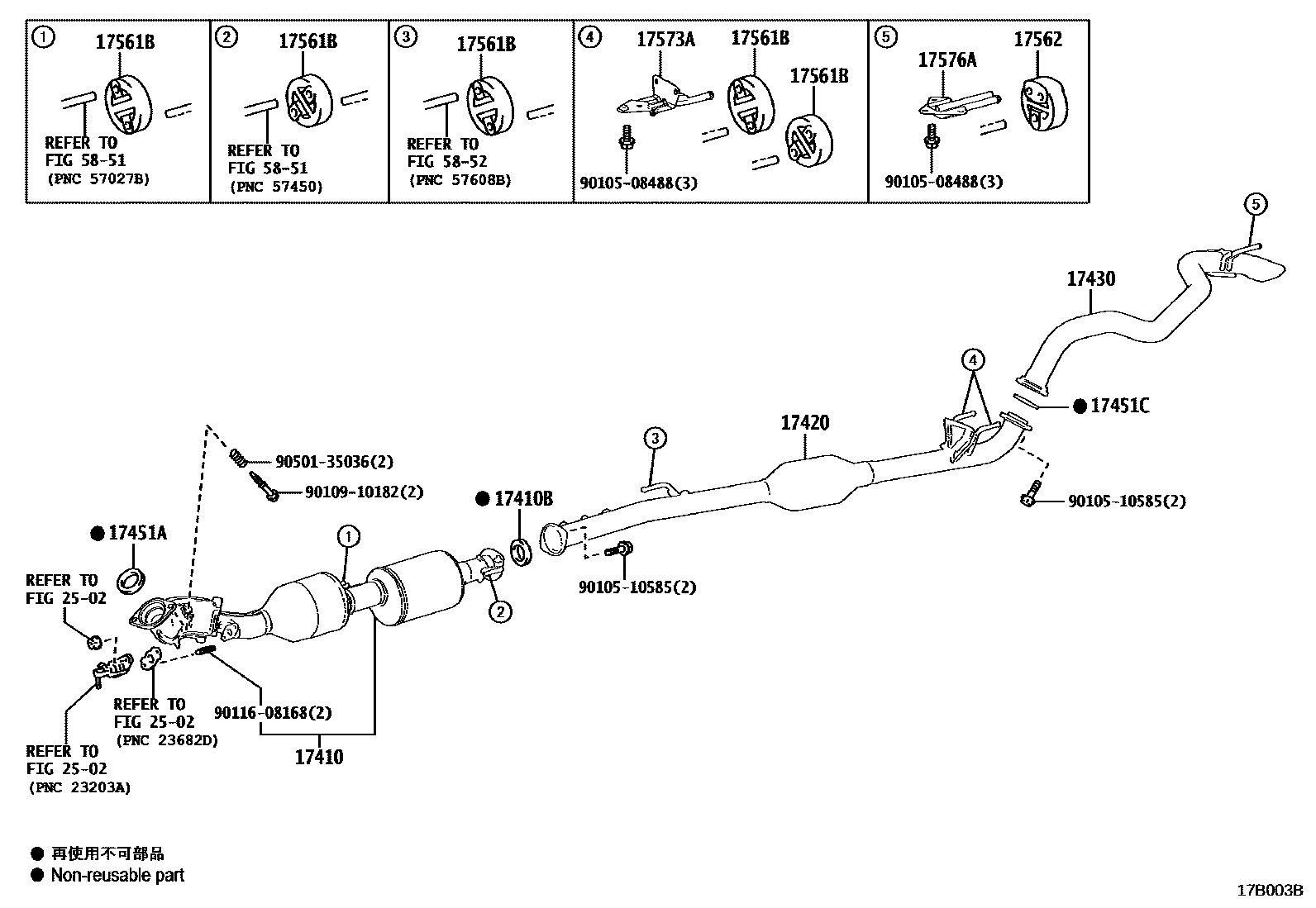

Toyota GRANACE — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451AGASKET, EXHAUST PIPE, NO.2
17451CGASKET, EXHAUST PIPE, NO.3
17561BSUPPORT, EXHAUST PIPE, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
2502
5851
5852
9010508488
9010510585
9010910182
9011608168
9050135036
18 parts on this diagram · 1 diagram in section
