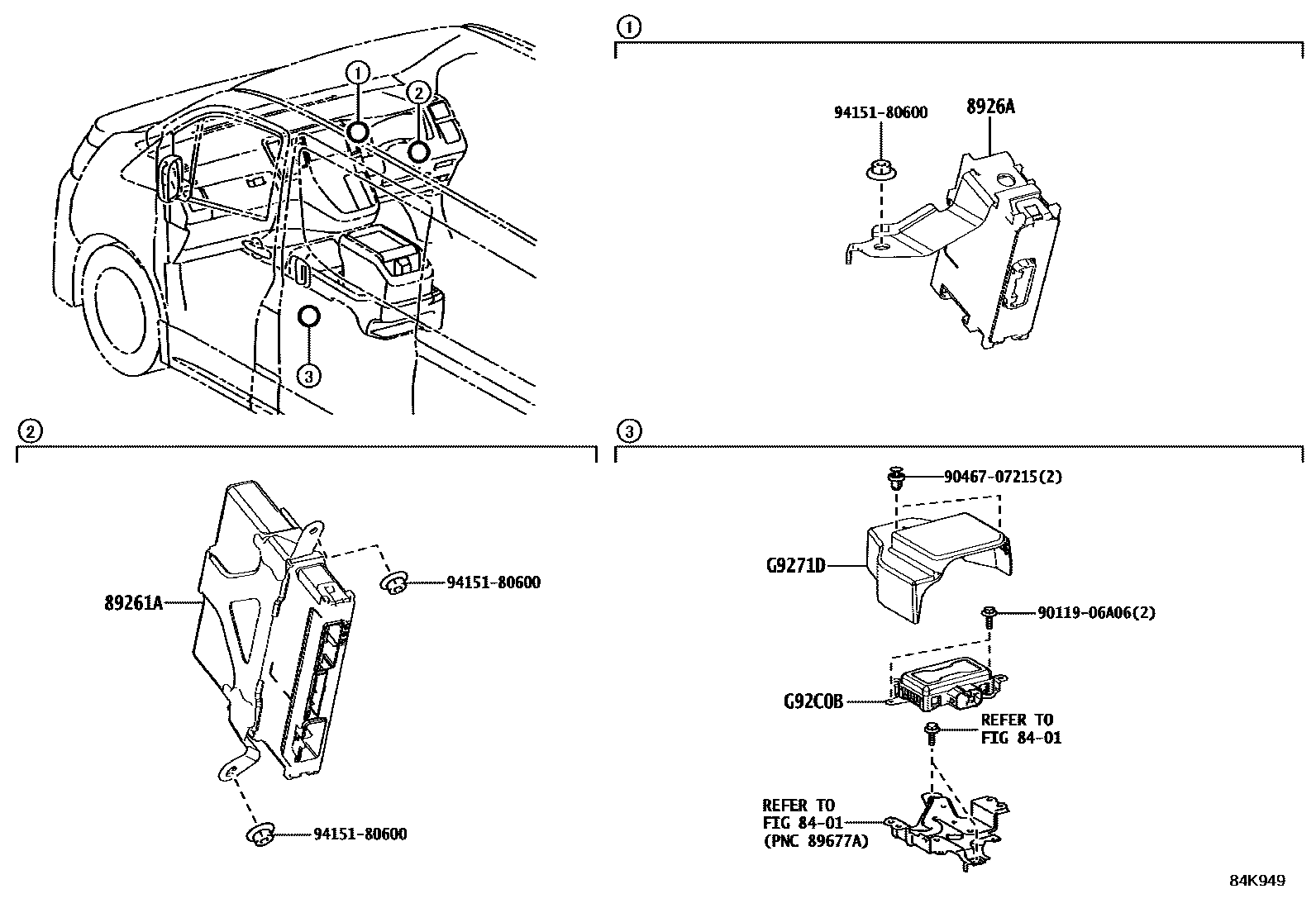

Toyota GRANACE — ECO-RUN SYSTEM

8401

89261ACOMPUTER, ENGINE STOP AND START

main89260-26010iGDH303¥40,200201912-202506

8926AFILTER, ENGINE STOP & START SOLENOID

main8926A-26010iGDH303¥3,630201912-202506

G9271DCOVER, CONVERTER

mainG927126010iGDH303201912

G92C0BCONVERTER ASSY, ECO RUN VEHICLE

mainG92C026010iGDH303201912

9011906A06

main90119-06A06¥60

9046707215

main90467-07215¥80

9415180600

main94151-80600¥60

8 parts on this diagram · 1 diagram in section
