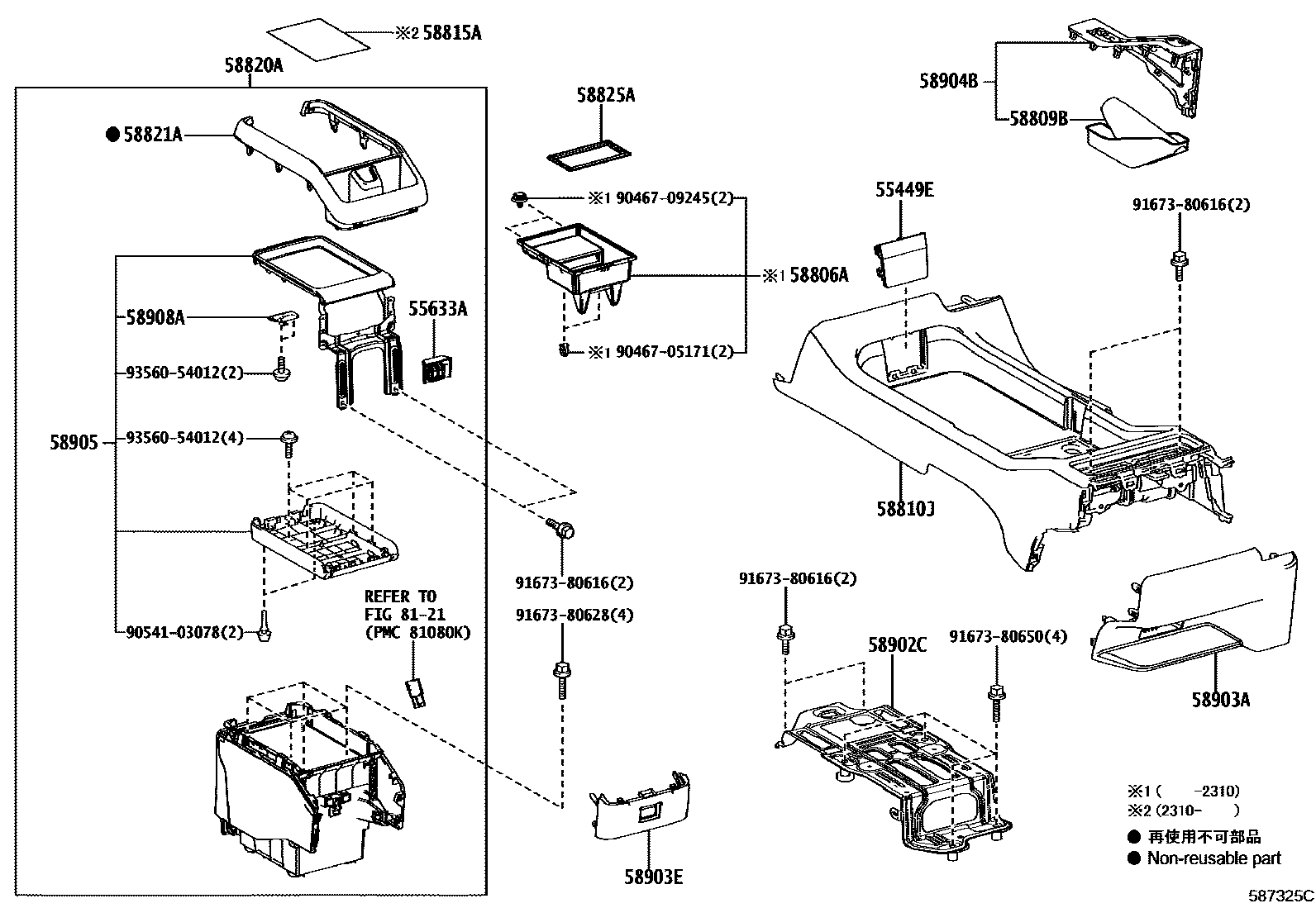

Toyota GRANACE — CONSOLE BOX & BRACKET

55449EBASE, SWITCH

main55449-26030-C0iGDH303201912-202506

BLACK,TRIM2#

55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1

main55633-26060-C0iGDH303201912-202506

BLACK,TRIM2#

58806APOCKET SUB-ASSY, CONSOLE BOX

main58806-26020iGDH303¥5,300201912-202310

58809BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58809-26010-C0iGDH303201912-202505

BLACK,TRIM2#

58810JBOX ASSY, CONSOLE

main58810-26230-C0iGDH303201912-202506

BLACK,TRIM2#

58815ACARPET, CONSOLE BOX

main58815-26120iGDH303¥280202310-202506

58820ABOX ASSY, CONSOLE COMPARTMENT

main58820-26040-C0iGDH303202310-202506

BLACK,TRIM2#

main58820-26050-C0iGDH303201912-202310

BLACK,TRIM2#

58821APANEL, CONSOLE

main58821-26030-C0iGDH303201912-202506

BLACK,TRIM2#

58825APOCKET, CONSOLE BOX

main58825-26030iGDH303¥1,550201912-202506

58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING

main58902-26060iGDH303¥6,300201912-202506

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-26040-C0iGDH303201912-202506

BLACK,TRIM2#

58903EPANEL SUB-ASSY, CONSOLE REAR END, NO.2

main58903-26070-C0iGDH303201912-202506

BLACK,TRIM2#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-26090-C1iGDH303201912-202505

BLACK,TRIM2#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-26220-C0iGDH303201912-202107

BLACK,TRIM2#

sub58905-26220¥26,500

main58905-26220-C1iGDH303202107-202506

BLACK,TRIM2#

sub58905-26220¥26,500

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-12080iGDH303¥970201912-202506

8121

9046705171

main90467-05171¥60

9046709245

main90467-09245¥80

9054103078

main90541-03078¥120

9167380616

main91673-80616¥60

9167380628

main91673-80628¥130

9167380650

main91673-80650¥80

9356054012

main93560-54012¥60

23 parts on this diagram · 1 diagram in section
