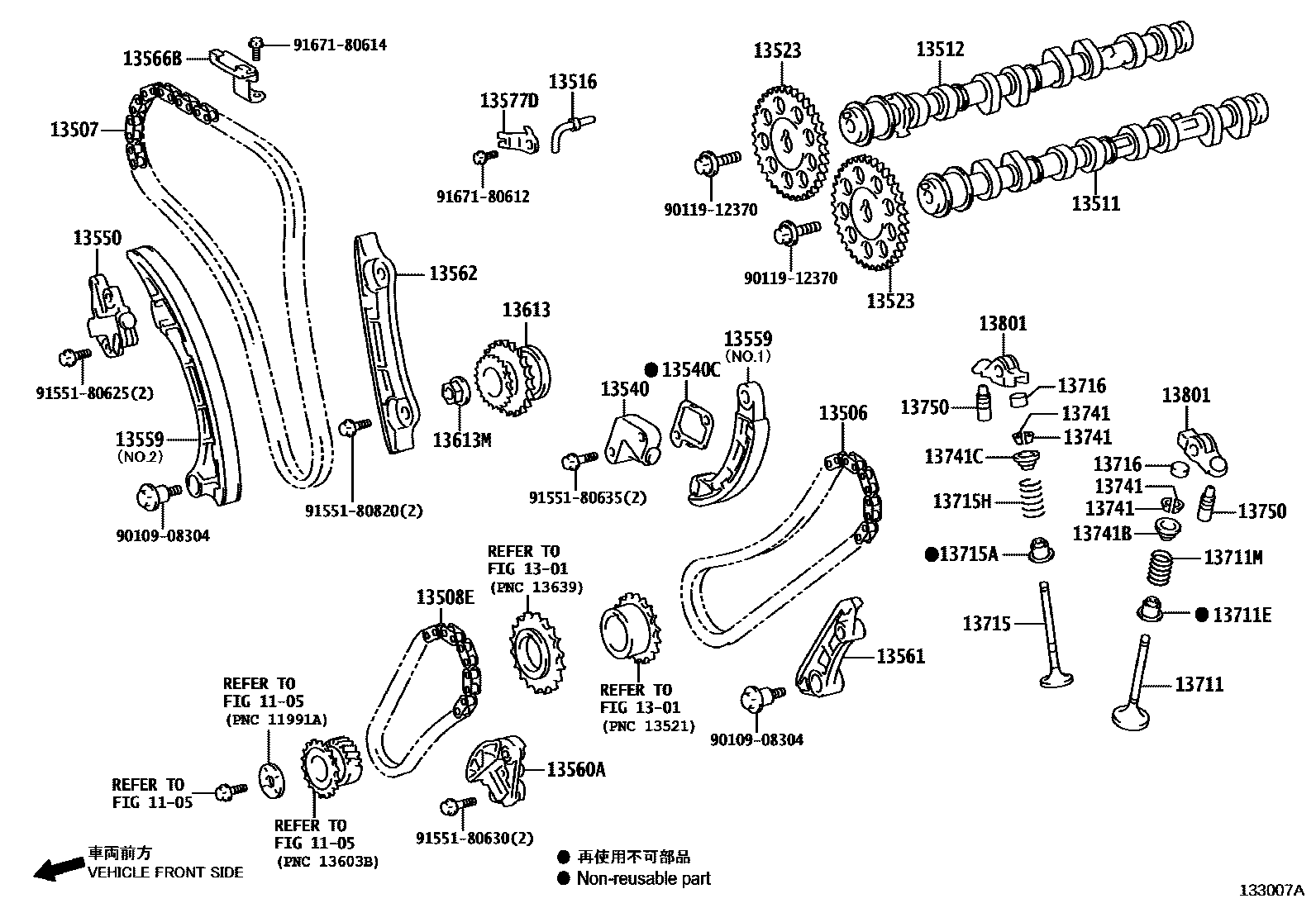

Toyota GRANACE — CAMSHAFT & VALVE
1105
1301
13506CHAIN SUB-ASSY
13507CHAIN SUB-ASSY, NO.2
13508ECHAIN SUB-ASSY, NO.3
13511CAMSHAFT
13512CAMSHAFT, NO.2
13516JET, OIL
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13550TENSIONER ASSY, CHAIN, NO.2
13559SLIPPER, CHAIN TENSIONER
13560ATENSIONER ASSY, CHAIN, NO.3
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13566BGUIDE, TIMING CHAIN
13577DPLATE, LOCK
13613GEAR, INJECTION PUMP DRIVE
13613MNUT(FOR INJECTION PUMP DRIVE GEAR)
13711VALVE, INTAKE
13711ESEAL, INTAKE VALVE STEM OIL
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
13716CAP, VALVE STEM
13741RETAINER, VALVE SPRING
13741BRETAINER, INTAKE VALVE SPRING
13741CRETAINER, EXHAUST VALVE SPRING
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
9010908304
9011912370
9155180625
9155180630
9155180635
9155180820
9167180612
9167180614
40 parts on this diagram · 1 diagram in section
