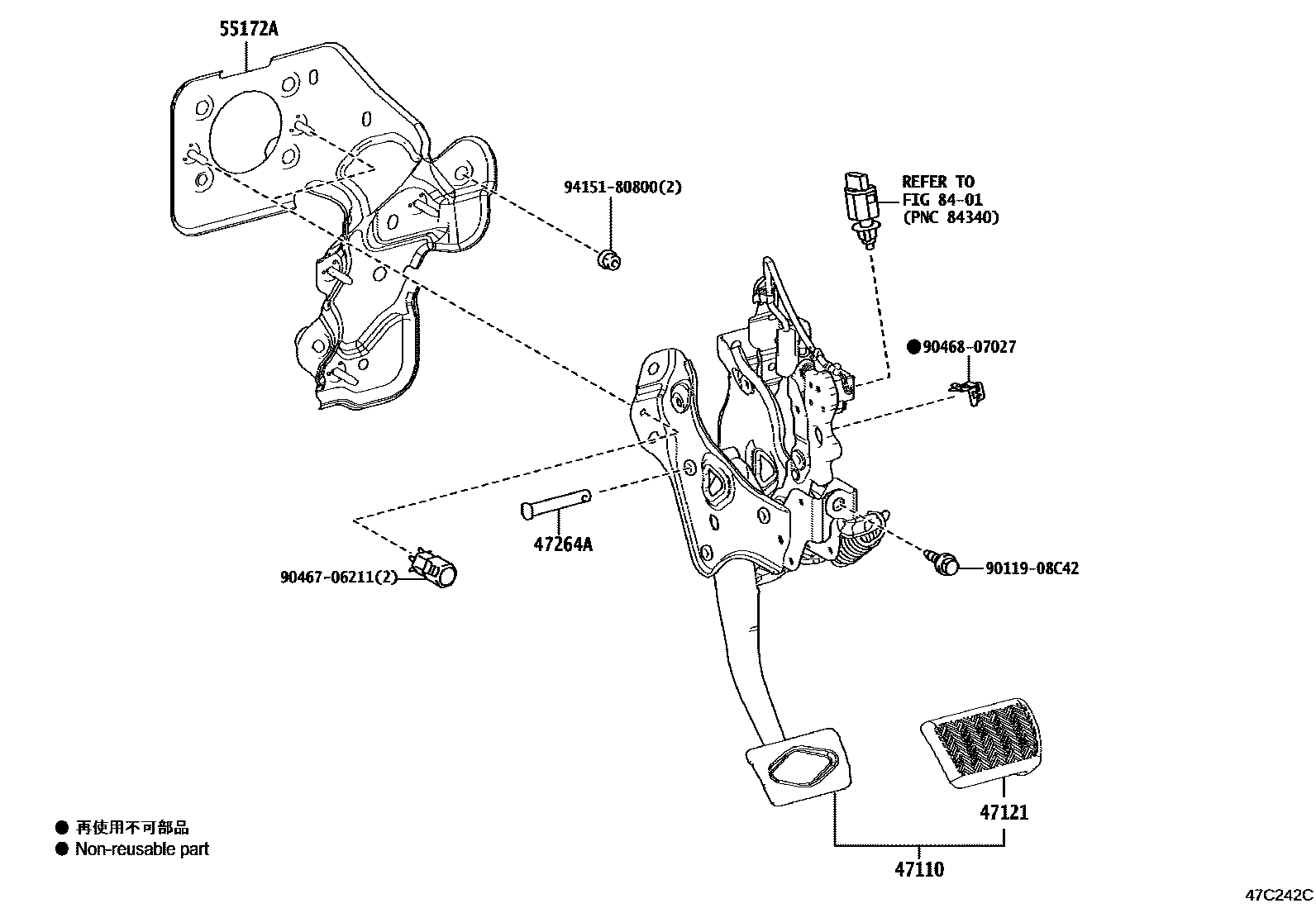

Toyota GRANACE — BRAKE PEDAL & BRACKET

47110SUPPORT ASSY, BRAKE PEDAL

main47110-26080iGDH303¥8,800201912-202506

47121PAD, BRAKE PEDAL

main47121-47010iGDH303¥400201912-202506

47264APIN(FOR PUSH ROD)

main90240-06028iGDH303¥90201912-202506

55172ABASE, BRAKE PEDAL SUPPORT

main55172-26060iGDH303¥4,060201912

8401

9011908C42

main90119-08C42¥80

9046706211

main90467-06211¥80

9046807027

main90468-07027¥60

9415180800

main94151-80800¥80

9 parts on this diagram · 1 diagram in section
