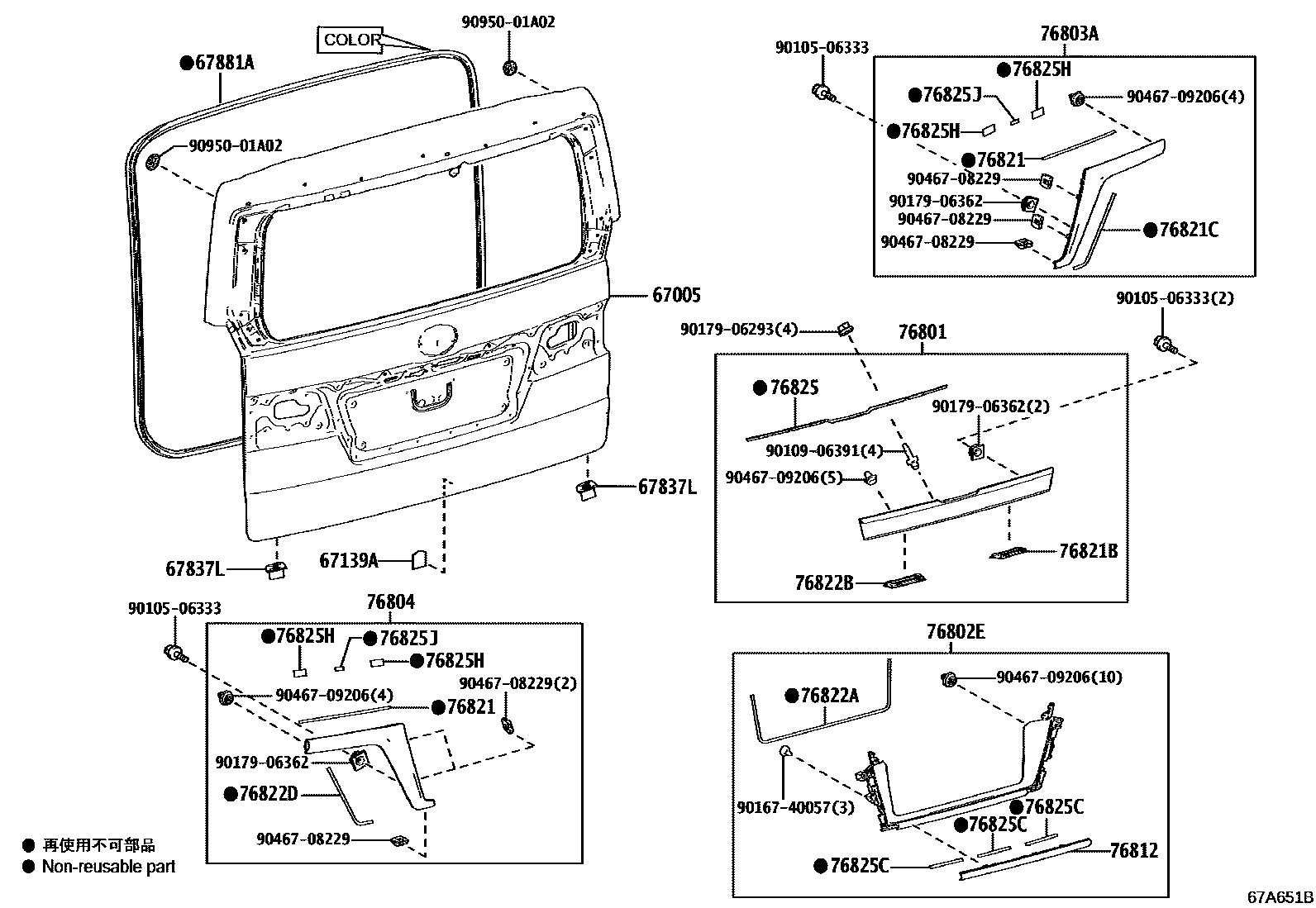

Toyota GRANACE — BACK DOOR PANEL & GLASS
67005PANEL SUB-ASSY, BACK DOOR
67139ALINING, DOOR OUTSIDE PANEL REINFORCEMENT
67837LSEAL, DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
�����F�@���@��
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
WHITE PEARL CS.,070 ,2QD
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
76802EGARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER
WHITE PEARL CS.,070 ,2QD
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
76803AGARNISH SUB-ASSY, BACK DOOR, OUTSIDE UPPER RH
76804GARNISH SUB-ASSY, BACK DOOR, OUTSIDE UPPER LH
76812GARNISH, BACK DOOR, OUTSIDE LOWER
76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
�E��
����
76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH
76821CPROTECTOR, BACK DOOR GARNISH SIDE, RH
76822APROTECTOR, BACK DOOR GARNISH MOULDING, LWR
76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH
76822DPROTECTOR, BACK DOOR GARNISH SIDE, LH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825CPROTECTOR, BACK DOOR OUTSIDE GARNISH
76825HPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1
76825JPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2
9010506333
9010906391
9016740057
9017906293
9017906362
9046708229
9046709206
9095001A02
27 parts on this diagram · 3 diagrams in section
