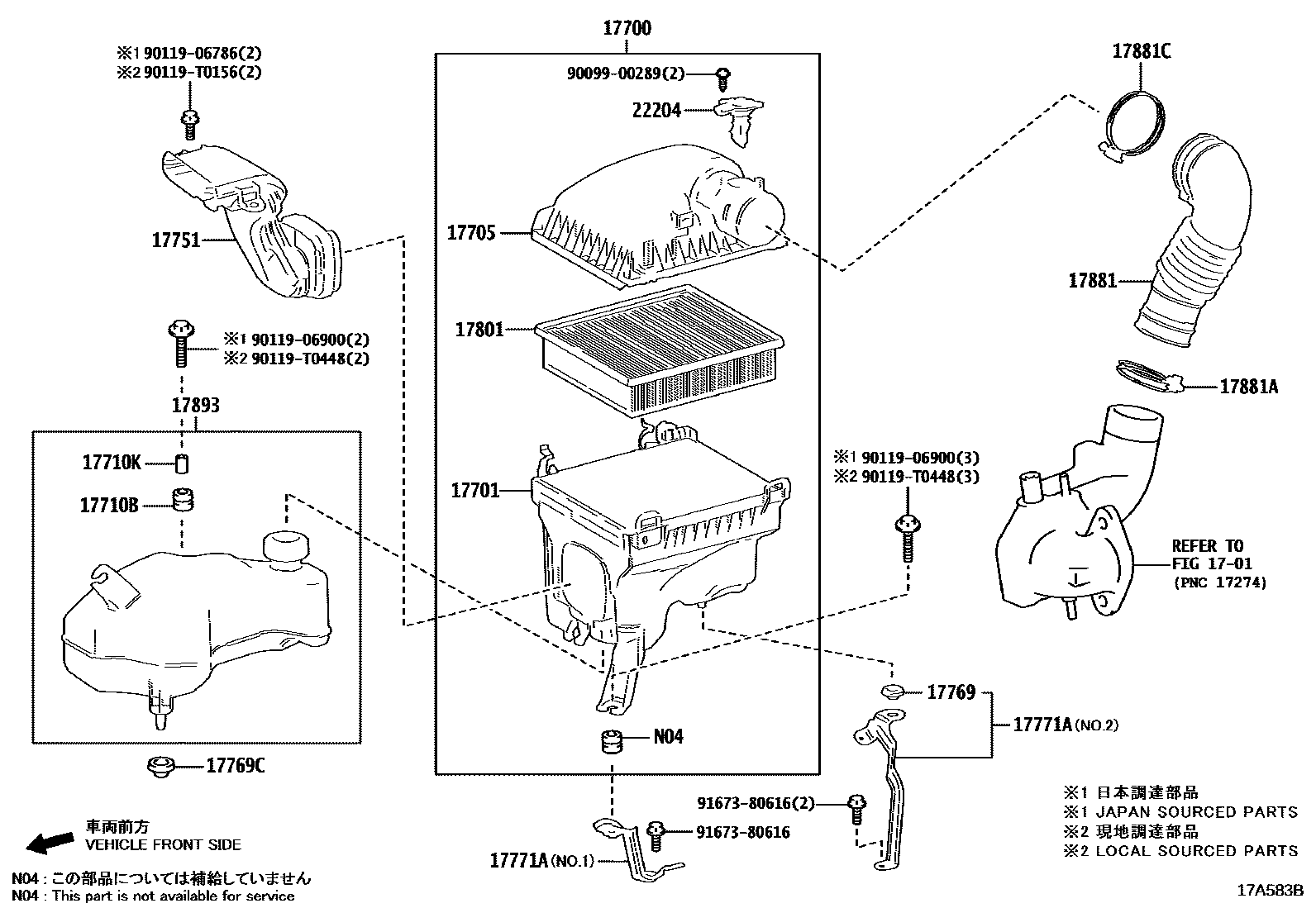

Toyota GRANACE — AIR CLEANER

0001 1 0002 1

1701

17700CLEANER ASSY, AIR

main17700-11A10i1GDFTV..GDH303¥17,000201912

17701CASE SUB-ASSY, AIR CLEANER

main17701-31790i1GDFTV..GDH303201912

17705CAP SUB-ASSY, AIR CLEANER

main17705-11640i1GDFTV..GDH303201912

17710BGROMMET

main90480-11016i1GDFTV..GDH303¥0201912

17710KCOLLAR(FOR AIR CLEANER)

main90387-09064i1GDFTV..GDH303201912

17751INLET, AIR CLEANER, NO.1

main17751-11160i1GDFTV..GDH303¥3,560201912

17769SUPPORT, AIR CLEANER

main17769-31030i1GDFTV..GDH303¥180201912

17769CSUPPORT, AIR CLEANER, NO.1

main17769-31030i1GDFTV..GDH303¥180201912

17771ABRACKET, AIR CLEANER

main17771-31040i1GDFTV..GDH303¥730201912

main17772-31010i1GDFTV..GDH303¥810201912

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31160i1GDFTV..GDH303¥5,600201912

17881HOSE, AIR CLEANER, NO.1

main17881-11650i1GDFTV..GDH303¥2,600201912

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10800i1GDFTV..GDH303¥160201912

17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10900i1GDFTV..GDH303¥410201912

17893RESONATOR, INTAKE AIR

main17893-11080i1GDFTV..GDH303¥4,230201912

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-30030i1GDFTV..GDH303¥12,400201912

9009900289

main90099-00289¥60

9011906786

main90119-06786¥90

9011906900

main90119-06900¥80

90119T0156

main90119-T0156¥60

90119T0448

main90119-T0448

9167380616

main91673-80616¥60

22 parts on this diagram · 2 diagrams in section
