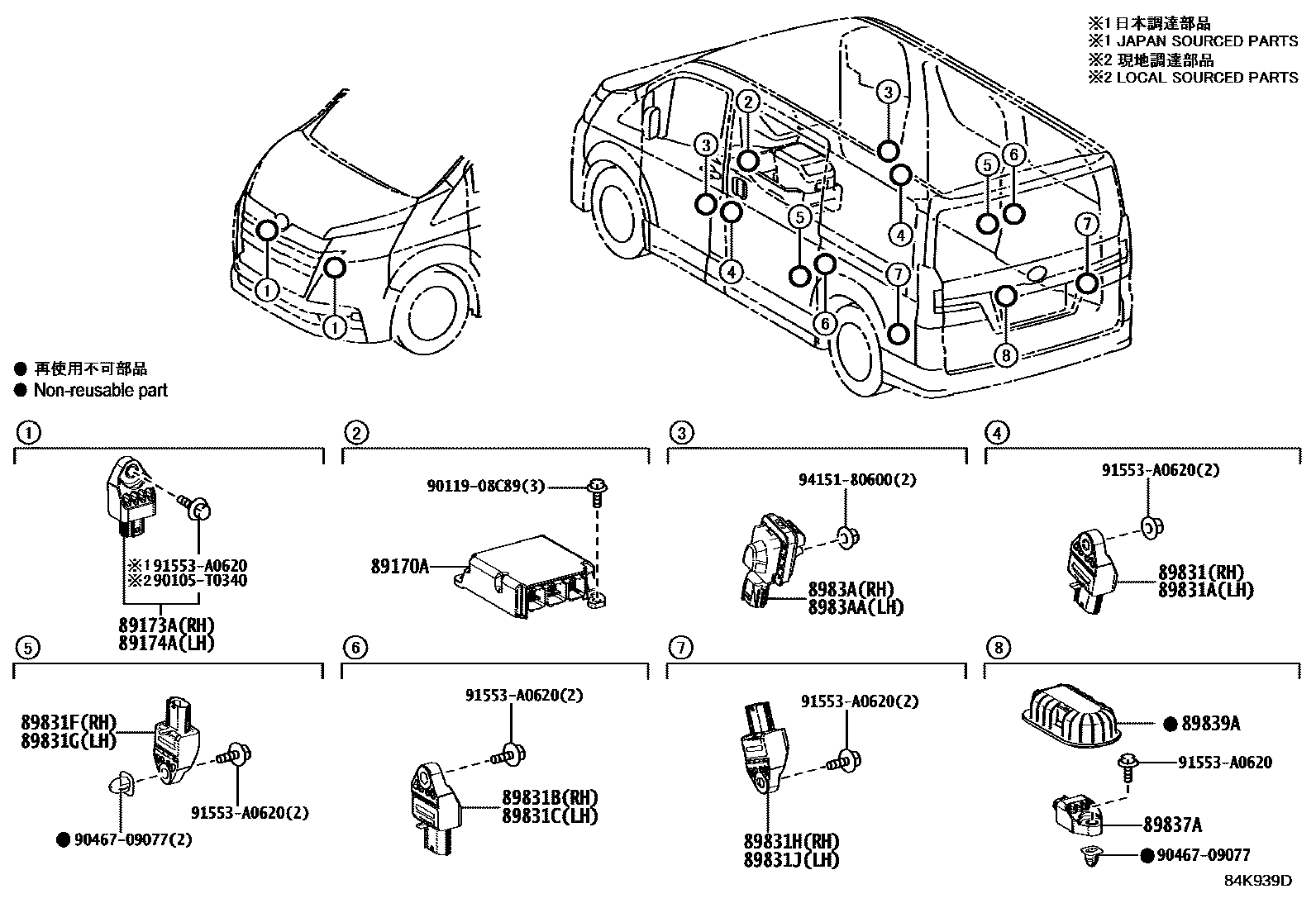

Toyota GRANACE — AIR BAG
89170ACOMPUTER ASSY, AIRBAG
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89831SENSOR, SIDE AIRBAG, RH, NO.1
89831ASENSOR, SIDE AIRBAG, LH, NO.1
89831BSENSOR, SIDE AIRBAG, RH, NO.2
89831CSENSOR, SIDE AIRBAG, LH, NO.2
89831FSENSOR, SIDE AIRBAG, RH, NO.3
89831GSENSOR, SIDE AIRBAG, LH, NO.3
89831HSENSOR, SIDE AIRBAG, RH, NO.4
89831JSENSOR, SIDE AIRBAG, LH, NO.4
89837ASENSOR, REAR FLOOR SIDE AIRBAG
89839ACOVER, REAR FLOOR SIDE AIRBAG SENSOR
8983ASENSOR, SIDE AIRBAG PRESSURE, RH
8983AASENSOR, SIDE AIRBAG PRESSURE, LH
90105T0340
main90105-T0340
9011908C89
9046709077
91553A0620
9415180600
20 parts on this diagram · 1 diagram in section
