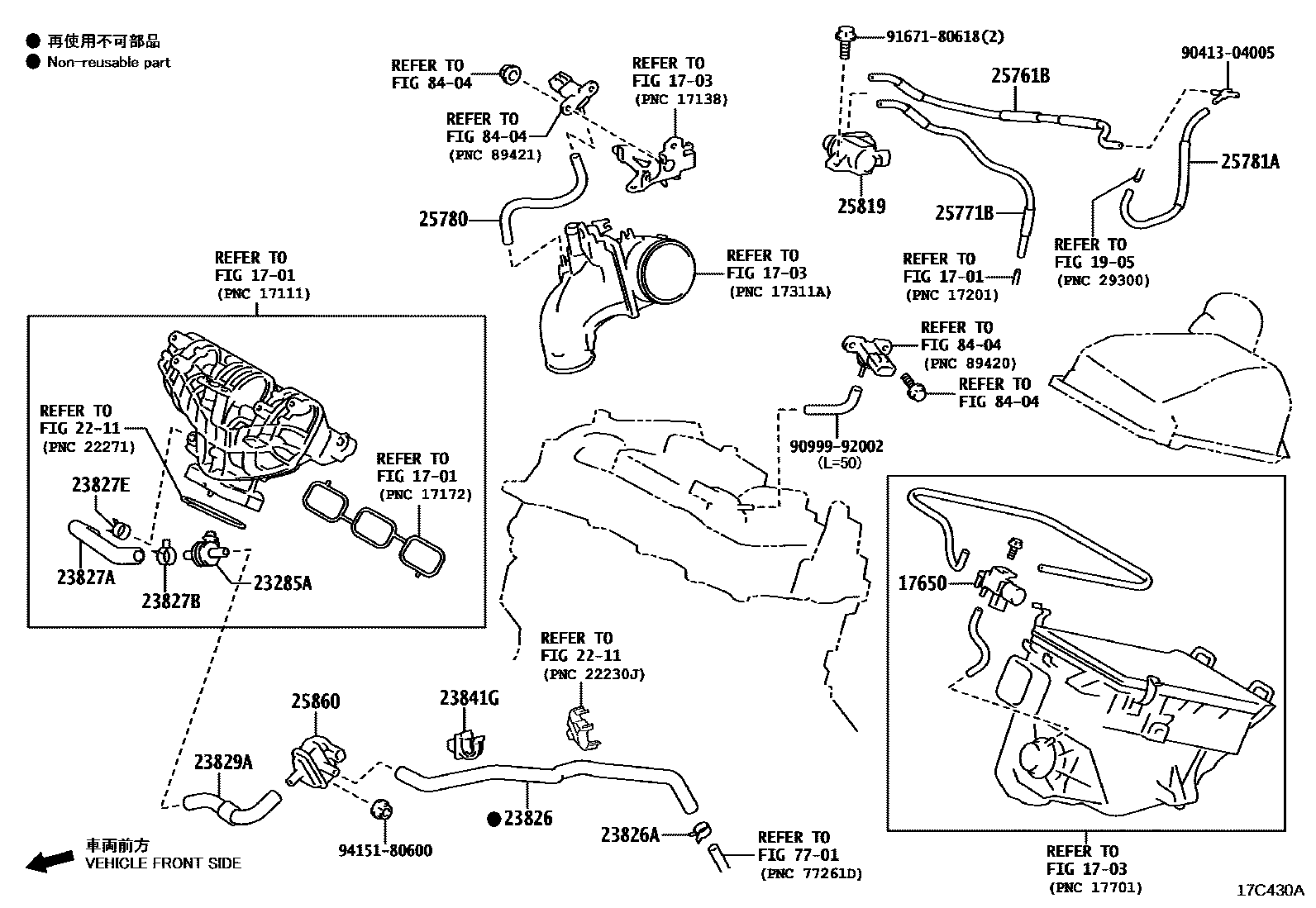

Toyota GR COROLLA — VACUUM PIPING

1701

1703

17650VALVE ASSY, VACUUM SWITCHING

main90910-12088iG16EGTS..GZEA14¥0202210-202409

1905

2211

23285AVALVE, CHECK, NO.1

main25748-25030iG16EGTS..GZEA14¥1,460202405-202409

main25748-36010iG16EGTS..GZEA14..05S¥1,610202210-202404

sub25748-25030¥1,460

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-18030iG16EGTS..GZEA14¥2,500202210-202409

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96136-41901iG16EGTS..GZEA14..02S¥120202210-202409

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-18010iG16EGTS..GZEA14¥940202210-202409

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96136-42201iG16EGTS..GZEA14¥180202210-202409

23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96137-41901iG16EGTS..GZEA14¥160202210-202409

23829AHOSE, FUEL VAPOR FEED

main23826-18010iG16EGTS..GZEA14..02S¥1,040202210-202409

23841GCLAMP, FUEL HOSE

main77196-33040iG16EGTS..GZEA14¥200202210-202409

25761BHOSE, VACCUM TRANSMITTING, NO.1

main25761-18010iG16EGTS..GZEA14¥1,580202210-202409

25771BHOSE, VACCUM TRANSMITTING, NO.2

main25771-18010iG16EGTS..GZEA14¥1,360202210-202409

25780HOSE ASSY, VACUUM TRANSMITTING, NO.3

main25780-18010iG16EGTS..GZEA14¥720202210-202409

25781AHOSE, VACUUM TRANSMITTING, NO.3

main25791-18010iG16EGTS..GZEA14¥1,060202210-202409

25819VALVE ASSY, VACUUM REGULATING

main25819-0W010iG16EGTS..GZEA14¥8,400202210-202409

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-18010iG16EGTS..GZEA14¥3,480202210-202409

7701

8404

9041304005

main90413-04005¥190

9099992002

main90999-92002¥460

9167180618

main91671-80618¥60

9415180600

main94151-80600¥60

25 parts on this diagram · 1 diagram in section
