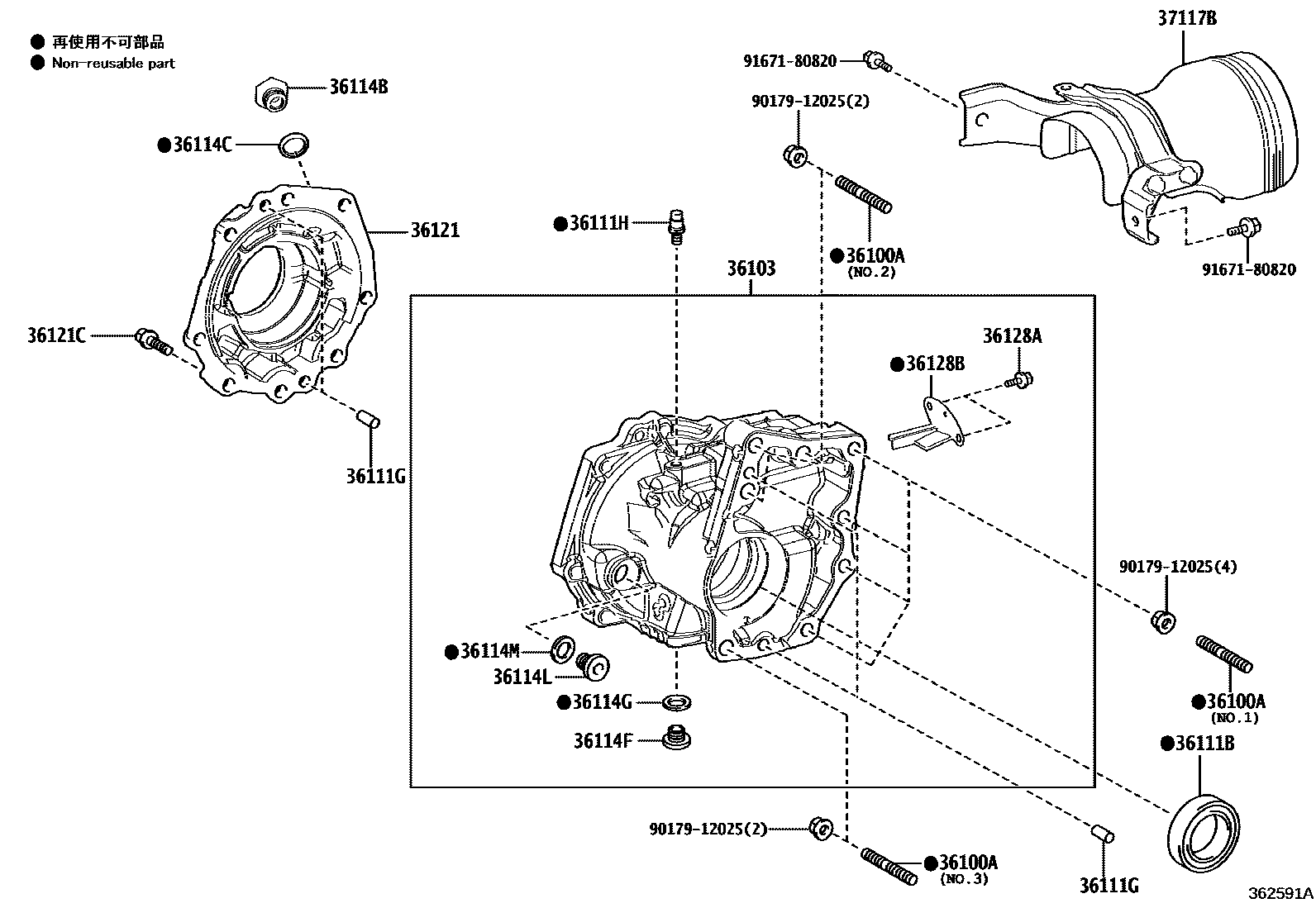

Toyota GR COROLLA — TRANSFER CASE & EXTENSION HOUSING
36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
S=30 & 22,L=64,NO.1:REFER ILLUST.
S=30 & 22,L=64,NO.1:REFER ILLUST.
S=30 & 22,L=64,NO.1:REFER ILLUST.
S=22 & 22,L=73,NO.2:REFER ILLUST.
S=22 & 22,L=73,NO.2:REFER ILLUST.
S=22 & 22,L=73,NO.2:REFER ILLUST.
S=22 & 22,L=53,NO.3:REFER ILLUST.
S=22 & 22,L=53,NO.3:REFER ILLUST.
S=22 & 22,L=53,NO.3:REFER ILLUST.
36103CASE SUB-ASSY, TRANSFER
36111BSEAL, OIL (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=20,OD=10
L=20,OD=10
L=20,OD=10
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36114LPLUG, FILLER(FOR TRANSFER)
36114MGASKET (FOR TRANSFER FILLER PLUG)
36121COVER, TRANSFER CASE, NO.1
36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)
36128ABOLT (FOR BREATHER OIL DEFLECTOR)
36128BDEFLECTOR, BREATHER OIL
37117BINSULATOR, PROPELLER SHAFT HEAT
9017912025
9167180820
18 parts on this diagram · 1 diagram in section
