Toyota GR COROLLA — TIRE PRESSURE WARNING SYSTEM

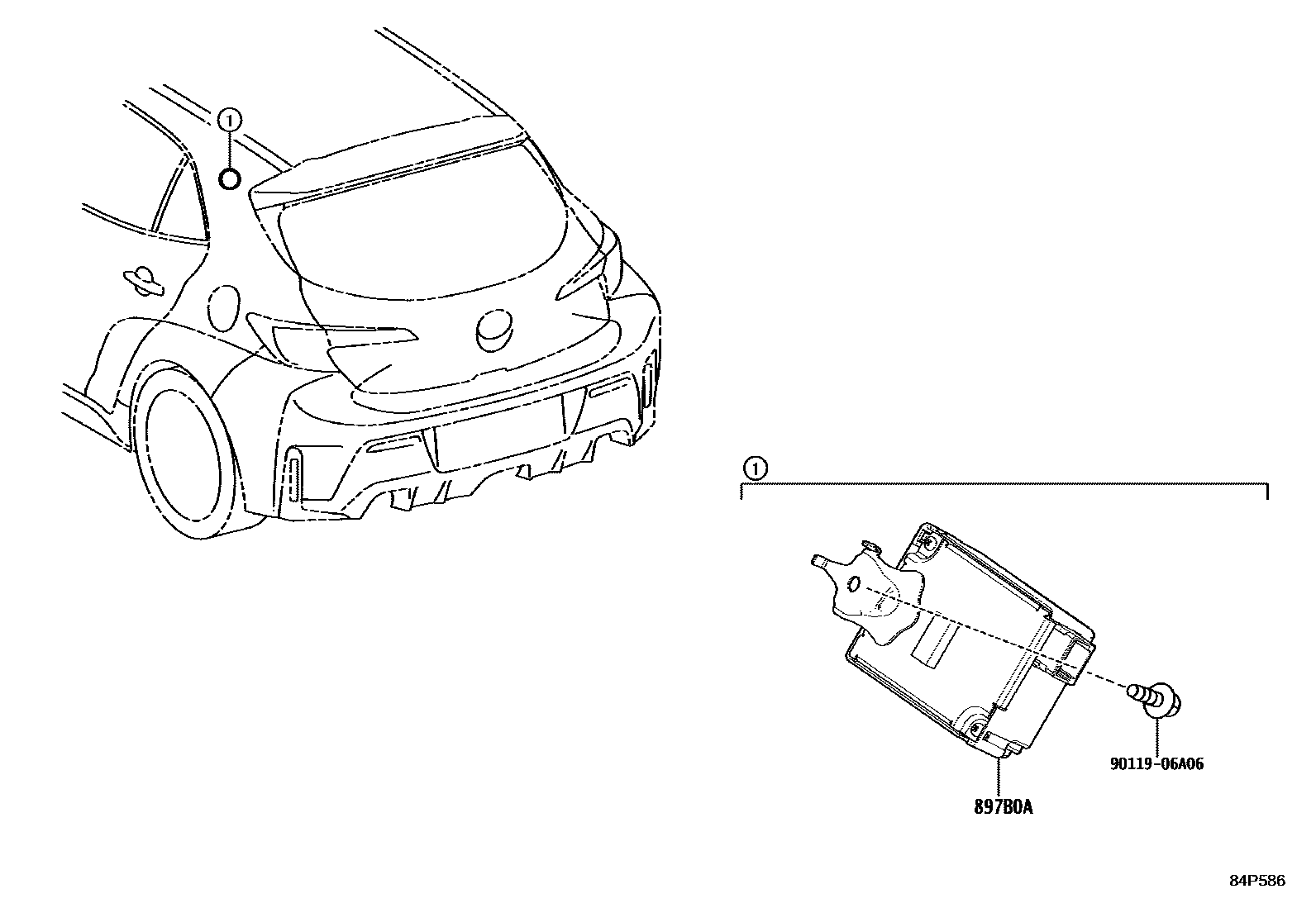

Parts diagram

897B0ARECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-12190i202210-202409

9011906A06

main90119-06A06¥60

2 parts on this diagram · 1 diagram in section
