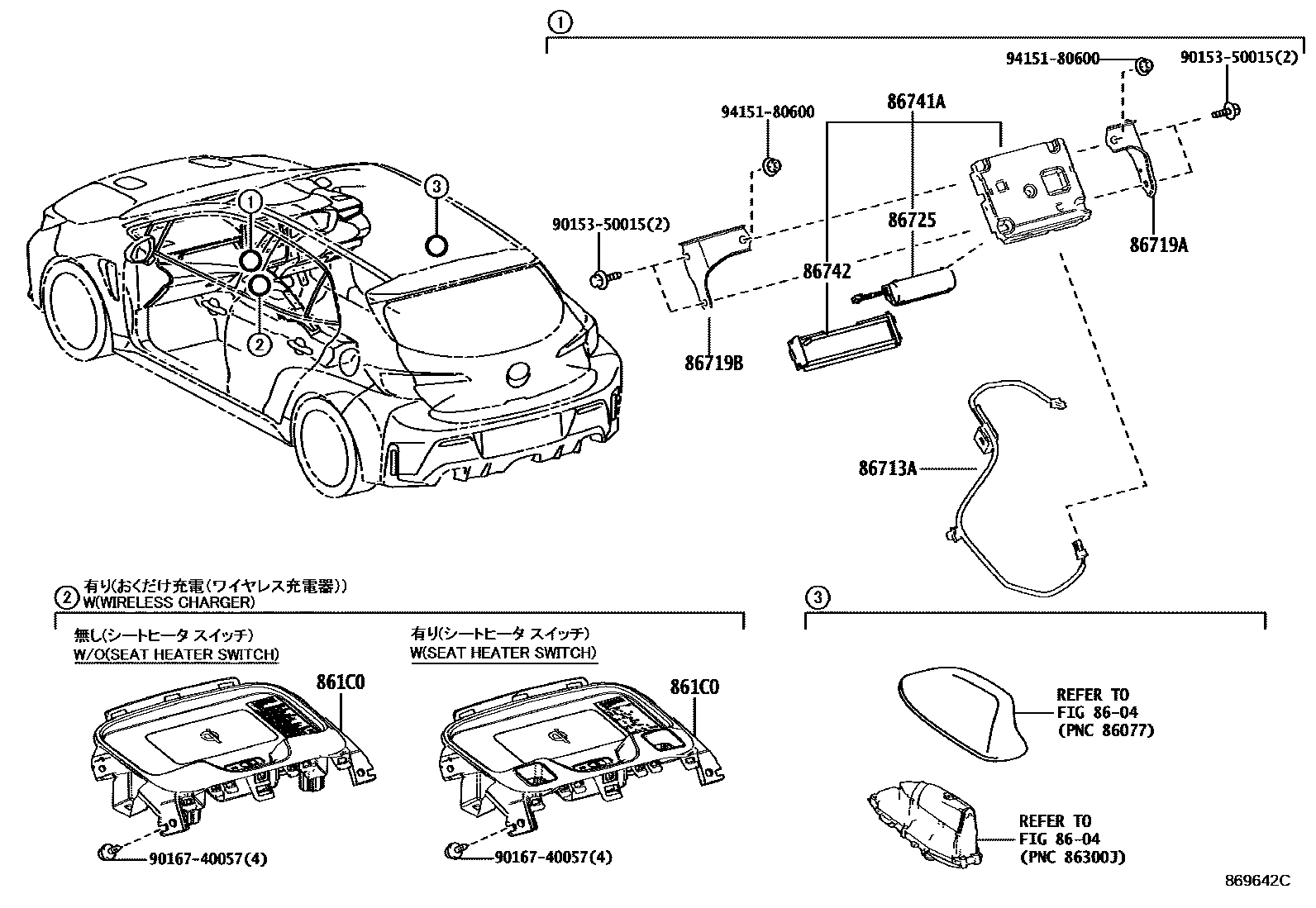

Toyota GR COROLLA — TELEPHONE & MAYDAY

8604

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-12011¥31,600

main861C0-12020¥31,600

86713AWIRE, TELEPHONE COMPUTER, (TO TRANSCEIVER)

main86713-12080iGZEA14202210-202409

86719ABRACKET, TELEPHONE NO.1

main86719-12010iGZEA14¥330202210-202409

86719BBRACKET, TELEPHONE NO.2

main86719-12020iGZEA14¥330202210-202409

86725BATTERY, MOBILEPHONE

main86725-06020iGZEA14202210-202409

86741ATRANSCEIVER, TELEMATICS

main86741-48110iGZEA14202210-202305

main86741-48111iGZEA14202306-202409

86742COVER, TRANSCEIVER

main86742-78010iGZEA14202210-202409

9015350015

main90153-50015¥60

9016740057

main90167-40057¥60

9415180600

main94151-80600¥60

11 parts on this diagram · 1 diagram in section
