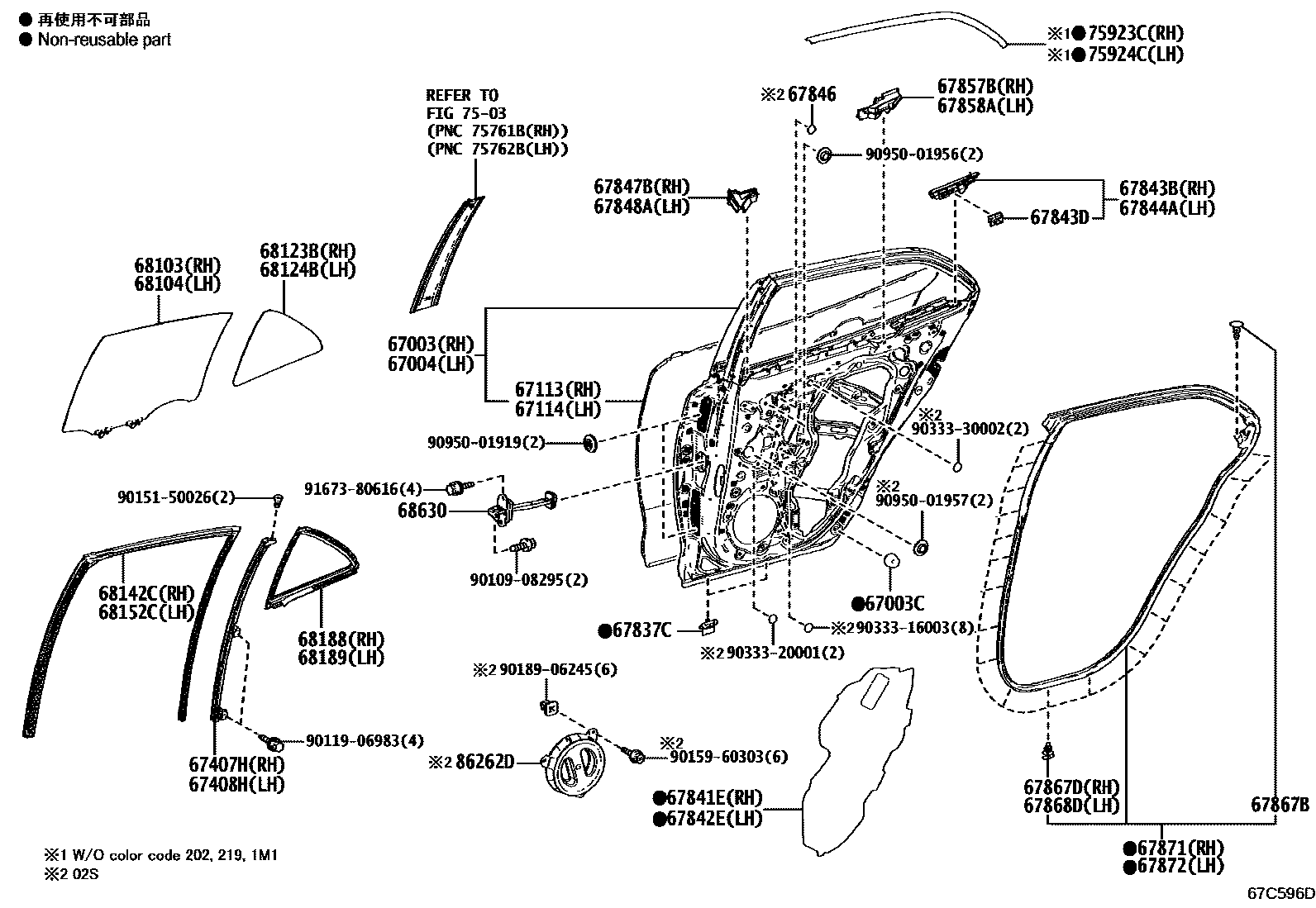

Toyota GR COROLLA — REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH
67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH
67837CSEAL, REAR DOOR DUST PROOF
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH
67843DCLIP, REAR DOOR SERVICE HOLE
67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH
67846SEAL, REAR DOOR SERVICE HOLE
67847BSEAL, REAR DOOR VENT, RH NO.1
67848ASEAL, REAR DOOR VENT, LH NO.1
67857BPROTECTOR, REAR DOOR PANEL, RH
67858APROTECTOR, REAR DOOR PANEL, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630CHECK ASSY, REAR DOOR
7503
75923CTAPE, BLACK OUT, NO.2 RH
0 OR 1PIECE,REF.ILL.
75924CTAPE, BLACK OUT, NO.2 LH
0 OR 1PIECE,REF.ILL.
86262DCOVER, REAR DOOR SPEAKER
9010908295
9011906983
9015150026
9015960303
9018906245
9033316003
9033320001
9033330002
9095001919
9095001956
9095001957
9167380616
48 parts on this diagram · 2 diagrams in section
