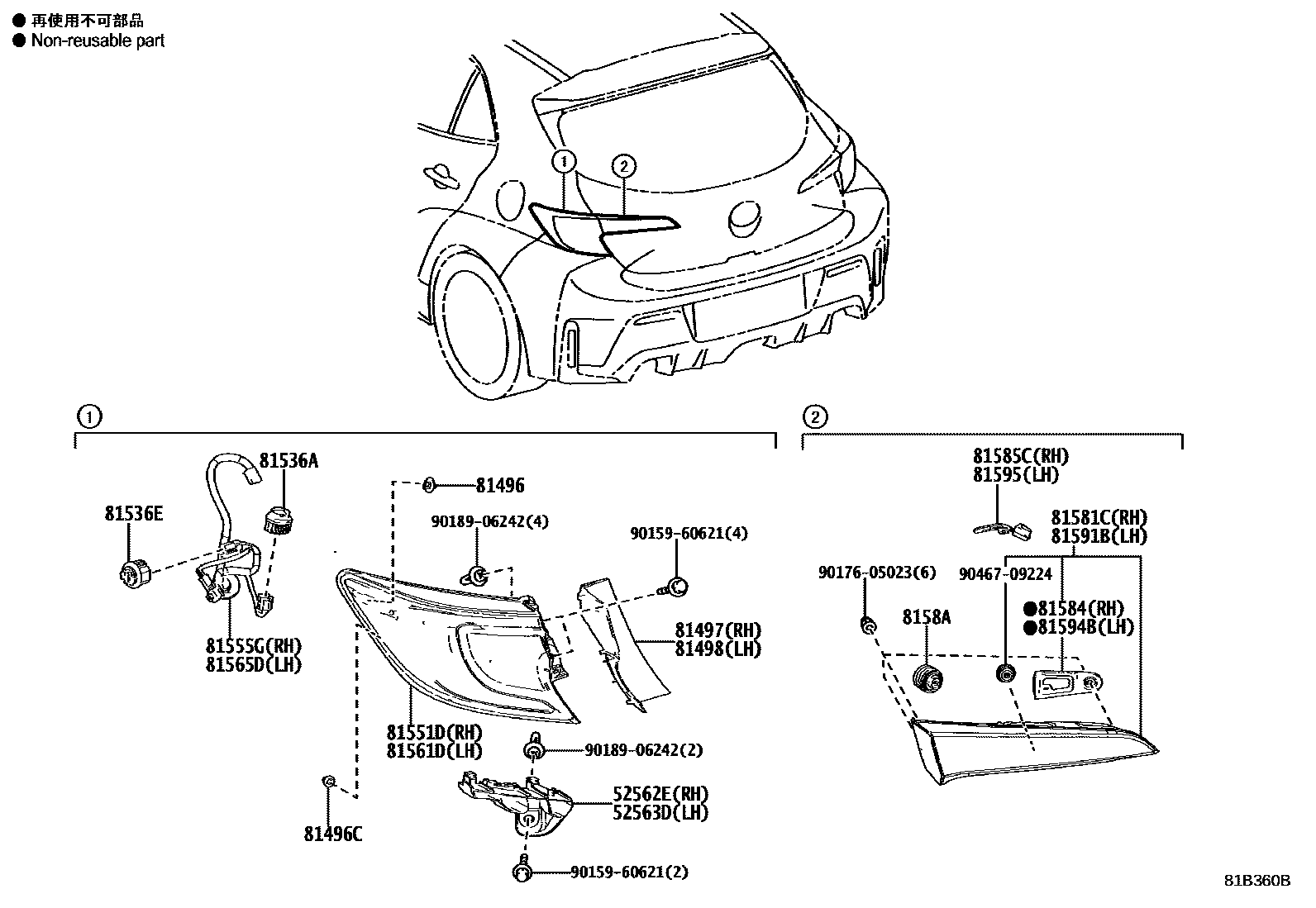

Toyota GR COROLLA — REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-12240iGZEA14¥1,480202409

main52562-12240iGZEA14..02S¥1,480202210-202304

main52562-12240iGZEA14..05S¥1,480202210-202409

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-12240iGZEA14¥1,480202409

main52563-12240iGZEA14..02S¥1,480202210-202304

main52563-12240iGZEA14..05S¥1,480202210-202409

81496GUIDE, REAR COMBINATION LAMP

main81496-50010iGZEA14¥90202409

main81496-50010iGZEA14..02S¥90202210-202304

main81496-50010iGZEA14..05S¥90202210-202409

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020iGZEA14¥70202409

main81496-52020iGZEA14..02S¥70202210-202304

main81496-52020iGZEA14..05S¥70202210-202409

81497COVER, REAR COMBINATION LAMP, RH

main81497-12020iGZEA14¥1,180202409

main81497-12020iGZEA14..02S¥1,180202210-202304

main81497-12020iGZEA14..05S¥1,180202210-202409

81498COVER, REAR COMBINATION LAMP, LH

main81498-12020iGZEA14¥1,180202409

main81498-12020iGZEA14..02S¥1,180202210-202304

main81498-12020iGZEA14..05S¥1,180202210-202409

81536ALED, REAR COMBINATION LAMP

main81536-12D30iGZEA14¥3,670202409

main81536-12D30iGZEA14..02S¥3,670202210-202304

main81536-12D30iGZEA14..05S¥3,670202210-202409

81536ELED, STOP LAMP

main81965-70010iGZEA14¥3,210202409

main81965-70010iGZEA14..02S¥3,210202210-202304

main81965-70010iGZEA14..05S¥3,210202210-202409

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-12E50iGZEA14202409

main81551-12E50iGZEA14..02S202210-202304

main81551-12E50iGZEA14..05S202210-202409

81555GCORD, REAR COMBINATION LAMP, RH

main81555-12D30iGZEA14¥1,540202409

main81555-12D30iGZEA14..02S¥1,540202210-202304

main81555-12D30iGZEA14..05S¥1,540202210-202409

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-12E50iGZEA14202409

main81561-12E50iGZEA14..02S202210-202304

main81561-12E50iGZEA14..05S202210-202409

81565DCORD, REAR COMBINATION LAMP, LH

main81565-12D30iGZEA14¥1,540202409

main81565-12D30iGZEA14..02S¥1,540202210-202304

main81565-12D30iGZEA14..05S¥1,540202210-202409

81581CLENS AND BODY, REAR LAMP, RH

main81581-12440iGZEA14¥15,400202409

main81581-12440iGZEA14..02S¥15,400202210-202304

main81581-12440iGZEA14..05S¥15,400202210-202409

81584PACKING, REAR LAMP RH

main81582-12260iGZEA14¥70202409

main81582-12260iGZEA14..02S¥70202210-202304

main81582-12260iGZEA14..05S¥70202210-202409

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-12260iGZEA14¥1,040202409

main81585-12260iGZEA14..02S¥1,040202210-202304

main81585-12260iGZEA14..05S¥1,040202210-202409

8158ALED, REAR LAMP

main8158A-12260iGZEA14¥5,100202409

main8158A-12260iGZEA14..02S¥5,100202210-202304

main8158A-12260iGZEA14..05S¥5,100202210-202409

81591BLENS AND BODY, REAR LAMP, LH

main81591-12440iGZEA14¥15,400202409

main81591-12440iGZEA14..02S¥15,400202210-202304

main81591-12440iGZEA14..05S¥15,400202210-202409

81594BPACKING, REAR LAMP LH

main81582-12260iGZEA14¥70202409

main81582-12260iGZEA14..02S¥70202210-202304

main81582-12260iGZEA14..05S¥70202210-202409

81595SOCKET & WIRE, REAR LAMP, LH

main81585-12260iGZEA14¥1,040202409

main81585-12260iGZEA14..02S¥1,040202210-202304

main81585-12260iGZEA14..05S¥1,040202210-202409

9015960621

main90159-60621¥60

9017605023

main90176-05023¥80

9018906242

main90189-06242¥70

9046709224

main90467-09224¥80

23 parts on this diagram · 1 diagram in section
