Toyota GR COROLLA — PARTIAL ENGINE ASSEMBLY

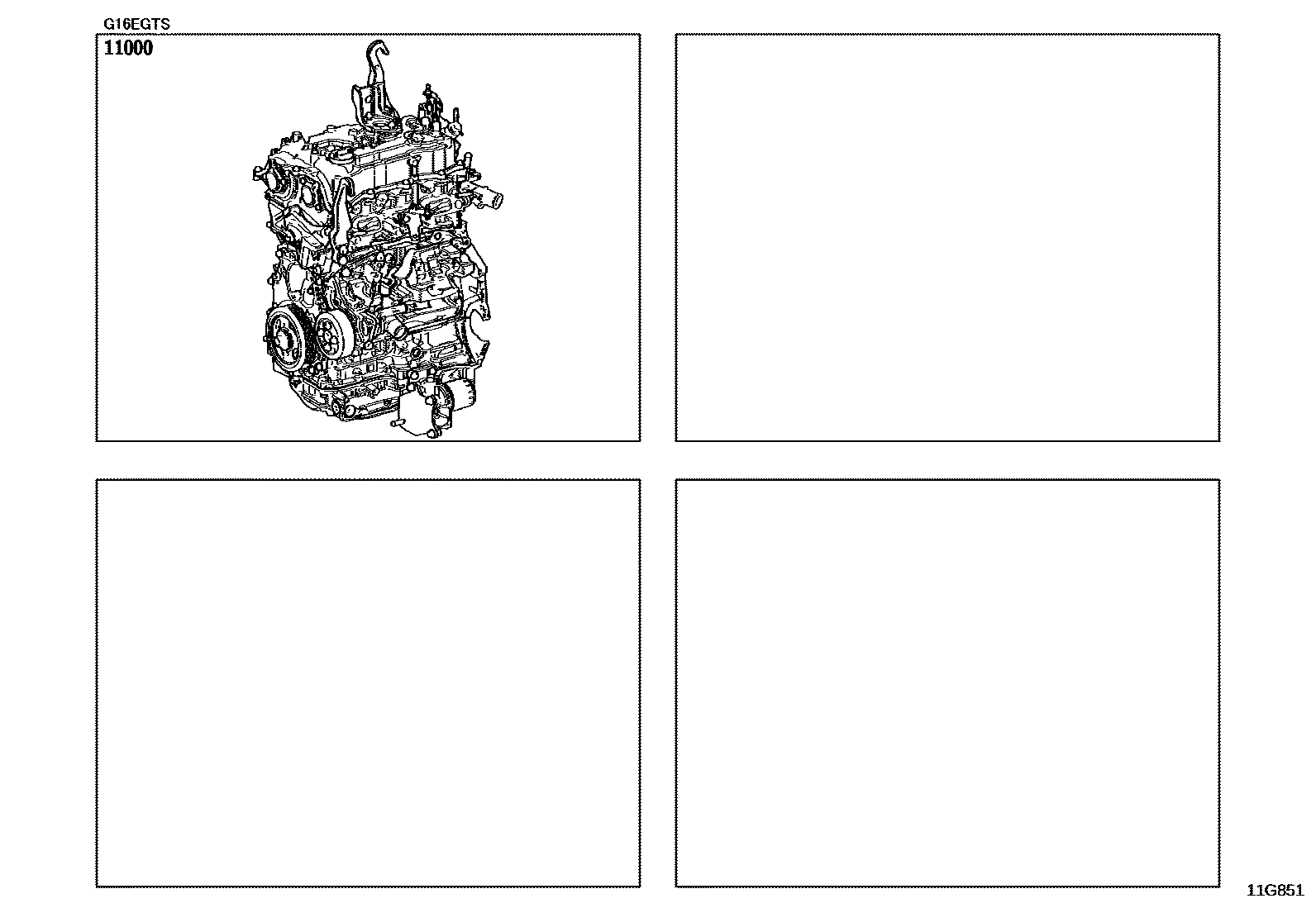

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-18220i¥950,000202210-202409

main19000-18240i¥1,045,000202409-202411

main19000-18242i¥950,000202411

1 parts on this diagram · 1 diagram in section
