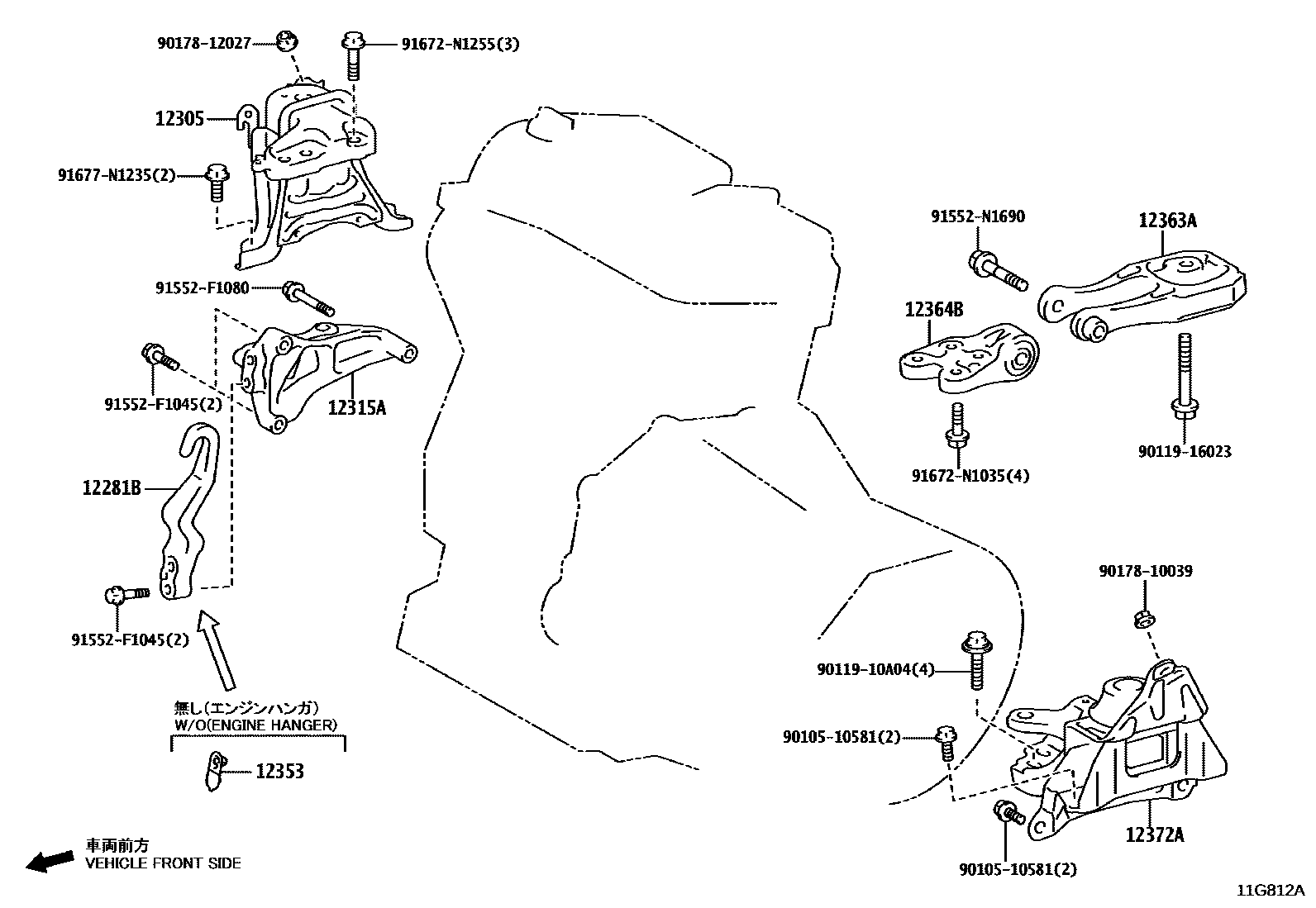

Toyota GR COROLLA — MOUNTING

12281BHANGER, ENGINE, NO.1

main12281-25030iG16EGTS..GZEA14..05S¥4,100202210-202409

main12281-25030iG16EGTS..GZEA14..02S¥4,100202210-202304

main12281-25030iG16EGTS..GZEA14¥4,100202409

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-18060iG16EGTS..GZEA14..02S¥13,200202210-202304

main12305-18060iG16EGTS..GZEA14..6F¥13,200202409

main12305-18060iG16EGTS..GZEA14..05S¥13,200202210-202409

main12305-18090iG16EGTS..GZEA14..8FC¥14,400202409

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-18010iG16EGTS..GZEA14..05S¥4,010202210-202409

main12315-18010iG16EGTS..GZEA14¥4,010202409

main12315-18010iG16EGTS..GZEA14..02S¥4,010202210-202304

12353CAP, ENGINE MOUNTING BRACKET

main12353-15010iG16EGTS..GZEA14..05S¥190202210-202409

main12353-15010iG16EGTS..GZEA14¥190202409

main12353-15010iG16EGTS..GZEA14..02S¥190202210-202304

12363AROD, ENGINE MOVING CONTROL

main12363-18010iG16EGTS..GZEA14..05S¥5,400202210-202409

main12363-18010iG16EGTS..GZEA14..02S¥5,400202210-202304

main12363-18010iG16EGTS..GZEA14..6F¥5,400202409

main12363-18030iG16EGTS..GZEA14..8FC¥5,400202409

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-18020iG16EGTS..GZEA14..05S¥4,210202210-202409

main12364-18020iG16EGTS..GZEA14..6F¥4,210202409

main12364-18020iG16EGTS..GZEA14..02S¥4,210202210-202304

main12364-18040iG16EGTS..GZEA14..8FC¥4,800202409

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-18020iG16EGTS..GZEA14¥9,300202210-202408

sub12372-18021¥8,400

main12372-18021iG16EGTS..GZEA14..6F¥8,400202409

main12372-18070iG16EGTS..GZEA14..8FC¥11,400202409

9010510581

main90105-10581¥100

9011910A04

main90119-10A04¥210

9011916023

main90119-16023¥490

9017810039

main90178-10039¥100

9017812027

main90178-12027¥100

91552F1045

main91552-F1045¥120

91552F1080

main91552-F1080¥190

91552N1690

main91552-N1690¥430

91672N1035

main91672-N1035¥120

91672N1255

main91672-N1255¥240

91677N1235

main91677-N1235¥190

18 parts on this diagram · 1 diagram in section
