Toyota GR COROLLA — METER

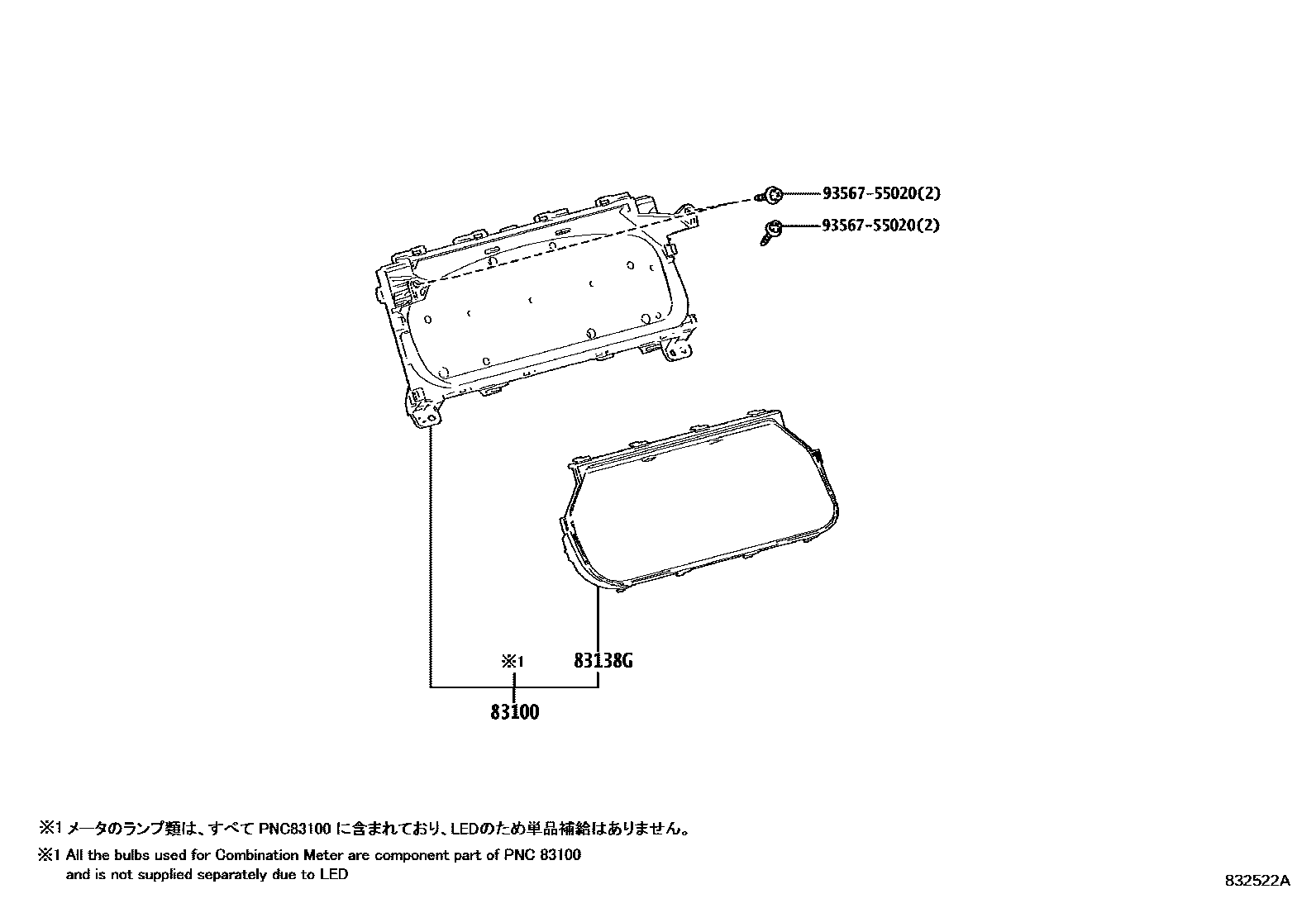

Parts diagram
83100METER ASSY, COMBINATION
main83800-1AQ70i202210-202304
DENSO
sub83800-1AQ71
main83800-1AQ70i202210-202305
DENSO
sub83800-1AQ71
main83800-1AQ71i202306-202309
DENSO
sub83800-1AQ72
main83800-1AQ72i202309-202311
DENSO
sub83800-1AQ73
main83800-1AQ73i202311-202409
DENSO
main83800-1AQ90i202210-202305
DENSO
sub83800-1AQ91
main83800-1AQ90i202210-202304
DENSO
sub83800-1AQ91
main83800-1AQ91i202306-202309
DENSO
main83800-1AQ92i202309-202311
DENSO
main83800-1AQ93i202311-202409
DENSO
main83800-1AS90i202409
DENSO
main83800-1AV40i202409
DENSO
83138GGLASS, COMBINATION METER
main83852-16760i¥1,750202409
main83852-16760i¥1,750202210-202304
main83852-16760i¥1,750202210-202409
9356755020
main93567-55020¥70

3 parts on this diagram · 2 diagrams in section
