Toyota GR COROLLA — INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

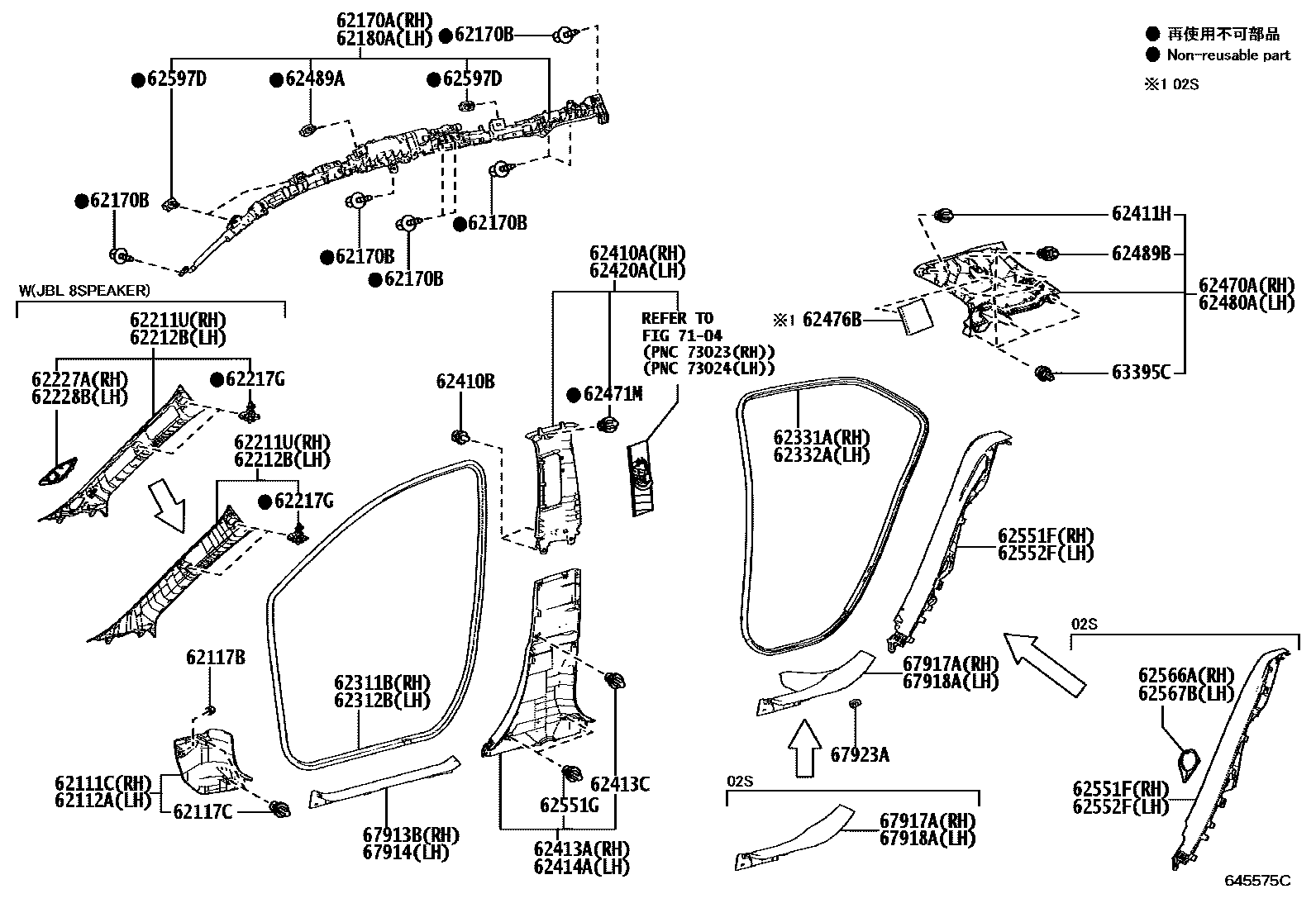

Parts diagram
62111CBOARD, COWL SIDE TRIM, RH
main62111-12390-C0i202212-202304
BLACK,TRIM3#
main62111-12390-C0i202409
BLACK,TRIM2#,3#
main62111-12390-C0i202210-202409
BLACK,TRIM2#,3#
62112ATRIM SUB-ASSY, COWL SIDE, LH
main62112-12430-C0i202409
BLACK,TRIM2#,3#
main62112-12430-C0i202212-202304
BLACK,TRIM3#
main62112-12430-C0i202210-202409
BLACK,TRIM2#,3#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
main90467-06147i¥80202409
main90467-06147i¥80202210-202304
main90467-06147i¥80202210-202409
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
main90467-10167i¥90202409
main90467-10167i¥90202210-202304
main90467-10167i¥90202210-202409
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-12320i202409
main62170-12320i202210-202304
main62170-12320i202210-202409
62170BBOLT, W/WASHER
main91673-80616i¥60202409
main91673-80616i¥60202210-202304
main91673-80616i¥60202210-202409
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-12320i202409
main62180-12320i202210-202304
main62180-12320i202210-202409
62211UGARNISH ASSY, FRONT PILLAR, RH
main62210-12160-C0i202409
BLACK,TRIM2#
main62210-12160-C0i202212-202304
BLACK,TRIM3#
main62210-12160-C0i202210-202409
BLACK,TRIM2#,3#
62212BGARNISH ASSY, FRONT PILLAR, LH
main62220-12160-C0i202409
BLACK,TRIM2#
main62220-12160-C0i202212-202304
BLACK,TRIM3#
main62220-12160-C0i202210-202409
BLACK,TRIM2#,3#
62217GCLIP, FRONT PILLAR GARNISH
main62217-42050i¥140202409
main62217-42050i¥140202210-202304
main62217-42050i¥140202210-202409
62227AGRILLE, SPEAKER FRONT PILLAR GARNISH, RH
62228BGRILLE, SPEAKER FRONT PILLAR GARNISH, LH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-12290i¥5,400202409
main62311-12290i¥5,400202210-202304
main62311-12290i¥5,400202210-202409
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-12300i¥5,400202409
main62312-12300i¥5,400202210-202304
main62312-12300i¥5,400202210-202409
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-12300i¥4,850202409
main62331-12300i¥4,850202210-202304
main62331-12300i¥4,850202210-202409
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-12300i¥4,850202409
main62332-12300i¥4,850202210-202304
main62332-12300i¥4,850202210-202409
62410AGARNISH ASSY, CENTER PILLAR, RH
main62410-12120-C0i202409
BLACK,TRIM2#,3#
main62410-12120-C0i202212-202304
BLACK,TRIM3#
main62410-12120-C0i202210-202409
BLACK,TRIM2#,3#
62410BCLIP
main90467-10216i¥100202409
main90467-10216i¥100202210-202304
main90467-10216i¥100202210-202409
62411HCLIP
main90467-10188i¥80202409
main90467-10188i¥80202210-202304
main90467-10188i¥80202210-202409
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-12360-C0i202409
BLACK,TRIM2#,3#
main62413-12360-C0i202212-202304
BLACK,TRIM3#
main62413-12360-C0i202210-202409
BLACK,TRIM2#,3#
62413CCLIP (FOR CENTER LOWER GARNISH)
main90467-10161i¥90202210-202304
main90467-10161i¥90202409
main90467-10161i¥90202210-202409
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-12350-C0i202212-202304
BLACK,TRIM3#
main62414-12350-C0i202210-202409
BLACK,TRIM2#,3#
main62414-12350-C0i202409
BLACK,TRIM2#,3#
62420AGARNISH ASSY, CENTER PILLER, LH
main62420-12120-C0i202409
BLACK,TRIM2#,3#
main62420-12120-C0i202212-202304
BLACK,TRIM3#
main62420-12120-C0i202210-202409
BLACK,TRIM2#,3#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
main62470-12280-C0i202409
BLACK,TRIM2#,3#
main62470-12280-C0i202212-202304
BLACK,TRIM3#
main62470-12280-C0i202210-202409
BLACK,TRIM2#,3#
62471MCLIP
main90467-10167i¥90202409
main90467-10167i¥90202210-202304
main90467-10167i¥90202210-202409
62476BCAP, ROOF SIDE INNER GARNISH, NO.1
main62476-12040i¥1,100202212-202304
62480AGARNISH ASSY, ROOF SIDE, INNER LH
main62480-12280-C0i202409
BLACK,TRIM2#,3#
main62480-12280-C0i202212-202304
BLACK,TRIM3#
main62480-12280-C0i202210-202409
BLACK,TRIM2#,3#
62489ACLIP, ROOF SIDE INNER GARNISH
main62489-28010i¥360202409
main62489-28010i¥360202210-202304
main62489-28010i¥360202210-202409
62489BCLIP, ROOF SIDE INNER GARNISH
main90467-09236i¥80202409
main90467-09236i¥80202210-202304
main90467-09236i¥80202210-202409
62551FGARNISH, REAR SEAT SIDE, RH
main62551-12390-C0i202409
BLACK,TRIM2#,3#
main62551-12390-C0i202210-202409
BLACK,TRIM2#,3#
main62551-12400-C0i202212-202304
BLACK,TRIM3#
62551GCLIP
main90467-10161i¥90202210-202409
main90467-10161i¥90202409
main90467-10161i¥90202210-202304
62552FGARNISH, REAR SEAT SIDE, LH
main62552-12380-C0i202210-202409
BLACK,TRIM2#,3#
main62552-12380-C0i202409
BLACK,TRIM2#,3#
main62552-12390-C0i202212-202304
BLACK,TRIM3#
62566ACOVER, REAR PILLAR, RH
main62566-12050-C0i202212-202304
BLACK,TRIM3#
62567BCOVER, REAR PILLAR, LH
main62567-12020-C0i202212-202304
BLACK,TRIM3#
62597DCLIP
main90467-18017i¥180202409
main90467-18017i¥180202210-202304
main90467-18017i¥180202210-202409
63395CCLIP(FOR ROOF SIDE INNER GARNISH)
main90467-09240i¥80202409
main90467-09240i¥80202210-202304
main90467-09240i¥80202210-202409
67913BPLATE, FRONT DOOR SCUFF, RH
main67913-12340-C0i202210-202409
BLACK,TRIM2#,3#
main67913-12340-C0i202409
BLACK,TRIM2#,3#
main67913-12340-C0i202212-202304
BLACK,TRIM3#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-12300-C0i202212-202304
BLACK,TRIM3#
main67914-12300-C0i202210-202409
BLACK,TRIM2#,3#
main67914-12300-C0i202409
BLACK,TRIM2#,3#
67917APLATE, REAR DOOR SCUFF, RH
main67917-12230-C0i202212-202304
BLACK,TRIM3#
main67917-12280-C0i202409
BLACK,TRIM2#,3#
main67917-12280-C0i202210-202409
BLACK,TRIM2#,3#
67918APLATE, REAR DOOR SCUFF, LH
main67918-12220-C0i202212-202304
BLACK,TRIM3#
main67918-12270-C0i202409
BLACK,TRIM2#,3#
main67918-12270-C0i202210-202409
BLACK,TRIM2#,3#
67923ACLAMP, DOOR SCUFF PLATE, NO.1
main67923-20090i¥110202409
main67923-20090i¥110202210-202304
main67923-20090i¥110202210-202409
7104

42 parts on this diagram · 1 diagram in section
