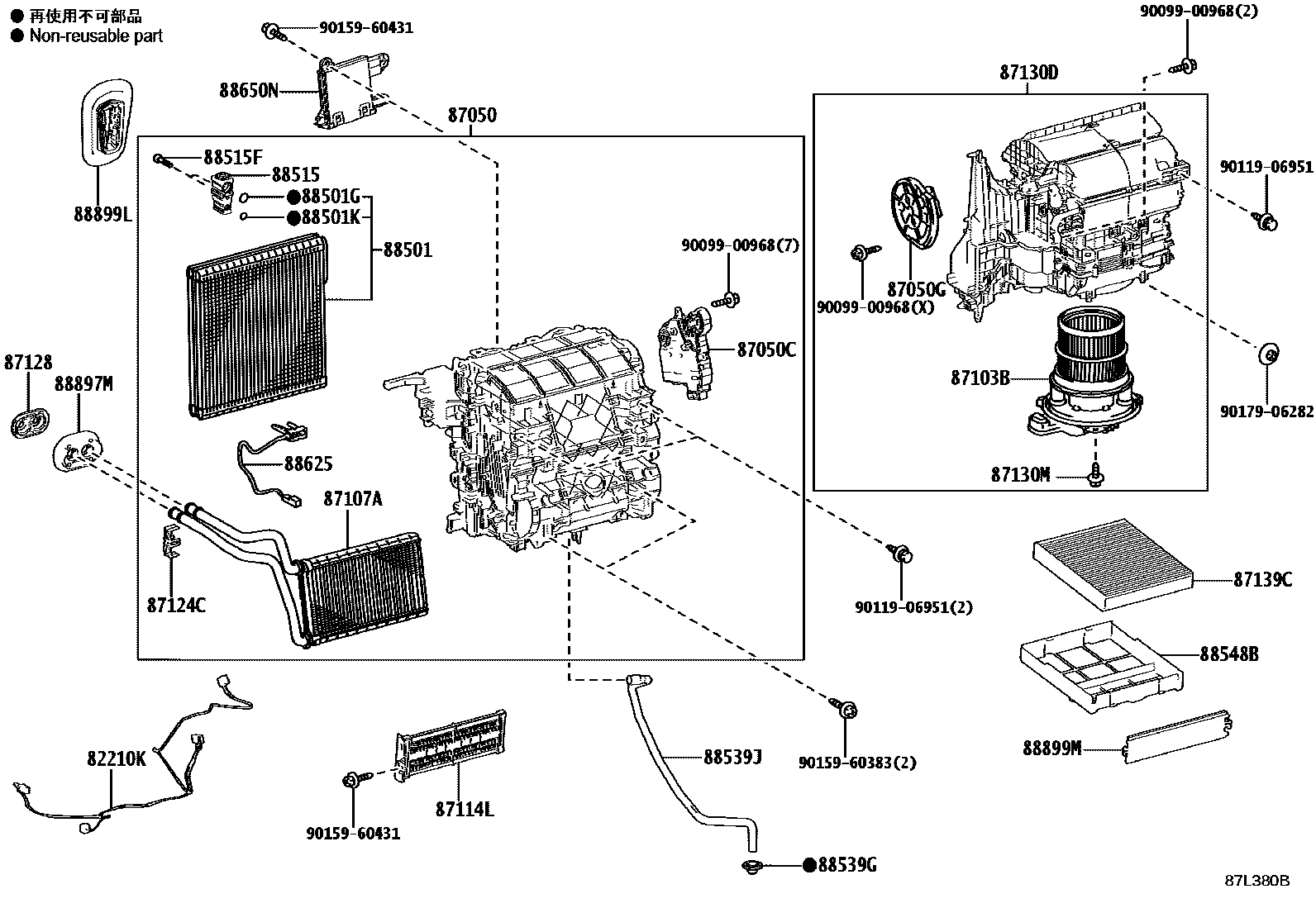

Toyota GR COROLLA — HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87050RADIATOR ASSY, AIR CONDITIONER
87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87050GDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.5
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87114LCOVER, HEATER, NO.2
87124CCLAMP, HEATER
87128GROMMET, HEATER
87130DBLOWER ASSY
87130MSCREW(FOR BLOWER)
87139CFILTER, CLEAN AIR
POLLEN FILTER
POLLEN FILTER
POLLEN FILTER
DEODORANT FILTER
DEODORANT FILTER
DEODORANT FILTER
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
ID=13.4,OD=18.2
ID=13.4,OD=18.2
ID=13.4,OD=18.2
88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)
ID=10.8,OD=15.6
ID=10.8,OD=15.6
ID=10.8,OD=15.6
88515VALVE, COOLER EXPANSION
88515FBOLT(FOR COOLER EXPANSION VALVE)
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88539JHOSE, DRAIN COOLER
88548BCASE, AIR FILTER
88625THERMISTOR, COOLER, NO.1
88897MGROMMET (FOR HEATER PIPE)
88899LPARTS, COOLING UNIT
88899MPLATE, COVER(FOR AIR FILTER)
9009900968
main90099-00968
9011906951
9015960383
9015960431
9017906282
30 parts on this diagram · 2 diagrams in section
