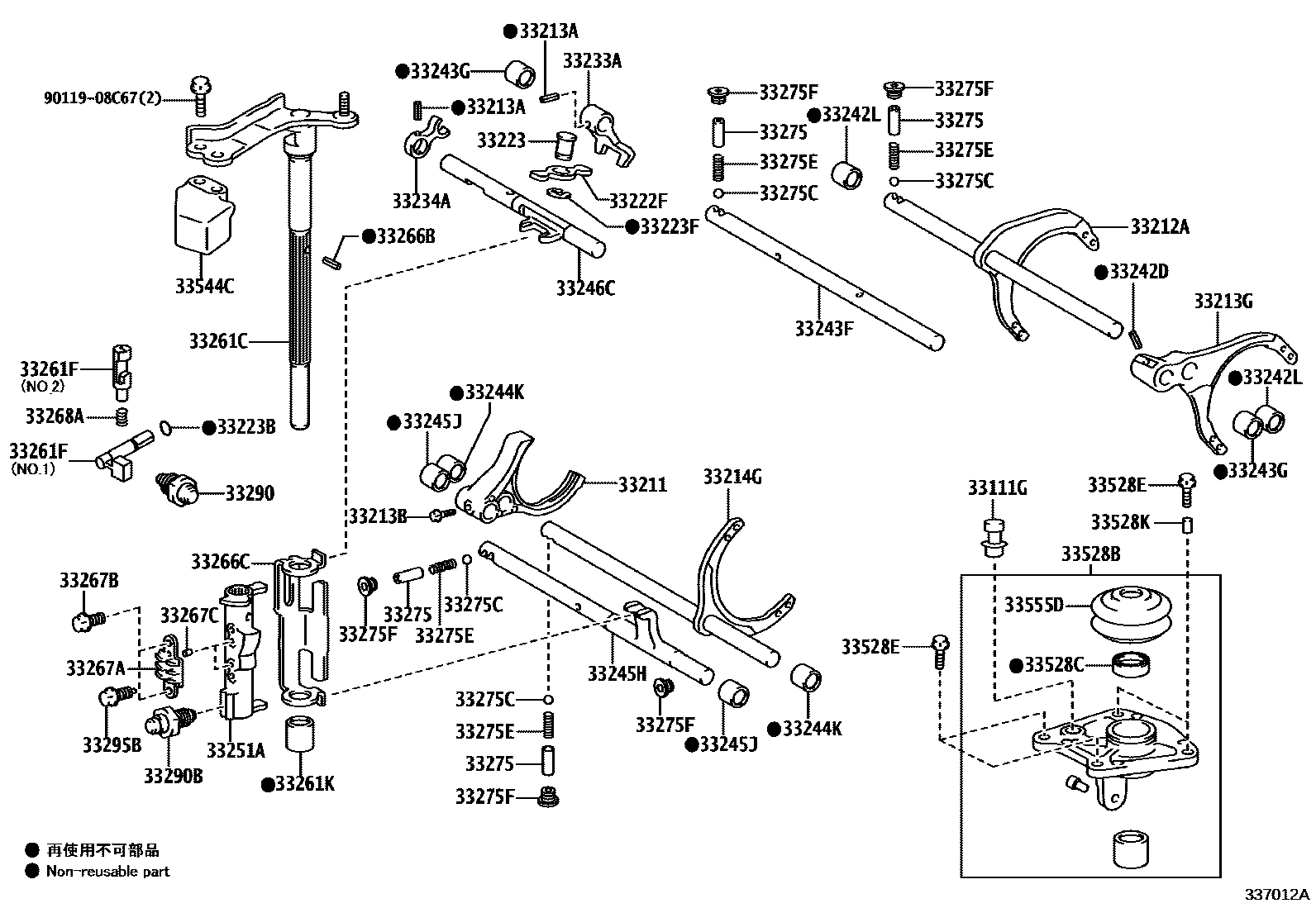

Toyota GR COROLLA — GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33211FORK, REVERSE SHIFT
33212AFORK, GEAR SHIFT, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33222FARM, SHIFT
33223PIVOT, SHIFT ARM
33223BRING, O(FOR SHIFT ARM PIVOT)
33223FRING, E(FOR SHIFT FORK LOCK PLATE PIVOT)
33233AHEAD, GEAR SHIFT, NO.2
33234AHEAD, GEAR SHIFT, NO.3
33242DPIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT)
33242LBEARING (FOR SHIFT FORK SHAFT)
33243FSHAFT , 3RD & 4TH SHIFT FORK
33243GBEARING ( FOR SHIFT FORK SHAFT)
33244KBEARING (FOR SHIFT FORK SHAFT)
33245HSHAFT , REVERSE SHIFT FORK
33245JBEARING(FOR SHIFT FORK SHAFT)
33246CSHAFT, GEAR SHIFT FORK, NO.5
33251ALEVER, SHIFT, INNER NO.1
33261CSHAFT, SHIFT & SELECT LEVER
33261FPIN, STRAIGHT (FOR SHIFT & SELECT LEVER SHAFT)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
33261KBEARING, NEEDLE ROLLER (FOR SHIFT & SELECT LEVER SHAFT)
33266BPIN, SHIFT INTERLOCK, NO.3
33266CPLATE, SHIFT INTERLOCK
33267APLATE, SHIFT GATE
33267BBOLT (FOR SHIFT GATE PLATE)
33267CPIN, STRAIGHT(FOR SHIFT GATE PLATE)
33268ASPRING, TORSION (FOR SHIFT INTERLOCK PLATE SET BOLT)
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=10.7
33275CBALL (FOR SHIFT DETENT)
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
33275FPLUG (FOR SHIFT DETENT BALL)
33290BALL ASSY, LOCK, NO.1
33290BBALL ASSY, LOCK, NO.2
33295BPIN, SHIFT GATE
33528BCOVER, CONTROL SHAFT
33528CSEAL, OIL (FOR CONTROL SHAFT COVER)
33528EBOLT (FOR CONTROL SHAFT COVER)
*8-1.25PX30-30
33528KPIN, RING (FOR CONTROL SHAFT COVER SET BOLT)
33544CDAMPER, SHIFT LEVER
33555DBOOT, SHIFT LEVER
9011908C67
45 parts on this diagram · 1 diagram in section
