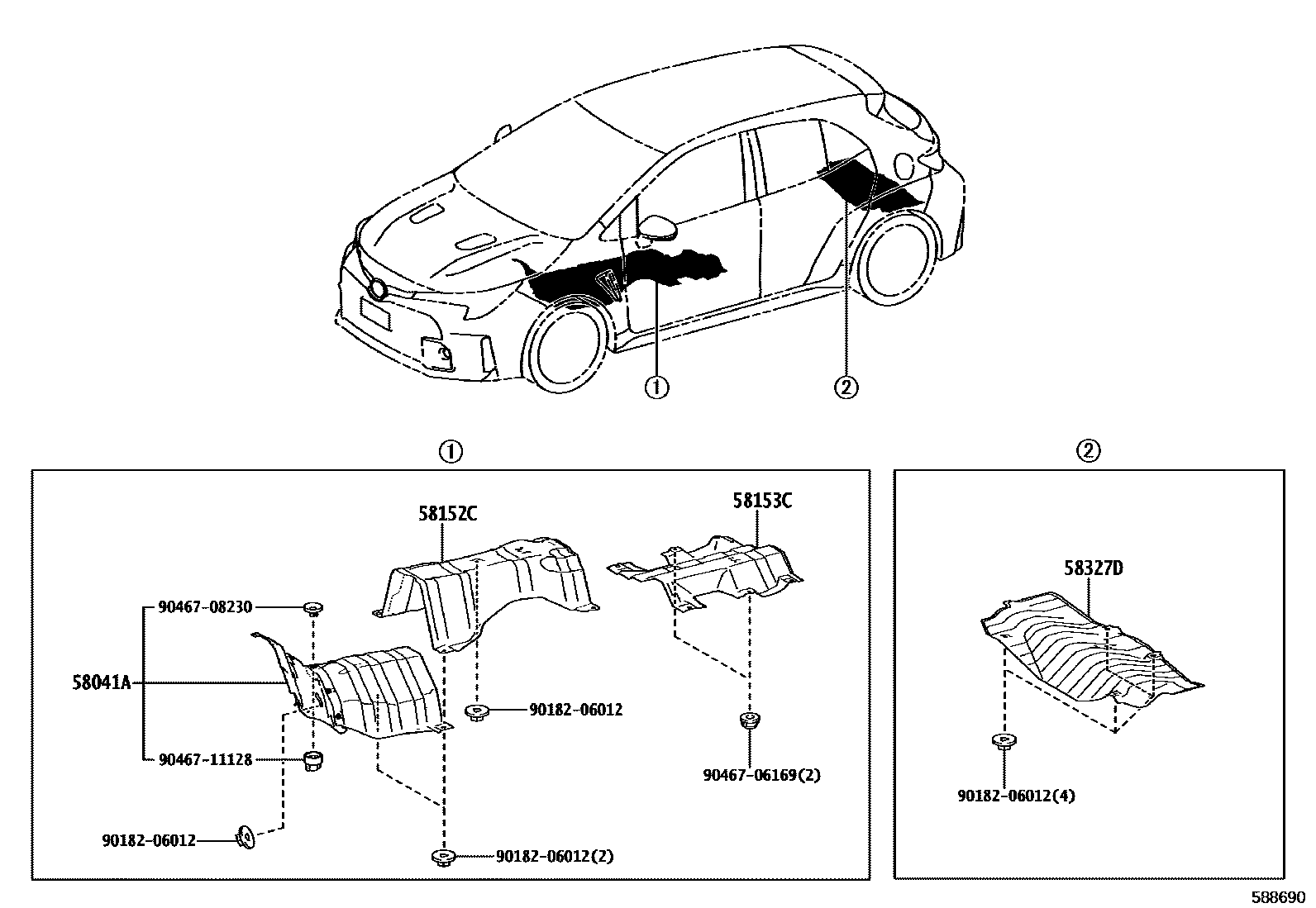

Toyota GR COROLLA — FLOOR INSULATOR

58041AINSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1

main58041-12160iGZEA14202409

main58041-12160iGZEA14..02S202210-202304

main58041-12160iGZEA14..05S202210-202409

58152CINSULATOR, FLOOR HEAT, NO.2

main58152-12120iGZEA14202409

main58152-12120iGZEA14..02S202210-202304

main58152-12120iGZEA14..05S202210-202409

58153CINSULATOR, FLOOR HEAT, NO.3

main58153-10040iGZEA14¥2,840202409

main58153-10040iGZEA14..02S¥2,840202210-202304

main58153-10040iGZEA14..05S¥2,840202210-202409

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-12290iGZEA14¥4,350202409

main58327-12290iGZEA14..02S¥4,350202210-202304

main58327-12290iGZEA14..05S¥4,350202210-202409

9018206012

main90182-06012¥60

9046706169

main90467-06169¥80

9046708230

main90467-08230¥80

9046711128

main90467-11128¥120

8 parts on this diagram · 1 diagram in section
