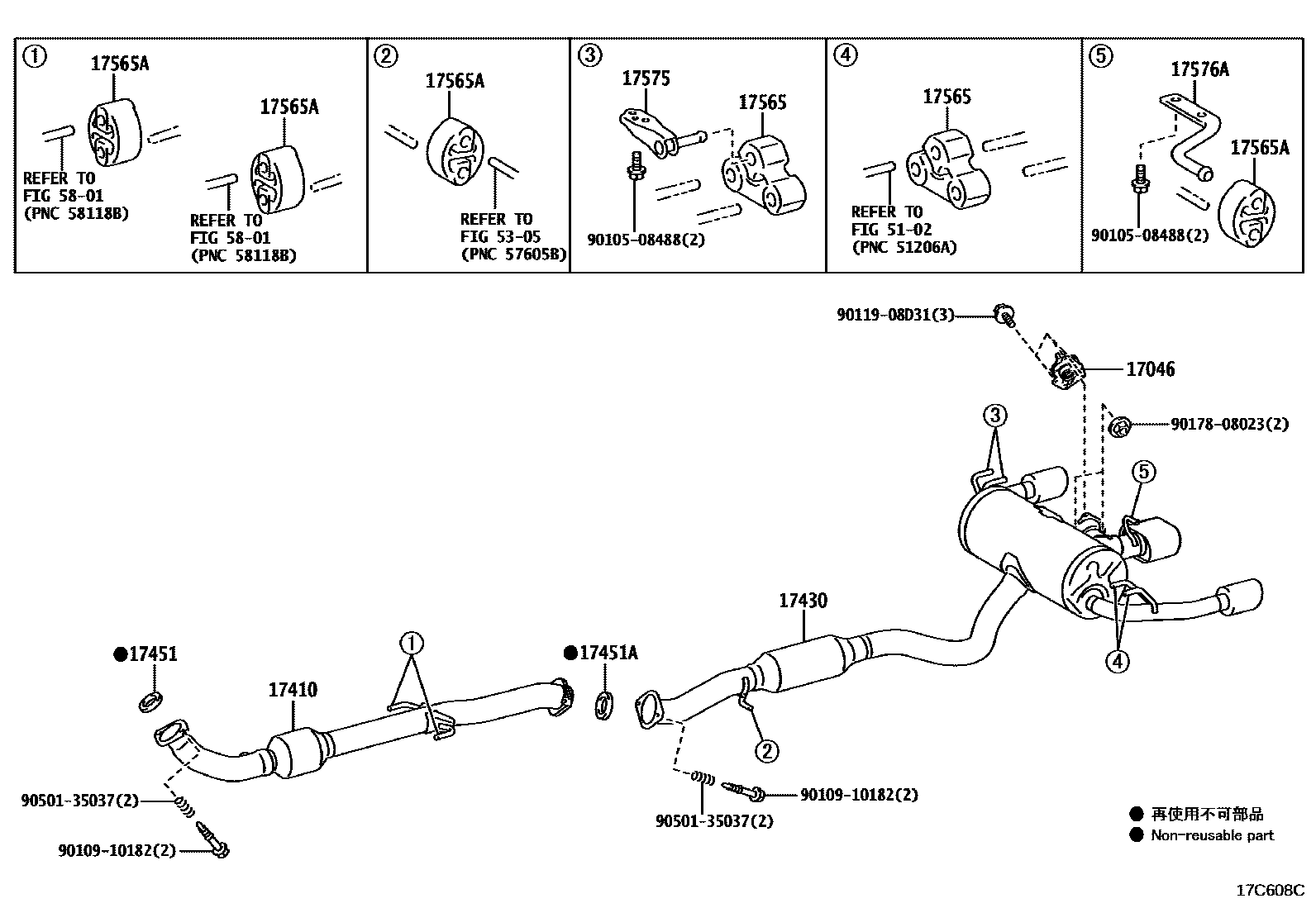

Toyota GR COROLLA — EXHAUST PIPE
17046ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL
17410PIPE ASSY, EXHAUST, FRONT
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
5102
5305
5801
9010508488
9010910182
9011908D31
9017808023
9050135037
17 parts on this diagram · 1 diagram in section
