Toyota GR COROLLA — ENGINE OVERHAUL GASKET KIT

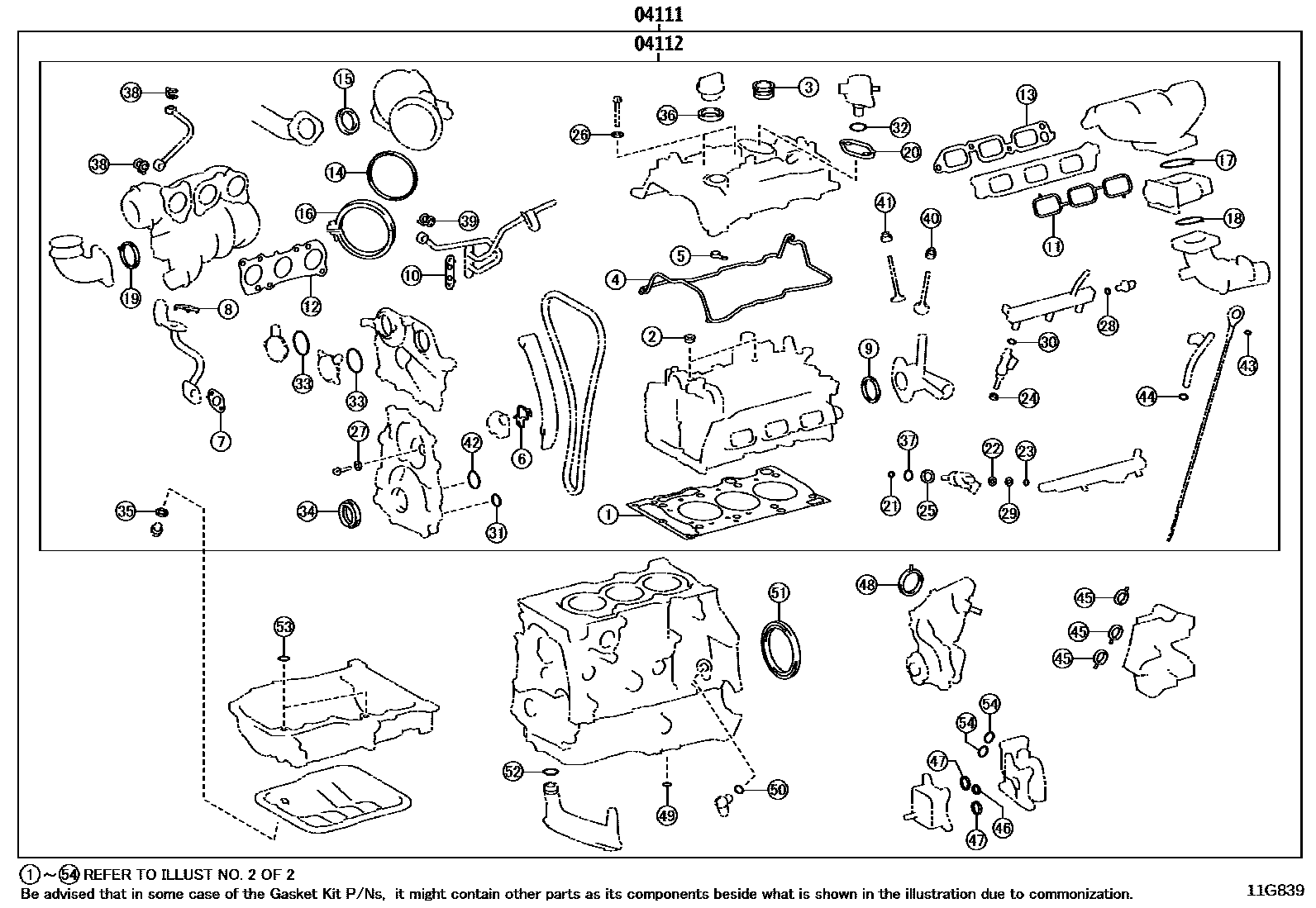

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-18012i¥30,400202210-202409

main04111-18013i¥27,600202409

04112GASKET KIT, ENGINE VALVE GRIND

main04112-18012i¥26,100202210-202409

main04112-18013i¥23,700202409

2 parts on this diagram · 2 diagrams in section
