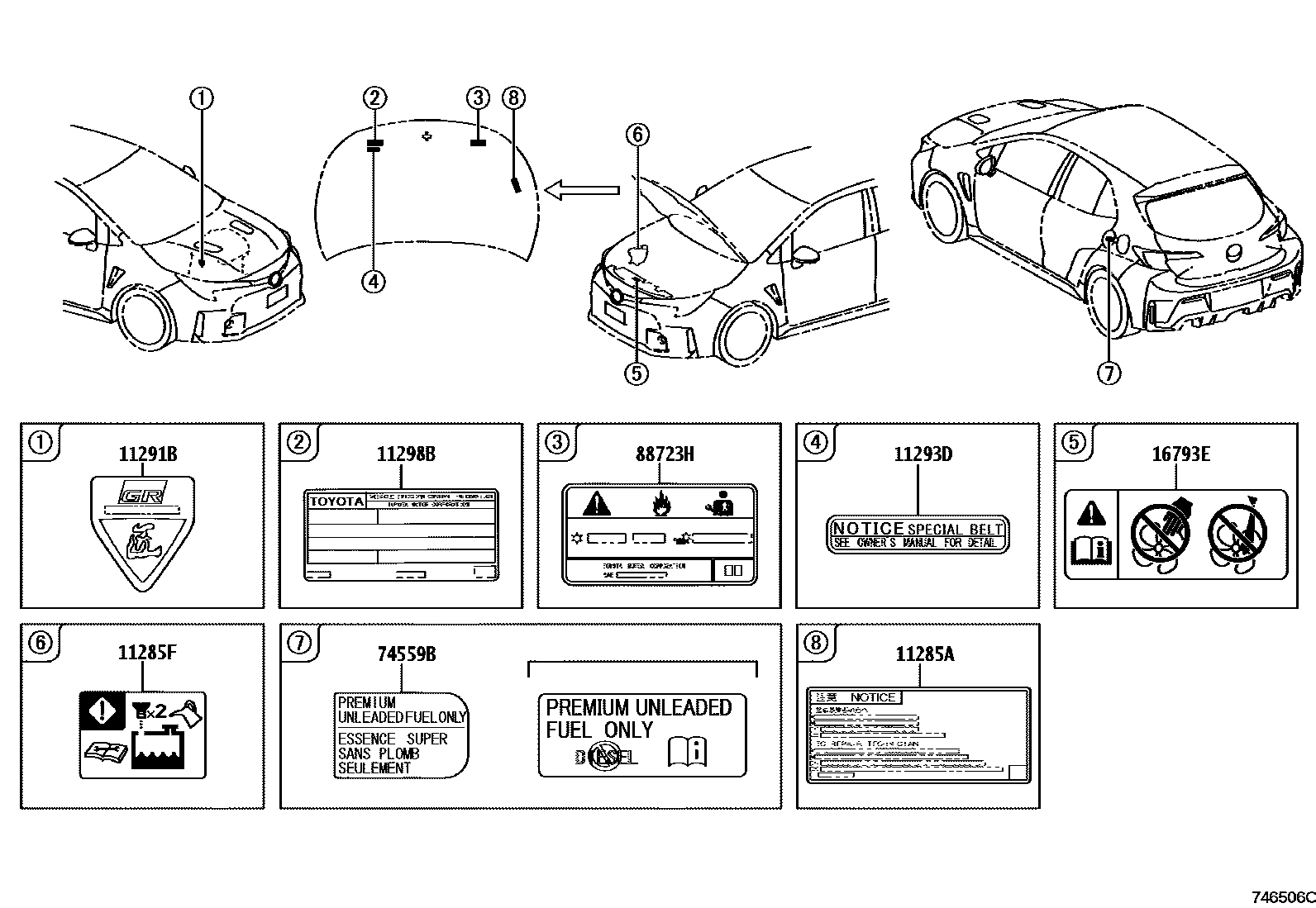

Toyota GR COROLLA — CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM & EXTERIOR(1/2) 0002 1EXTERIOR(2/2) & INTERIOR

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-47010iG16EGTS..GZEA14¥180202210-202407

11285FLABEL, COOLANT SYSTEM CAUTION

11291BPLATE, ENGINE NAME

main11291-18030iG16EGTS..GZEA14..05S¥220202210-202401

sub11291-18050¥200

main11291-18050iG16EGTS..GZEA14¥200202402-202409

11293DLABEL, ENGINE CAUTION

main11295-33010iG16EGTS..GZEA14¥250202210-202409

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-18020iG16EGTS..GZEA14..02S202210-202309

main11298-18021iG16EGTS..GZEA14202309-202409

main11298-18022iG16EGTS..GZEA14202409

16793ELABEL, COOLING FAN CAUTION

main16793-36030iG16EGTS..GZEA14..02S¥110202210-202409

74559BLABEL, FUEL INFORMATION

main74559-20110iGZEA14..02S..CND¥120202210-202409

main74559-60030iGZEA14..02S..USA¥50202210-202409

88723HLABEL, COOLER SERVICE CAUTION

main88723-12350iGZEA14202210-202409

8 parts on this diagram · 2 diagrams in section
