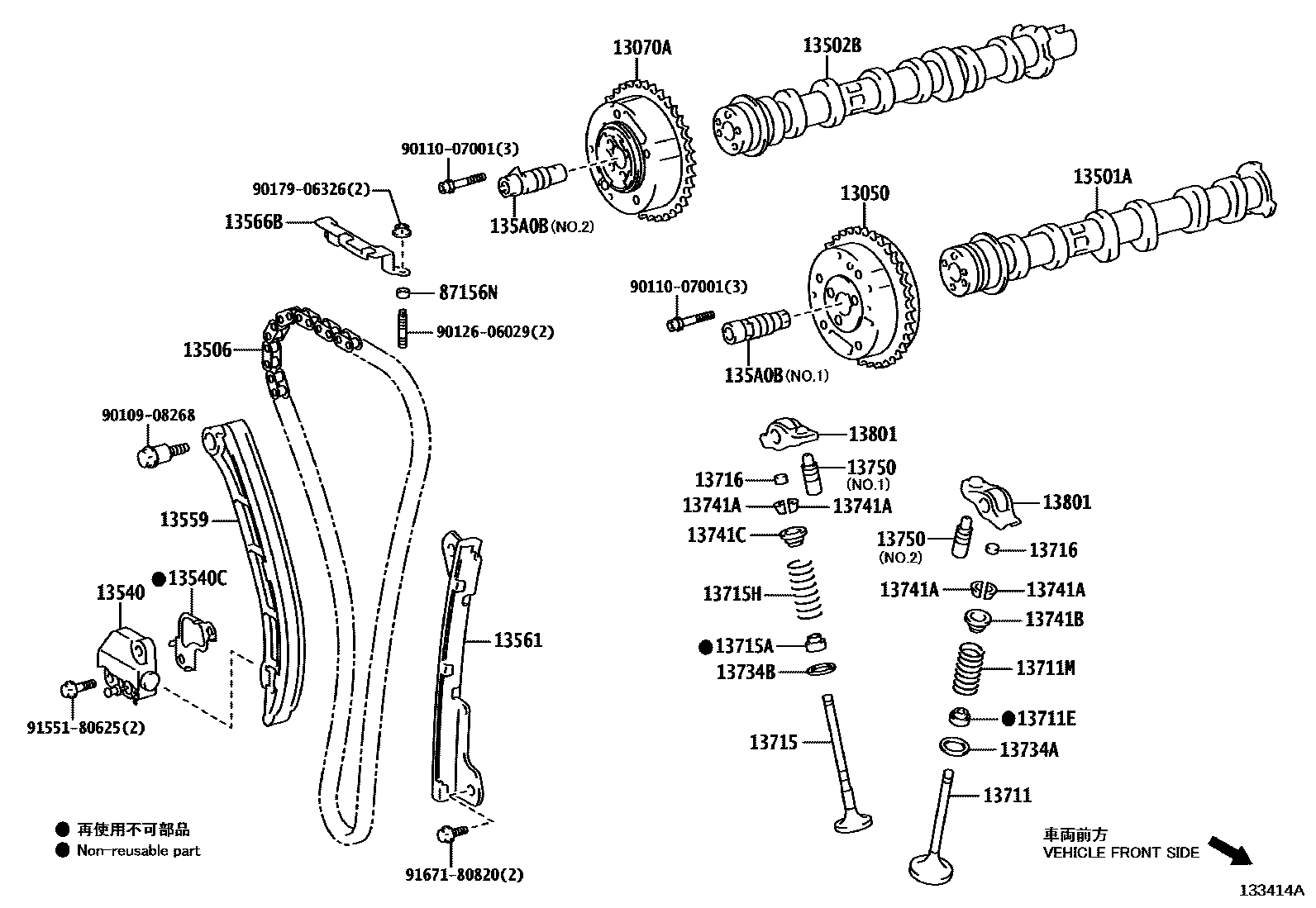

Toyota GR COROLLA — CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
13501ACAMSHAFT SUB-ASSY, INTAKE
13502BCAMSHAFT SUB-ASSY, EXHAUST
13506CHAIN SUB-ASSY
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13566BGUIDE, TIMING CHAIN
135A0BVALVE ASSY, CAMSHAFT TIMING
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
13711VALVE, INTAKE
13711ESEAL, INTAKE VALVE STEM OIL
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
13716CAP, VALVE STEM
13734ASEAT, INTAKE VALVE SPRING
13734BSEAT, EXHAUST VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13741BRETAINER, INTAKE VALVE SPRING
13741CRETAINER, EXHAUST VALVE SPRING
13750ADJUSTER ASSY, VALVE LASH
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
87156NSPACER, DAMPER PLATE
9010908268
9011007001
9012606029
9017906326
9155180625
9167180820
32 parts on this diagram · 1 diagram in section
