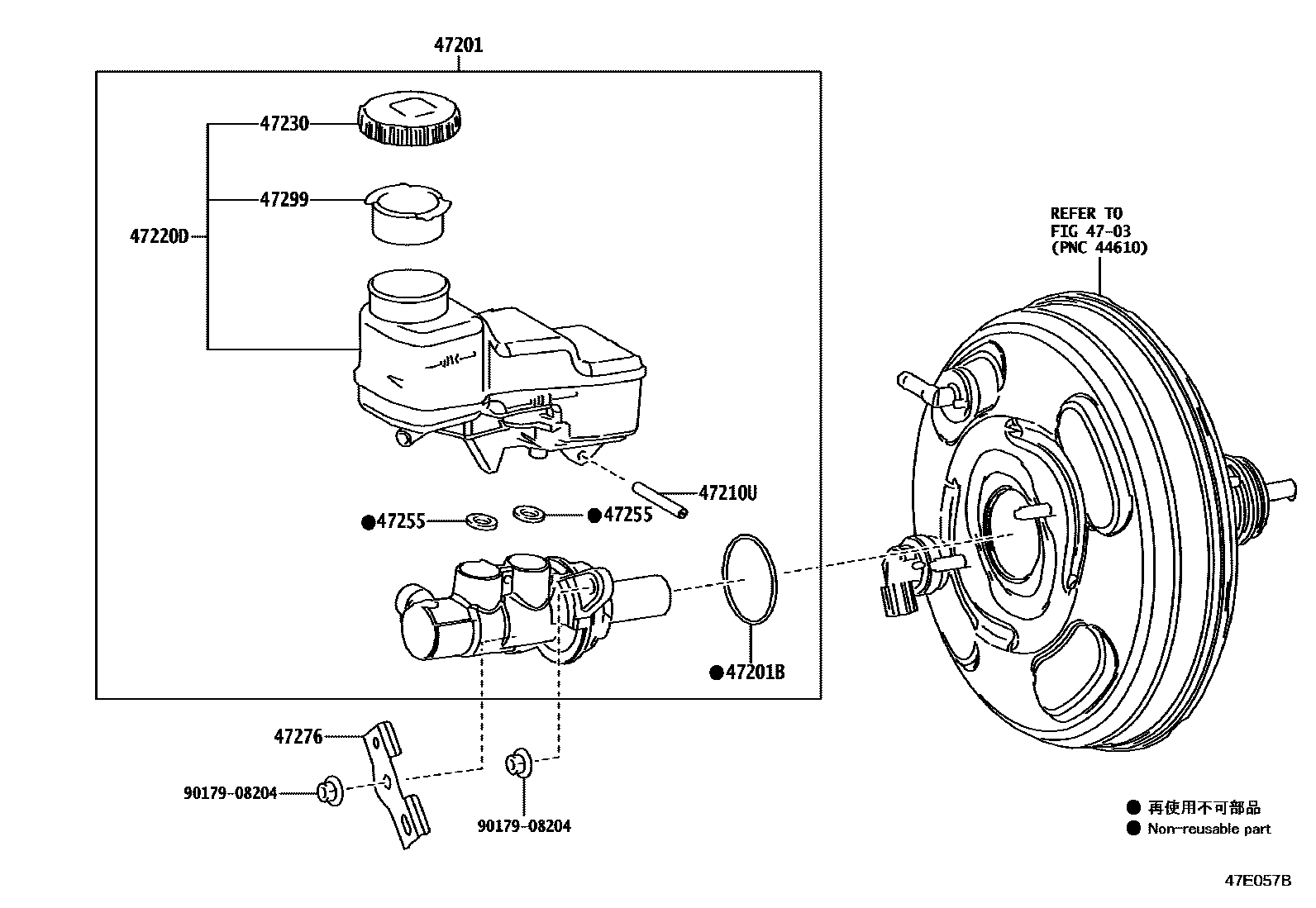

Toyota GR COROLLA — BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-12C80iGZEA14..02S202210-202409

main47201-16520iGZEA14..8FC202409

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGZEA14..02S¥200202210-202409

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iGZEA14¥130202210-202409

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-12320iGZEA14..8FC202409

main47220-12330iGZEA14..05S202210-202409

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iGZEA14¥770202210-202409

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iGZEA14¥360202210-202409

sub90016-AT001¥360

47276BRACKET, BRAKE MASTER CYLINDER

main47276-12050iGZEA14202210-202409

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGZEA14¥140202210-202409

9017908204

main90179-08204¥140

10 parts on this diagram · 1 diagram in section
