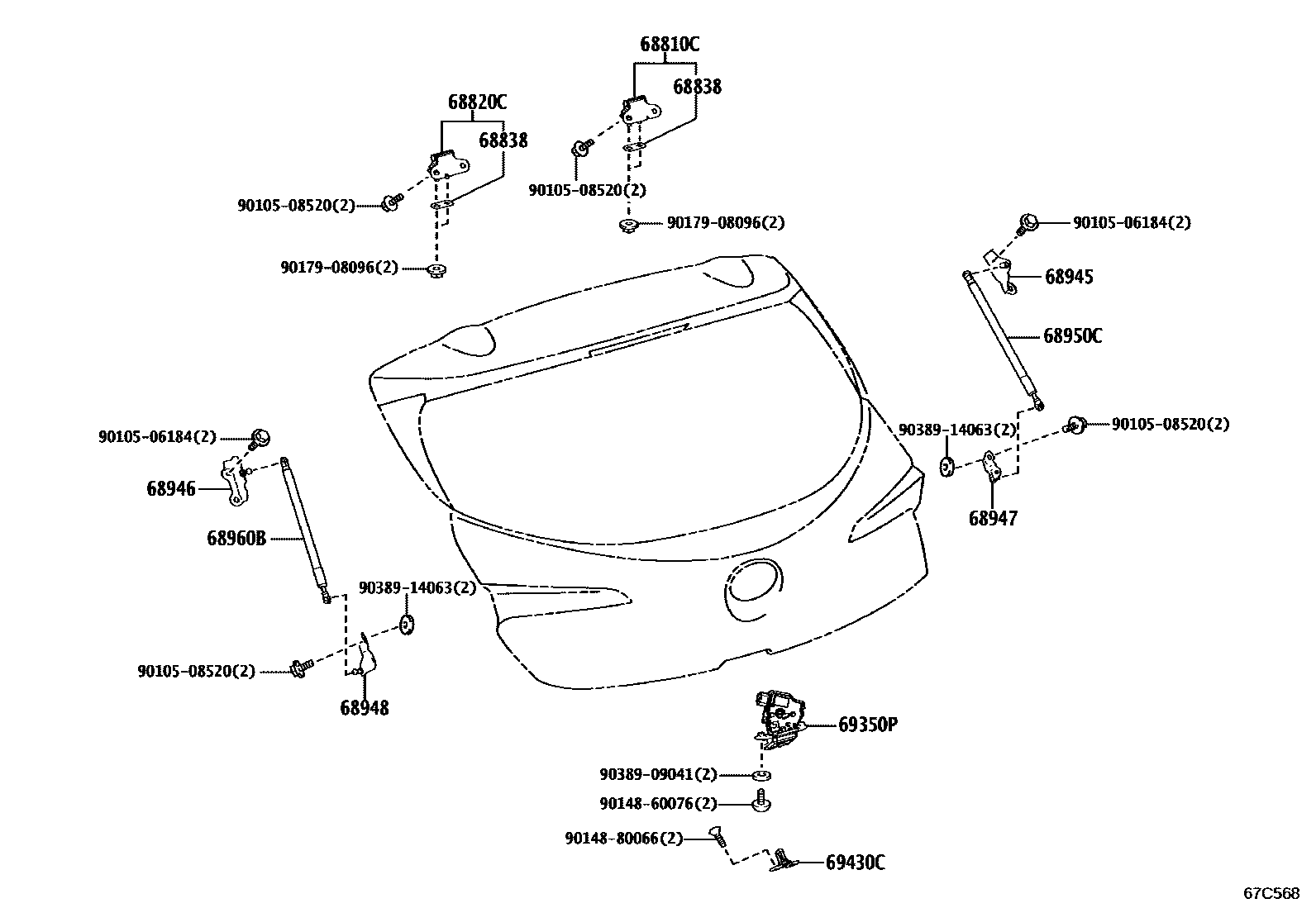

Toyota GR COROLLA — BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-12050iGZEA14¥1,600202210-202409

68820CHINGE ASSY, BACK DOOR, LH

main68820-12030iGZEA14¥1,600202210-202409

68838PAD, BACK DOOR HINGE, NO.1

main68838-47010iGZEA14..02S¥80202210-202409

T=1.0

main68838-47020iGZEA14¥160202210-202409

T=1.5

main68838-47030iGZEA14¥200202210-202409

T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-12080iGZEA14..05S¥590202210-202409

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-12050iGZEA14..02S¥590202210-202409

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-12070iGZEA14¥400202210-202409

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-12070iGZEA14¥400202210-202409

68950CSTAY ASSY, BACK DOOR, RH

main68950-0WE20iGZEA14¥6,200202210-202409

68960BSTAY ASSY, BACK DOOR, LH

main68960-0WE20iGZEA14¥6,200202210-202409

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-13380iGZEA14¥8,800202210-202409

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-52050iGZEA14¥700202210-202409

9010506184

main90105-06184¥70

9010508520

main90105-08520¥100

9014860076

main90148-60076¥60

9014880066

main90148-80066¥60

9017908096

main90179-08096¥110

9038909041

main90389-09041¥100

9038914063

main90389-14063¥170

18 parts on this diagram · 1 diagram in section
