Toyota GR COROLLA — WATER PUMP

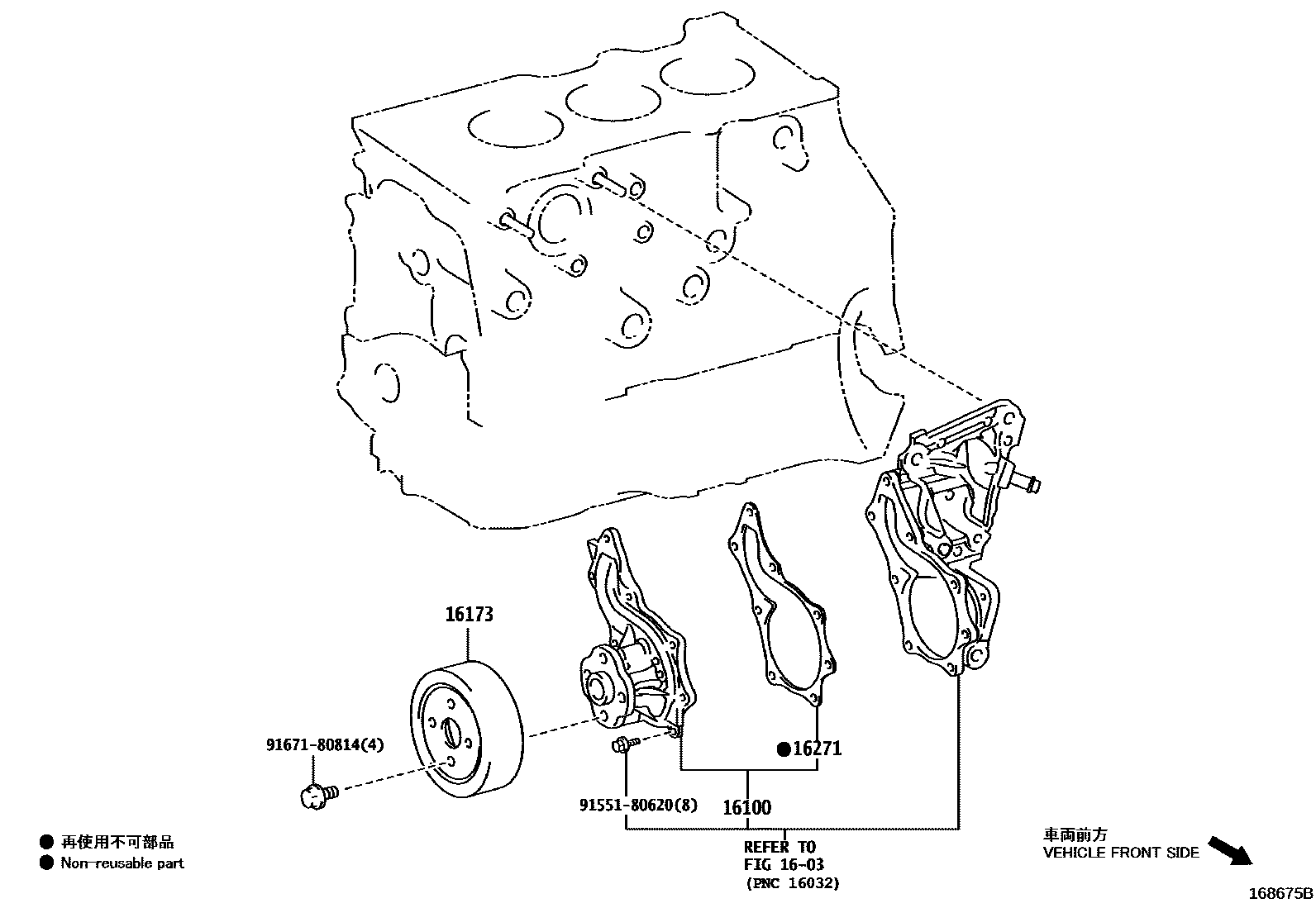

Parts diagram

1603

16100PUMP ASSY, ENGINE WATER

main16100-19385i¥9,600202212-202304

main16100-19385i¥9,600202212-202409

16173PULLEY, WATER PUMP

main16173-18010i¥2,250202212-202304

main16173-18010i¥2,250202212-202409

16271GASKET, WATER PUMP

main16271-18010i¥600202212-202304

main16271-18010i¥600202212-202409

9155180620

main91551-80620¥60

9167180814

main91671-80814¥80

6 parts on this diagram · 1 diagram in section
