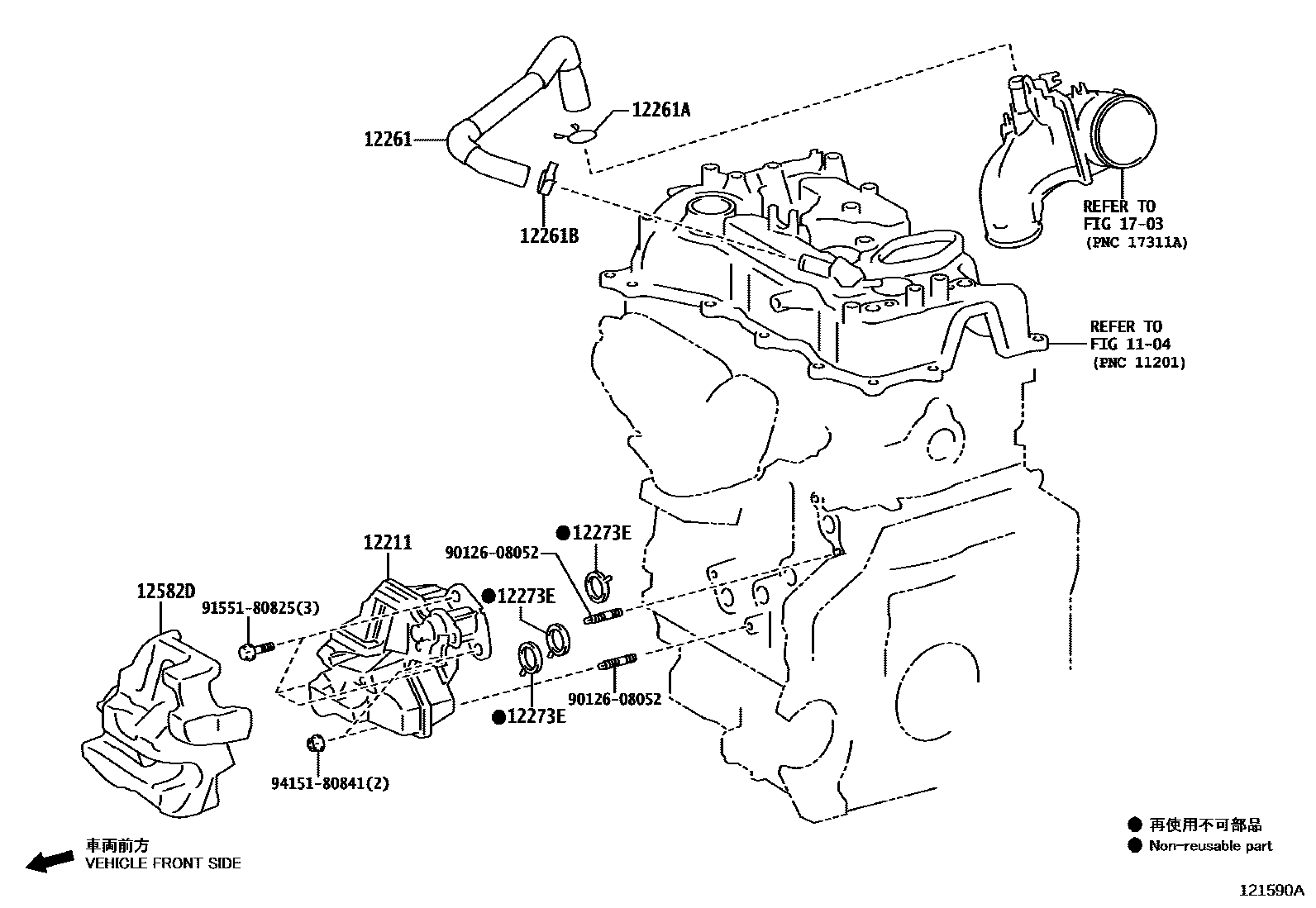

Toyota GR COROLLA — VENTILATION HOSE
1104
12211CASE, VENTILATION, NO.1
12261HOSE, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
12261BCLIP OR CLAMP(FOR VENTILATION HOSE)
12273EGASKET(FOR VENTILATION CASE)
12582DINSULATOR, CYLINDER BLOCK, NO.2
1703
9012608052
9155180825
9415180841
11 parts on this diagram · 2 diagrams in section
