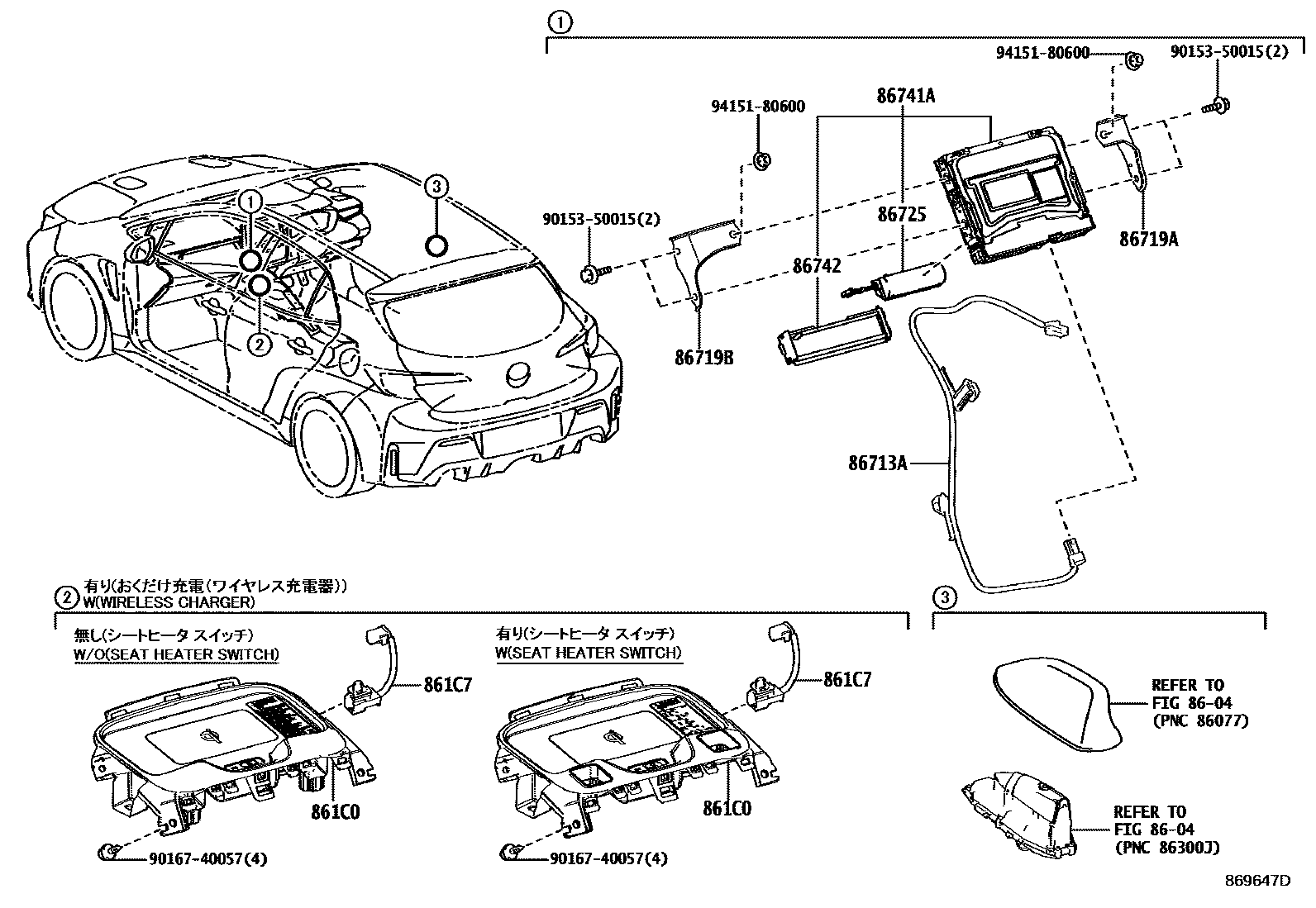

Toyota GR COROLLA — TELEPHONE & MAYDAY

8604

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-12040¥34,800

main861C0-12041¥31,600

main861C0-12050¥34,800

main861C0-12051¥31,600

861C7CORD, MOBILE WIRELESS CHARGER

main861C7-12010¥740

86713AWIRE, TELEPHONE COMPUTER, (TO TRANSCEIVER)

main86713-12100iGZEA14¥5,200202212-202409

86719ABRACKET, TELEPHONE NO.1

main86719-12010iGZEA14¥330202212-202409

86719BBRACKET, TELEPHONE NO.2

main86719-12020iGZEA14¥330202212-202409

86725BATTERY, MOBILEPHONE

main86725-78020iGZEA14¥7,500202212-202409

86741ATRANSCEIVER, TELEMATICS

main86741-42220iGZEA14¥38,000202212-202401

sub86741-42221¥34,500

main86741-42221iGZEA14¥34,500202402-202409

86742COVER, TRANSCEIVER

main86742-26010iGZEA14¥720202212-202409

9015350015

main90153-50015¥60

9016740057

main90167-40057¥60

9415180600

main94151-80600¥60

12 parts on this diagram · 1 diagram in section
